VS-PNRJ45R-OE-93K/3,0

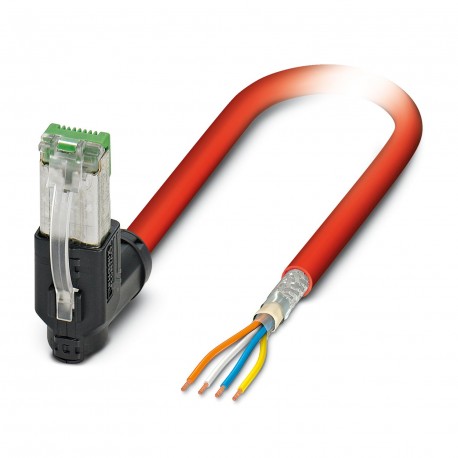

VS-PNRJ45R-OE-93K/3,0 1405001 PHOENIX CONTACT Bus system cable VS-PNRJ45R-OE-93K/3,0 1405001
$0.00USD
3142 kwenye hisa
Vipimo Muhimu
:-40 °C ... 70 °C (cable, fixed installation)
Aina:free cable end
Imehifadhiwa:yes
Kulinda:Tinned copper braided shield
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| -40 °C ... 70 °C (cable, fixed installation) | |
| Aina | free cable end |
| Imehifadhiwa | yes |
| Kulinda | Tinned copper braided shield |
| Aina ya kebo | Sercos III |
| Aina ya vitambuzi | Sercos |
| Urefu wa kebo | 3.00 m |
| Uzito wa kebo | 68 kg/km |
| Aina ya bidhaa | Data cable preassembled |
| Mtindo wa UL AWM | 21694 (60 °C / 600 V) |
| Mzunguko wa jumla | Star quad |
| Muda wa utekelezaji wa ishara | 5.3 ns/m |
| Kizuizi cha wimbi | 100 Ω ±15 Ω (at 100 MHz) |
| Mstari wa ishara wa AWG | 22 |
| Muundo wa kebo | 1x4xAWG22/7, SF/TQ |
| Upinzani wa kebo | ≤ 120 Ω/km |
| Upinzani wa moto | according to UL 1685 (CSA FT 4) |
| Upinzani mwingine | UV resistant (according to UL 1581, Section 1200) |
| Upinzani dhidi ya mafuta | Resistant to oil to a limited extent |
| Nyenzo ya kondakta | Tin-plated Cu litz wires |
| Waya moja, rangi | white, yellow, blue, orange |
| Kasi ya upitishaji | 100 Mbps |
| Upinzani wa kuunganisha | ≤ 20.00 mΩ/m (at 10 Hz) |
| Kiwango cha uchafuzi wa mazingira | 1 |
| Mchoro wa vipimo | |
| Idadi ya nafasi | 4 |
| Njia ya maambukizi | Copper |
| Kiwango cha ulinzi | IP20 |
| Aina/kategoria ya ishara | Sercos CAT5 (IEC 11801), 100 Mbps |
| Volti iliyokadiriwa (III/3) | 72 V (DC) |
| Ala ya nje, rangi | signal red RAL 3020 |
| Nyenzo, ala ya ndani | PVC |
| Volti ya kawaida, kebo | 600 V |
| Ala ya nje, nyenzo | PVC |
| Kiini/Kiini cha volteji cha jaribio | 2000 V (50 Hz, 1 min.) |
| Aina ya ngao ya jozi | Aluminum-lined polyester foil |
| Sehemu ya msalaba ya kondakta | 4x 0.34 mm² |
| Kipenyo cha kebo ya nje | 6.50 mm ±0.2 mm |
| Unene, ala ya nje | approx. 0.90 mm |
| Uzuiaji wa waya wa nyenzo | PE |
| Kiini/Ngao ya Volti ya Jaribio | 2000.00 V (50 Hz, 1 min.) |
| Aina ya kebo (kifupisho) | 93K |
| Upinzani wa insulation ya kebo | ≥ 0.5 GΩ*km |
| Kipenyo cha waya ikijumuisha insulation | approx. 1.55 mm |
| Halijoto ya mazingira (uendeshaji) | -40 °C ... 70 °C (Cable, flexible installation) |
| Mstari wa ishara ya muundo wa kondakta | 7x 0.25 mm |
| Nguvu ya kuingiza kwa kila mguso wa ishara | 30.00 N |
| Nguvu ya uchimbaji kwa kila mguso wa ishara | 50 N |
| Ukadiriaji wa kuwaka kulingana na UL 94 | V0 |
| Kiwango cha chini cha kuinama, usakinishaji usiobadilika | 3 x D |
| Kiwango cha chini cha kuinama, usakinishaji rahisi | 7 x D |
Maelezo ya Bidhaa
Sercos III patch cable, shielded, star quadrage, flexible AWG 22 (7 wires), RAL 3020 (traffic red), RJ45/IP20 male connector, angled, to open cable end, angled, length: 3 m
