VS-MSDS-OE-93G-LI/2,0

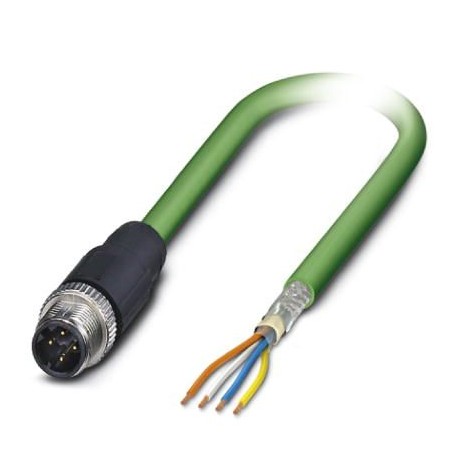

VS-MSDS-OE-93G-LI/2,0 1419151 PHOENIX CONTACT Bus system cable
$0.00USD
4925 kwenye hisa
Vipimo Muhimu
GTIN:4046356540759
Dokezo:Made to Order (non-returnable)
(Kebo):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Ufunguo wa kuagiza:1419151
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4046356540759 |
| Dokezo | Made to Order (non-returnable) |
| (Kebo) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Ufunguo wa kuagiza | 1419151 |
| Ukurasa wa katalogi | Page 314 (PC-2011) |
| Kitengo cha kufungasha | 1 pc |
| (Vipimo) | -25 °C ... 70 °C (cable, flexible installation) |
| Nchi ya asili | PL (Poland) |
| RoHS ya China (Kebo) | Environmentally Friendly Use Period = 50 |
| REAch SVHC (Kebo) | Lead 7439-92-1 |
| Nambari ya ushuru maalum | 85444290 |
| (Hali ya mazingira) | 60 V DC |
| Aina ya kichwa (Data ya jumla) | Plug straight M12 |
| (Viwango na Kanuni) | -40 °C ... 70 °C (cable, flexible installation) |
| Kiwango cha ulinzi (Vipimo) | IP65 |
| Aina ya kichwa (Tabia kichwa 1) | free cable end |
| Volti iliyokadiriwa (Hali ya mazingira) | 48 V AC |
| Uzito kwa Kipande (bila kujumuisha upakiaji) | 160.000 g |
| Nyenzo ya mguso (Hali ya mazingira) | CuSn |
| Urefu wa kebo (Data Muhimu ya Biashara) | 2 m |
| Kulinda (Viwango na Kanuni) | Aluminum-coated foil, tinned copper braided shield |
| Aina ya kebo (Viwango na Kanuni) | PROFINET PVC stranded CAT5 |
| Upunguzaji (Viwango na Kanuni) | 2.1 dB (with 1 MHz) |
| Rangi za waya (Viwango na Kanuni) | White, yellow, blue, orange |
| Uzito wa kebo (Viwango na Kanuni) | 67 kg/km |
| Kiwango cha uchafuzi wa mazingira (Hali ya mazingira) | 3 |
| Idadi ya nafasi (Hali ya mazingira) | 4 |
| Kasi ya mawimbi (Viwango na Kanuni) | 0.66 c |
| Mtindo wa UL AWM (Viwango na Kanuni) | 21694 |
| Mzunguko wa jumla (Viwango na Kanuni) | Star quad |
| Kategoria ya volteji kupita kiasi (Hali za mazingira) | II |
| Aina/kategoria ya ishara (Hali za mazingira) | EtherCAT®CAT5 (IEC 11801), 100 Mbps |
| Muda wa utekelezaji wa ishara (Viwango na Kanuni) | 5.3 ns/m |
| Kizuizi cha wimbi (Viwango na Kanuni) | 100 Ω ±15 Ω (at 100 MHz) |
| Mstari wa ishara wa AWG (Viwango na Kanuni) | 22 |
| Muundo wa kebo (Viwango na Kanuni) | 1x4xAWG22/7; SF/TQ |
| Upinzani wa kitanzi (Viwango na Kanuni) | ≤ 120.00 Ω/km |
| Mkondo uliokadiriwa kwa 40°C (Hali ya mazingira) | 4 A |
| Halijoto ya mazingira (uendeshaji) (Vipimo) | -25 °C ... 70 °C (cable, fixed installation) |
| Upinzani wa moto (Viwango na Kanuni) | according to UL 1685 (CSA FT 4) |
| Upinzani mwingine (Viwango na Kanuni) | UV resistant According to UL 1581, Section 1200 |
| Nyenzo ya mtoa huduma ya mawasiliano (Hali ya mazingira) | PA 6.6 |
| Nyenzo ya uso iliyogusana (Hali ya mazingira) | Ni/Au |
| Upinzani dhidi ya mafuta (Viwango na Kanuni) | Resistant to oil to a limited extent |
| Nyenzo ya kondakta (Viwango na Kanuni) | Tin-plated Cu litz wires |
| Upinzani wa kuunganisha (Viwango na Kanuni) | ≤ 20.00 mΩ/m (at 10 MHz) |
| Aina/kategoria ya ishara (Viwango na Kanuni) | PROFINET CAT5 (IEC 11801), 100 Mbps |
| Upinzani wa insulation (Viwango na Kanuni) | ≥ 500 MΩ*km |
| Ala ya nje, rangi (Viwango na Kanuni) | green RAL 6018 |
| Nyenzo, ala ya ndani (Viwango na Kanuni) | PVC |
| Volti ya kawaida, kebo (Viwango na Kanuni) | 600 V |
| Unene wa ala ya nje (Viwango na Kanuni) | approx. 0.9 mm |
| Ala ya nje, nyenzo (Viwango na Kanuni) | PVC |
| Kiini/Kiini cha volteji cha majaribio (Viwango na Kanuni) | 2000 V (50 Hz, 1 min.) |
| Sehemu ya msalaba ya kondakta (Viwango na Kanuni) | 4x 0.34 mm² |
| Kifuniko cha ngao ya macho (Viwango na Kanuni) | 85 % |
| Kiini/Ngao ya Volti ya Jaribio (Viwango na Kanuni) | 2000 V (50 Hz, 1 min.) |
| Aina ya kebo (kifupisho) (Viwango na Kanuni) | 93B |
| Kipenyo cha kebo ya nje D (Viwango na Kanuni) | 6.5 mm ±0.2 mm |
| Insulation ya kondakta wa nyenzo (Viwango na Kanuni) | PE |
| Halijoto ya mazingira (uendeshaji) (Viwango na Kanuni) | -40 °C ... 70 °C (cable, fixed installation) |
| Mstari wa ishara ya muundo wa kondakta (Viwango na Kanuni) | 7x 0.25 mm |
| Halijoto ya kawaida (usakinishaji) (Viwango na Kanuni) | -20 °C ... 60 °C |
| Kipenyo cha msingi ikijumuisha insulation (Viwango na Kanuni) | 1.55 mm |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Kichwa cha Sifa 2) | V0 |
| Upunguzaji wa mazungumzo ya karibu (INAYOFUATA) (Viwango na Kanuni) | 80 dB (with 1 MHz) |
| Halijoto ya kawaida (uhifadhi/usafiri) (Viwango na Kanuni) | -50 °C ... 70 °C |
| Kiwango cha chini cha kuinama, usakinishaji usiobadilika (Viwango na Kanuni) | 3 x D |
| Kiwango cha chini cha kuinama, usakinishaji unaonyumbulika (Viwango na Kanuni) | 7 x D |
Maelezo ya Bidhaa
More details
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
