VS-M12MS-M12MS-94H-HYB/5,0 SCO

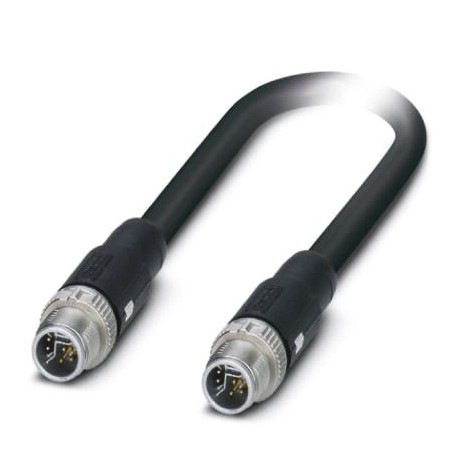

VS-M12MS-M12MS-94H-HYB/5,0 SCO 1402428 PHOENIX CONTACT Hybrid cable
$0.00USD
3994 kwenye hisa
Vipimo Muhimu
GTIN:4046356615952
Dokezo:Made to Order (non-returnable)
(Kebo):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Ufunguo wa kuagiza:1402428
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4046356615952 |
| Dokezo | Made to Order (non-returnable) |
| (Kebo) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Ufunguo wa kuagiza | 1402428 |
| Ukurasa wa katalogi | Page 323 (PC-2011) |
| Kitengo cha kufungasha | 1 pc |
| (Vipimo) | IP67 |
| (Takwimu za jumla) | Zinc die-cast, nickel-plated (Screw connection) |
| Nchi ya asili | PL (Poland) |
| RoHS ya China (Kebo) | Environmentally Friendly Use Period = 50 |
| REAch SVHC (Kebo) | Lead 7439-92-1 |
| Rangi (Data ya jumla) | black |
| Nambari ya ushuru maalum | 85444210 |
| (Hali ya mazingira) | 0.5 A (Data) |
| Usimbaji (Data ya jumla) | Y (Hybrid) |
| Torque (Data ya jumla) | 0.4 Nm |
| Imehifadhiwa (Data ya jumla) | yes |
| Aina ya kichwa (Data ya jumla) | Plug straight M12 SPEEDCON / IP67 |
| (Viwango na Kanuni) | -30 °C ... 70 °C (cable, flexible installation) |
| Kiwango cha ulinzi (Vipimo) | IP65 |
| Volti iliyokadiriwa (Hali ya mazingira) | 30 V (Power and data) |
| Nyenzo (kipengele) (Data ya jumla) | CuZn (Contact) |
| Upinzani wa insulation (Data ya jumla) | ≥ 100 MΩ |
| Uzito kwa Kipande (bila kujumuisha upakiaji) | 484.700 g |
| Urefu wa kebo (Data Muhimu ya Biashara) | 5 m |
| Kulinda (Viwango na Kanuni) | Tinned copper braided shield |
| Aina ya kebo (Viwango na Kanuni) | Ethernet hybrid |
| Upunguzaji (Viwango na Kanuni) | 6 dB (at 4 МHz) |
| Rangi za waya (Viwango na Kanuni) | White/orange, orange, white/green, green, white, blue, brown, black |
| Kuongeza Kasi (Viwango na Kanuni) | 3 m/s² |
| Uzito wa kebo (Viwango na Kanuni) | 87 kg/km |
| Kiwango cha uchafuzi wa mazingira (Hali ya mazingira) | 2 |
| Haina Halojeni (Viwango na Kanuni) | according to IEC 60754 |
| Idadi ya nafasi (Hali ya mazingira) | 8 |
| Mtindo wa UL AWM (Viwango na Kanuni) | 20963 (80°C/30 V) |
| Mzunguko wa jumla (Viwango na Kanuni) | 1 star quad and 4 wires with 2 fillers |
| Aina/kategoria ya ishara (Hali za mazingira) | Ethernet hybrid CAT5 (IEC 11801), 100 Mbps |
| Mizunguko ya kuingiza/kutoa (Data ya jumla) | ≥ 100 |
| Kizuizi cha wimbi (Viwango na Kanuni) | 100 Ω ±15 Ω (4 MHz ... 100 MHz) |
| Mstari wa ishara wa AWG (Viwango na Kanuni) | 26 |
| Muundo wa kebo (Viwango na Kanuni) | 1x4xAWG26+1x4xAWG20 |
| Upinzani wa kitanzi (Viwango na Kanuni) | ≤ 280.00 Ω/km (Data) |
| Mkondo uliokadiriwa kwa 40°C (Hali ya mazingira) | 6 A (Power) |
| Njia ya kupita (Viwango na Kanuni) | 4.5 m |
| Kiwango cha kupita (Viwango na Kanuni) | 3 m/s |
| Ugavi wa umeme wa AWG (Viwango na Kanuni) | 20 |
| Upinzani wa moto (Viwango na Kanuni) | in acc. with UL 1581, section 1061 |
| Upinzani mwingine (Viwango na Kanuni) | Low adhesion |
| Upinzani dhidi ya mafuta (Viwango na Kanuni) | according to IEC 60811-2-1 |
| Halijoto ya mazingira (uendeshaji) (Data ya jumla) | -25 °C ... 90 °C |
| Nyenzo ya kondakta (Viwango na Kanuni) | Bare Cu litz wires |
| Upunguzaji wa ngao (Viwango na Kanuni) | ≥ 80 dB (30 MHz ... 125 MHz) |
| Mali maalum (Viwango na Kanuni) | Free of substances which would hinder coating with paint or varnish |
| Uwezo wa kufanya kazi (Viwango na Kanuni) | nom. 50 nF (per kilometer) |
| Aina/kategoria ya ishara (Viwango na Kanuni) | Ethernet hybrid CAT5 (IEC 11801), 100 Mbps |
| Nguvu ya mvutano GRP (Viwango na Kanuni) | 70 N (in accordance with DIN EN 50565-1 for flexible installation) |
| Upinzani wa insulation (Viwango na Kanuni) | ≥ 5 GΩ*km |
| Uzuiaji tofauti (Viwango na Kanuni) | 100 Ω ±5 % (at 100 MHz) |
| Ala ya nje, rangi (Viwango na Kanuni) | black RAL 9005 |
| Volti ya kawaida, kebo (Viwango na Kanuni) | ≤ 50 V (Peak value, not for high-power applications) |
| Ala ya nje, nyenzo (Viwango na Kanuni) | PUR |
| Kiini/Kiini cha volteji cha majaribio (Viwango na Kanuni) | 1500 V (50 Hz, 1 min.) |
| Sehemu ya msalaba ya kondakta (Viwango na Kanuni) | 4x 0.15 mm² (Data) |
| Kifuniko cha ngao ya macho (Viwango na Kanuni) | 85 % |
| Idadi ya mizunguko ya kupinda (Viwango na Kanuni) | 2000000 |
| Kiini/Ngao ya Volti ya Jaribio (Viwango na Kanuni) | 1500 V (50 Hz, 1 min.) |
| Aina ya kebo (kifupisho) (Viwango na Kanuni) | 94H |
| Kipenyo cha kebo ya nje D (Viwango na Kanuni) | 7.6 mm ±0.2 mm |
| Idadi ya nafasi (muundo wa kiunganishi cha pini) (Data ya jumla) | 8 (4+4) |
| Insulation ya kondakta wa nyenzo (Viwango na Kanuni) | PP (Data) |
| Halijoto ya mazingira (uendeshaji) (Viwango na Kanuni) | -40 °C ... 90 °C (cable, fixed installation) |
| Mstari wa ishara ya muundo wa kondakta (Viwango na Kanuni) | 19x 0.10 mm |
| Kipenyo cha msingi ikijumuisha insulation (Viwango na Kanuni) | 1.05 mm (Data) |
| Muundo wa kondakta, usambazaji wa volteji (Viwango na Kanuni) | 19x 0.20 mm |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Kichwa cha Sifa 1) | V0 |
| Upunguzaji wa mazungumzo ya karibu (INAYOFUATA) (Viwango na Kanuni) | 56.3 dB (at 4 МHz) |
| Kiwango cha chini cha kuinama, usakinishaji usiobadilika (Viwango na Kanuni) | 5 x D |
| Kiwango cha chini cha kuinama, usakinishaji unaonyumbulika (Viwango na Kanuni) | 10 x D |
| Kiwango cha chini cha radius ya kupinda, matumizi ya mnyororo wa kuburuta (Viwango na Kanuni) | 10 x D |
