VS-FSBPYS-OE-94H/3,0 SCO

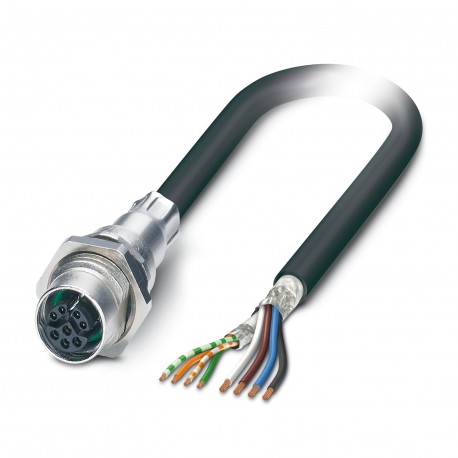

VS-FSBPYS-OE-94H/3,0 SCO 1412494 PHOENIX CONTACT Flush-type socket VS-FSBPYS-OE-94H/3,0 SCO 1412494
$0.00USD
4860 kwenye hisa
Vipimo Muhimu
:50 V DC (Power and data)
Usimbaji:Y
Nyenzo:Zinc die-cast (nickel-plated)
Imehifadhiwa:yes
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| 50 V DC (Power and data) | |
| Usimbaji | Y |
| Nyenzo | Zinc die-cast (nickel-plated) |
| Imehifadhiwa | yes |
| Aina ya kebo | Ethernet hybrid |
| Urefu wa kebo | 3 m |
| Aina ya bidhaa | Circular connectors (device side) |
| Aina ya kupachika | Rear mounting |
| Nyenzo ya kuziba | FKM |
| Kizuizi cha wimbi | 100 Ω |
| Mstari wa ishara wa AWG | 26 |
| Muundo wa kebo | 2x2xAWG26 + 1x4xAWG20 |
| Ugavi wa umeme wa AWG | 20 |
| Nyenzo ya mawasiliano | CuZn |
| Nyenzo ya kondakta | Bare Cu litz wires |
| Upinzani wa mguso | ≤ 3 mΩ |
| Mkondo wa nominella IN | 6 A (Power) |
| Volti ya kawaida ya Umoja wa Mataifa | 48 V AC (Power and data) |
| Maelezo kuhusu uendeshaji | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
| Waya moja, rangi | Ethernet: white/orange-orange, white/green-greenPower: white, blue, brown, black |
| Sehemu ya msalaba wa kebo | 0.15 mm² |
| Kiwango cha uchafuzi wa mazingira | 3 |
| Idadi ya nafasi | 8 |
| Volti ya kuongezeka iliyokadiriwa | 0.8 kV |
| Njia ya maambukizi | Copper |
| Kiwango cha ulinzi | IP67 |
| Kategoria ya volteji nyingi | III |
| Upinzani wa insulation | ≥ 100 MΩ |
| Ala ya nje, rangi | black RAL 9005 |
| Ala ya nje, nyenzo | PUR mixture halogen-free |
| Kiini/Kiini cha volteji cha jaribio | 1.5 kV AC (Core - core) |
| Kipenyo cha kebo ya nje | 7.60 mm |
| Nyenzo za mawasiliano | PPA |
| Nyenzo ya uso wa mguso | Au |
| Kiini/Ngao ya Volti ya Jaribio | 1.50 kV AC (Line-shield) |
| Mizunguko ya kuingiza/kutoa | ≥ 100 |
| Kipenyo cha waya ikijumuisha insulation | 1.05 mm |
| Halijoto ya mazingira (uendeshaji) | -40 °C ... 90 °C (fixed routing) |
| Mstari wa ishara ya muundo wa kondakta | 4x 1.05 mm |
| Muundo wa kondakta, usambazaji wa volteji | 4x 1.40 mm |
| Ukadiriaji wa kuwaka kulingana na UL 94 | V0 |
| Sifa za upitishaji (kitengo) | CAT5 (IEC 11801:2002) |
| Radi ndogo zaidi ya kupinda, usakinishaji unaoweza kusongeshwa | min. 110 mm |
Maelezo ya Bidhaa
Hybrid flush-type socket, Ethernet, 8-pos., M12-SPEEDCON, rear/screw mounting with M16 thread, 360° shield connection with connected shielded hybrid cable
