VIP/S/MC/BASE 17-24/L/EX

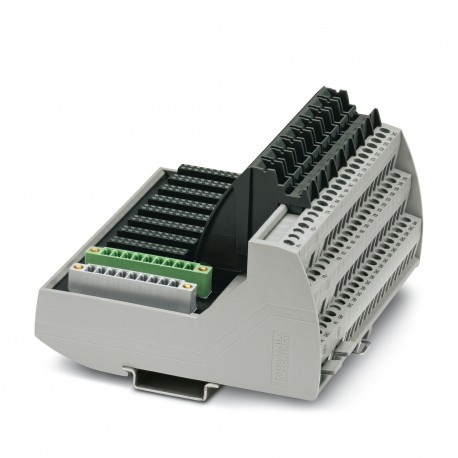

VIP/S/MC/BASE 17-24/L/EX 2907024 PHOENIX CONTACT Base module
$0.00USD
3032 kwenye hisa
Vipimo Muhimu
:230 V AC (P2 and field terminals)
ATEX:Sira 16ATEX4260X; Ex II 3GEx nA ic IIC T4 Gc; Ex II 3G Ex nA ic IIC T4 GcEx II 3(3)G Ex nA [ic] IIC T4 Gc; Ex II (3)D [Ex ic Dc] IIIC
Rangi:gray (RAL 7042)
Kina:72.2 mm
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| 230 V AC (P2 and field terminals) | |
| ATEX | Sira 16ATEX4260X; Ex II 3GEx nA ic IIC T4 Gc; Ex II 3G Ex nA ic IIC T4 GcEx II 3(3)G Ex nA [ic] IIC T4 Gc; Ex II (3)D [Ex ic Dc] IIIC |
| Rangi | gray (RAL 7042) |
| Kina | 72.2 mm |
| IECEx | IECEx SIR 16.0088XEx nA IIC T4 Gc; Ex nA ic IIC T4 Gc; Ex nA [ic] IIC T4 Gc; [Ex ic Dc] IIICEx nA [ia Ga] IIC T4 Gc; [Ex ia Da] IIIC |
| Upana | 118.1 mm |
| Urefu | 102.7 mm |
| Cheti | Sira 16ATEX4260X |
| Idhini ya FM | Class I, Zone 2, AEx nA ic IIC T4 Gc; AEx nA IIC T4 GcNonincendive: Class I, Div. 2, Groups A, B, C, D T4With connection to Class I, II, and III, Div. 2, Groups A, B, C, D, E, F, G |
| Aina ya bidhaa | Module carrier |
| Uzi wa skrubu | M 3 |
| Uingizaji wa Li | 0 mH |
| Aina ya kupachika | DIN rail mounting |
| Uwezo wa Ci | 0 µF |
| Utambulisho | Ex II 3G |
| Familia ya bidhaa | VIP I/O-Marshalling |
| Onyesho la hali | no |
| Idadi ya njia | 8 |
| Marekebisho ya makala | 10 |
| Ingizo la sasa II | 1 A (per channel) |
| Volti ya kuingiza Ui | 30 V (per channel) |
| Urefu wa kukatwa | 8 mm |
| Mbinu ya muunganisho | Screw connection |
| Nafasi ya kupachika | As desired on 35 mm DIN rail in acc. with EN 60715 |
| Kukaza torque | 0.5 Nm ... 0.6 Nm |
| Idadi ya nafasi | 9 |
| Kiwango cha ulinzi | IP20 |
| Idadi ya miunganisho | 2 |
| Viwango/kanuni | IEC 60664 |
| Onyesho la hali linapatikana | No |
| Mkondo wa juu unaoruhusiwa | 15 A (P1 or P2 terminals) |
| Sehemu ya msalaba ya kondakta AWG | 24 ... 12 |
| Volti ya juu zaidi ya uendeshaji Umax | 30 V DC (P2 and field terminals) |
| Sehemu ngumu ya kondakta | 0.2 mm² ... 4 mm² |
| Jumla ya juu inayoruhusiwa ya mkondo | 15 A (per module) |
| Halijoto ya mazingira (uendeshaji) | -40 °C ... 75 °C |
| Sehemu ya msalaba ya kondakta inayonyumbulika | 0.2 mm² ... 2.5 mm² |
| Muunganisho katika acc. na kiwango cha kawaida | IEC / EN |
| Unyevu unaoruhusiwa (uendeshaji) | 0 % ... 95 % (non-condensing) |
| Halijoto ya kawaida (uhifadhi/usafiri) | -40 °C ... 75 °C |
| Uwezo wa juu zaidi wa kubeba mkondo kwa kila tawi | 3 A (field signal) |
Maelezo ya Bidhaa
Marshalling 8-channel VIP I/O base element for universal use. All connections as screw connection technology. With the COMBICON connector, compatible with the Honeywell C300 RUSIO series. Labeling for
