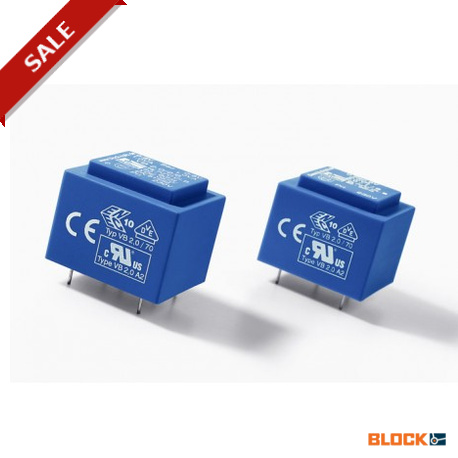

VB 2,0/2/9

General Data Rated input voltage 230 Vac Rated output voltage 6 ‑ 2 x 24 Vac Rated power 0.35 ‑ 3.2 VA Insulation class B Maximum ambient temperature 70 °C (VB 3,2 max. 50 °C) Efficiency up to 58 % Degree of protection IP 00 Advantages Minimum size at high output Inherently short‑circuit proof Also with dual output voltage for series or parallel connection Designed for high ambient temperatures Permanent corrosion protection, high insulation value and maximum electrical reliability thanks to XtraDenseFill resin encapsulation Coil shell in 2‑chamber technology Self‑extinguishing potting material Standards Mains transformerto: VDE 0570 Teil 2‑1, DIN EN 61558‑2‑1, EN 61558‑2‑1, IEC 61558‑2‑1, UL 5085‑1/‑2, CSA 22.2 No.66 Safety isolating transformerto: VDE 0570 Teil 2‑6, DIN EN 61558‑2‑6, EN 61558‑2‑6, IEC 61558‑2‑6, UL 5085‑1/‑2, CSA 22.2 No.66 Approvals ENEC 10 (VDE), UL 5085‑1/‑2, CSA 22.2 No.66 As a mains transformer for adjustment of the voltage and simple electrical isolation. As a safety isolating transformer for the safe electrical isolation of the input and output sides. The transformer is suitable for creating SELV and PELV circuits because of the limit on the output voltage.
