Kipatikana Bidhaa Maarufu
USQ4A22P

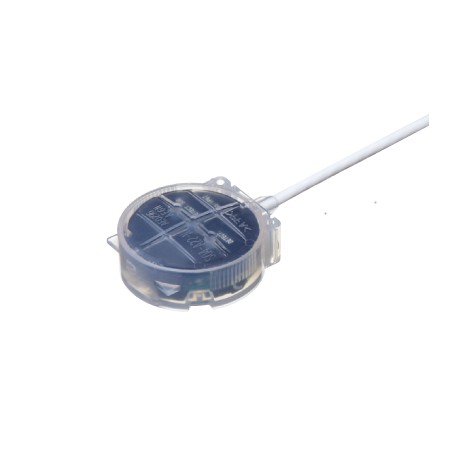

USQ4A22P SQ4-A22-P PANASONIC Safety Liquid Leak Sensor, chemical liquids, Category 1, Plc, SIL1, PNP output,..
$0.00USD
3441 kwenye hisa
Vipimo Muhimu
Bidhaa:Safety Liquid Leak Sensor [Control Category 4 PLe SIL3]
Kebo:0.1 mm24-core PFA cabtyre cable, 2 m6.562 ftlong
Uzito:Net weight: 45 g approxGross weight: 110 g approx
Maelezo:Sensor [For chemical liquid]
Taarifa za Msambazaji
PANASONIC
Bidhaa: 4316
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Bidhaa | Safety Liquid Leak Sensor [Control Category 4 PLe SIL3] |
| Kebo | 0.1 mm24-core PFA cabtyre cable, 2 m6.562 ftlong |
| Uzito | Net weight: 45 g approxGross weight: 110 g approx |
| Maelezo | Sensor [For chemical liquid] |
| Nyenzo | Enclosure: PFA |
| Ulinzi | IP65 / IP67 (IEC) |
| Nambari ya Sehemu | SQ4-A22-P |
| Jina la bidhaa | Safety Liquid Leak Sensor [Control Category 4 PLe SIL3] SQ4 |
| Volti ya nguvu | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Nambari ya Bidhaa | SQ4-A22-P |
| Kitu cha kuhisi | Sulfuric acid, Hydrochloric acid,Phosphoric acid, Ammonia, Fluorinert (Note 2), Galden (Note 2), Hydrofl uoric acid etc. (Note 3)(Note 1) Highly viscous liquid may not be stably detected.(Note 2) The agents mentioned above are examples. It may not be detected depending on viscosity the agent.Before using this device, check the detecting liquid and installation condition.(Note 3) Fluorinert is the world wide trademark of 3M. Galden is the registered trademark of Solvay. |
| Unyevu wa mazingira | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Kipengee kinachotoa | Infrared LED (modulated) |
| Halijoto ya mazingira | -10 to +55 ℃+14 to +131 ℉(No dew condensation or icing allowed) (Note) Storage: -10 to +55 ℃+14 to +131 ℉(Note) Liquid being detected should be also kept within the rated ambient temperature range. |
| Matumizi ya sasa | 30 mA or less |
| Kategoria ya matumizi | DC-12, DC-13 |
| Matokeo ya kugundua (Ugunduzi wa uvujaji) | PNP open-collector transistor- Maximum source current: 50 mA- Applied voltage: Same as the supply voltage (between detection output and +V)- Residual voltage: 2.5 V or less (at 50 mA source current) |
| Matokeo saidizi ya kugundua (Ugunduzi wa awali) | PNP open-collector transistor- Maximum source current: 50 mA- Applied voltage: Same as the supply voltage (between detection auxiliary output and +V)- Residual voltage: 2.5 V or less (at 50 mA source current) |
| Matokeo ya kugundua (Ugunduzi wa uvujaji): Muda wa majibu | 10 ms or less |
| Matokeo ya kugundua (Ugunduzi wa uvujaji): Operesheni ya kutoa | ON when normal condition or initial detection, OFF when detection leakage or wrong installation |
| Matokeo saidizi ya kugundua (Ugunduzi wa awali): Muda wa majibu | 50 ms or less |
| Matokeo ya kugundua (Ugunduzi wa uvujaji): Ulinzi wa mzunguko mfupi | Incorporated |
| Matokeo saidizi ya kugundua (Ugunduzi wa awali): Uendeshaji wa matokeo | ON when normal condition, OFF when initial detection or accidental leakage |
| Ugunduzi wa matokeo saidizi (Ugunduzi wa awali): Ulinzi wa mzunguko mfupi | Incorporated |
Maelezo ya Bidhaa
Safety Sensor liquid detection, chemical liquids, Category 1, Ple, SIL1, PNP, cable 2m
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
