USFDWL3

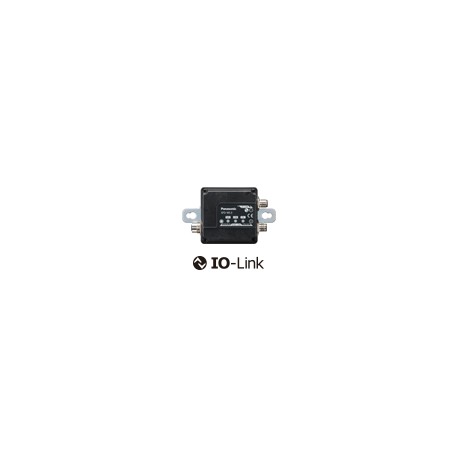

USFDWL3 SFD-WL3 PANASONIC IO-Link communication unit for SF4D, 8-wire M12 connector
$0.00USD
3017 kwenye hisa
Vipimo Muhimu
Bidhaa:IO-Link communication unit for safety light curtain SF4D series
Tamko:Use the safety light curtain monitoring information obtained via IO-Link only for diagnostic purposes. Do not use it for safety control purposes.
Uzito:270 g approx.
Nyenzo:Main unit case: PA66 (with glass)Base plate: SPCC + PlatingProduct model nameplate: PolyesterExternal connection connector: Brass + Plating
Taarifa za Msambazaji
PANASONIC
Bidhaa: 4316
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Bidhaa | IO-Link communication unit for safety light curtain SF4D series |
| Tamko | Use the safety light curtain monitoring information obtained via IO-Link only for diagnostic purposes. Do not use it for safety control purposes. |
| Uzito | 270 g approx. |
| Nyenzo | Main unit case: PA66 (with glass)Base plate: SPCC + PlatingProduct model nameplate: PolyesterExternal connection connector: Brass + Plating |
| Kazi | • IO-Link communication function• Safety light curtain setting data copy function (Note)Note :• The internal memory (nonvolatile) of this product has a service life. Settings cannot be configured more than 100,000 times.• This product cannot be used to directly enter settings from the IO-Link master unit to a safety light curtain using IO-Link communication.• The safety light curtain setting data copy function is designed only for use in maintenance / replace of safety light curtains.Use the copy function only for loading the setting data of the previous safety light curtain to a new unit. Loading the data to a device other than a newly installed safety light curtain may result in improper device operation.• This function cannot be used unless the product is connected with the IO-Link master unit and IO-Link communication is used. |
| Nambari ya Sehemu | SFD-WL3 |
| Jina la bidhaa | IO-Link Communication Unit |
| Nambari ya Bidhaa | SFD-WL3 |
| Unyevu wa mazingira | 30 to 85% RH, Storage: 30 to 95% RH |
| Kiwango cha uchafuzi wa mazingira | 3 |
| Urefu wa uendeshaji | 2,000 m6561.68 ftor lessNote : Do not use or store in an environment pressurized to atmospheric pressure or higher at an altitude of 0 m. |
| Halijoto ya mazingira | -10 to +55℃14 to 131℉(No dew condensation or icing allowed),Storage: -25 to +60℃-13 to 140℉ |
| Kiwango cha ulinzi | IP64 |
| Kanuni zinazotumika | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations) |
| Kategoria ya volteji ya ziada | I |
| Idadi ya vitengo vinavyoweza kuunganishwa: Bidhaa hii | 1 unit |
| Upinzani wa mazingira: Upinzani wa mshtuko | 300 m/s2acceleration (30 G approx.) in X, Y, and Z directions three times eachMalfunction resistance 100 m/s2acceleration (10 G approx.) in X, Y, and Z directions 1,000 times each |
| Volti ya usambazaji: Upande wa mawasiliano wa IO-Link | 24V DC+20-25% Ripple P-P 10 % or less |
| Njia ya muunganisho: Upande wa mawasiliano wa IO-Link | 4-core cable with M12 connector (commercially available product) |
| Upinzani wa mazingira: Upinzani wa mtetemo | 10 to 55 Hz, 0.75 mm0.030 indouble amplitude in X, Y, and Z directions for two hours eachMalfunction resistance 10 to 55 Hz, 0.75 mm0.030 indouble amplitude in X, Y, and Z directions twenty times each |
| Matumizi ya sasa: Upande wa mawasiliano wa IO-Link | 30 mA or less |
| Upinzani wa mazingira: Upinzani wa insulation | 20 MΩ or more, with 500 V DC megger, between all supply terminals connected together and enclosure |
| Mbinu ya mawasiliano: Upande wa mawasiliano wa IO-Link | IO-Link specifications: Ver. 1.1Baud rate: COM3 (230.4 kbps)Data length: 18 bytes, process data (PD)Minimum cycle time: 1.5 ms |
| Muunganisho: Upande wa mawasiliano wa pazia la usalama | 8-core cable for safety light curtain (optional) |
| Upinzani wa mazingira: Volti ya nguvu ya dielectric | 1,000 V AC for one minute, between all supply terminals connected together and enclosure |
| Volti ya usambazaji: Upande wa mawasiliano ya pazia la taa ya usalama | 24V DC+20-30% Ripple P-P 10 % or less |
| Matumizi ya sasa: Upande wa mawasiliano ya pazia la usalama | 15 mA or less |
| Njia ya mawasiliano: Upande wa mawasiliano wa pazia la usalama | RS-485 bidirectional communication (dedicated protocol) |
| Idadi ya vitengo vinavyoweza kuunganishwa: Mapazia ya taa za usalama katika muunganisho wa mfululizo | Up to 5 units (total number of beam channels 256 or less) |
Maelezo ya Bidhaa
SFD-WL3_IO-Link communication unit for safety light curtain SF4D series_IO-Link Communication Unit
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
