UPX22

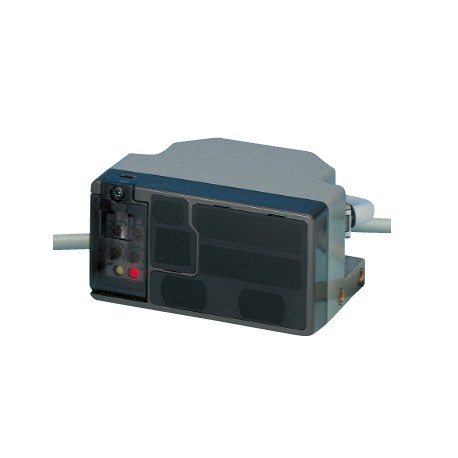

UPX22 PX22 PX-22 PANASONIC Wide area photoelectric sensor, 3 m, 10-31 V DC
$0.00USD
3377 kwenye hisa
Vipimo Muhimu
Bidhaa:Long Range & Wide Area Photoelectric Sensor
Kebo:0.3 mm25-core cabtyre cable, 0.5 m1.640 ftlong (for input and output)
Uzito:Net weight: 210 g approx.Gross weight: 390 g approx.
Maelezo:Main sensors(Standard model)
Taarifa za Msambazaji
PANASONIC
Bidhaa: 4316
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Bidhaa | Long Range & Wide Area Photoelectric Sensor |
| Kebo | 0.3 mm25-core cabtyre cable, 0.5 m1.640 ftlong (for input and output) |
| Uzito | Net weight: 210 g approx.Gross weight: 390 g approx. |
| Maelezo | Main sensors(Standard model) |
| Nyenzo | Enclosure: ABS, Lens: Acrylic, Cover: Polycarbonate |
| Kifaa cha ziada | MS-PX-2 (Main sensor mounting bracket): 1 set, Adjusting screwdriver: 1 pc. |
| Hysteresis | 15 % or less of operation distance(Note：The sensing range is specified for white non-glossy paper (300 x 300 mm11.811 × 11.811 in) as the object.) |
| OUT1, OUT2 | NPN open-collector transistor・Maximum sink current: 100 mA・Applied voltage: 40 V DC or less between OUT 1 / OUT 2 and 0 V)・Residual voltage: 1.5 V or less (at 100 mA sink current), 0.4 V or less (at 16 mA sink current)* OUT1(OR circuit among the effective center, left, right, adjacent left / right OUT 1 areas and the effective auxiliary left / right areas)OUT2(OR circuit among the effective center, left and right OUT 2 areas) |
| Ulinzi | IP65 (IEC) |
| Nambari ya Sehemu | PX-22 |
| Jina la bidhaa | Long Range & Wide Area Photoelectric Sensor PX-2 |
| Eneo la kuhisi | Four sensing areas are selectable with dip switches. |
| Muda wa majibu | 80 ms or less |
| Nambari ya Bidhaa | PX-22 |
| Kazi ya usingizi | Operating / sleep selectable with external input |
| Volti ya usambazaji | 10 to 31 V DC including ripple |
| Upanuzi wa kebo | Extension up to total 100 m328.084 ft(10 m32.808 ftfor auxiliary sensor connection) is possible with 0.3 mm2, or more, cable. |
| Unyevu wa mazingira | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Kipengee kinachotoa | Infrared LED (Peak emission wavelength: 950 nm0.037 mil, modulated) |
| Upinzani wa mshtuko | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each |
| Matumizi ya nguvu | Under operation: 1.5 W or less, Under sleep condition: 0.3 W or less (without auxiliary sensor)(Note：Obtain the current consumption by the following calculation.Current consumption = Power consumption ÷ Supply voltage(e.g.) When the supply voltage is 12 V, the current consumption (operating condition) is: 1.5 W ÷ 12 V = 0.125 A = 125 mA) |
| Mwangaza wa mazingira | Incandescent light: 3,000 lx or less at the light-receiving face |
| Halijoto ya mazingira | -10 to +55 ℃+14 to +131 ℉(No dew condensation or icing allowed), Storage: -20 to +70 ℃-4 to +158 ℉ |
| Kirekebishaji cha unyeti | Continuously variable adjusters (OUT 1, adjacent right OUT 1, adjacent left OUT 1 and OUT 2 areas are adjusted independently.) |
| Upinzani wa mtetemo | 10 to 500 Hz frequency, 3 mm0.118 indouble amplitude (20 G max.) in X, Y and Z directions for two hours each |
| Upinzani wa insulation | 20 MΩ, or more, with 500 V DC megger between all supply terminals connected together and enclosure |
| Ustahimilivu wa volteji | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| OUT1, OUT2: Uendeshaji wa matokeo | Selectable either Light-ON or Dark-ON with a switch (Output operation of OUT 1 and OUT 2 is the same.) |
| Utii wa maagizo ya kuashiria CE | EMC Directive, RoHS Directive |
| Viashiria vya uendeshaji: OUT 1 eneo | Red LED (lights up when the beam is received in the effective OUT 1 areas) |
| Viashiria vya uendeshaji: Eneo la nje 2 | Yellow LED (lights up when the beam is received in the effective OUT 2 areas) |
| OUT1, OUT2: Ulinzi wa mzunguko mfupi | Incorporated |
| Kiwango cha kuhisi (maeneo ya OUT 1 na OUT 2) | 3 m9.843 ft(Note：The sensing range is specified for white non-glossy paper (300 x 300 mm11.811 × 11.811 in) as the object.) |
| Kipengele cha kuzuia kuingiliwa kiotomatiki | Optical interference from up to 25 units is prevented. |
Maelezo ya Bidhaa
PX-2 Series. Guided vehicle sensor, standard, range 3 m., NPN, power supply 10-31 VDC
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
