UM-2KS50/32R/SI/J/ADV551/YCS

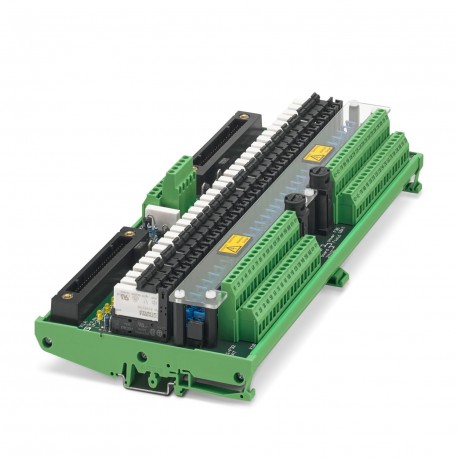

UM-2KS50/32R/SI/J/ADV551/YCS 2908400 PHOENIX CONTACT Active module
$0.00USD
3864 kwenye hisa
Vipimo Muhimu
:ADV561
Rangi:green (RAL 6021)
Kina:60.5 mm
Upana:271.5 mm
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| ADV561 | |
| Rangi | green (RAL 6021) |
| Kina | 60.5 mm |
| Upana | 271.5 mm |
| Urefu | ≤ 2000 m |
| Dokezo la EMC | EMC: class A product, see manufacturer's declaration in the download area |
| Aina ya bidhaa | Interface module |
| Dokezo la mkutano | in rows with zero spacing |
| Aina ya kupachika | DIN rail mounting |
| Hali ya uendeshaji | 100% operating factor |
| Marekebisho ya makala | 04 |
| Nyenzo ya mawasiliano | AgSnO |
| Kiwango cha uchafuzi wa mazingira | 2 |
| Mbinu ya muunganisho | Yokogawa KS-compatible |
| Nafasi ya kupachika | any |
| Kadi ya I/O inayofaa | ADV551 |
| Maelezo kuhusu uendeshaji | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
| Mzunguko wa kinga | Freewheeling diode; Freewheeling diode |
| Mchoro wa vipimo | |
| Kiwango cha volteji ya kuingiza | 19.2 V DC ... 28.8 V DC |
| Idadi ya nafasi | 50 |
| Volti ya kuongezeka iliyokadiriwa | 0.5 kV (Functional insulation) |
| Kiwango cha ulinzi | IP00 |
| Kategoria ya volteji nyingi | II |
| Muda wa kawaida wa kutolewa | 6 ms |
| Idadi ya miunganisho | 1 |
| Viwango/kanuni | EN 60664-1 |
| Muda wa kawaida wa majibu | 5 ms |
| Aina ya ubadilishaji wa mguso | 1 N/O contact |
| Kiwango cha chini cha ubadilishaji wa mkondo | 1 mA (24 V) |
| Onyesho la hali linapatikana | Yes |
| Onyesho/chaneli ya hali | green LED |
| Aina ya mguso wa swichi | Single contact |
| Maisha ya huduma ya mitambo | 2x 107cycles |
| Volti ya pembejeo ya kawaida ya UN | 24 V DC |
| Volti ya insulation iliyokadiriwa | 50 V AC |
| Volti ya juu zaidi ya kubadili | 250 V AC |
| Volti ya chini kabisa ya kubadili | 5 V (100 mA) |
| Sehemu ya msalaba ya kondakta AWG | 24 ... 12 |
| Kupunguza mkondo unaoendelea | 1.5 A (32 °C) |
| Mkondo wa kawaida wa pembejeo katika Umoja wa Mataifa | 7 mA |
| Sehemu ngumu ya kondakta | 0.2 mm² ... 4 mm² |
| Halijoto ya mazingira (uendeshaji) | -20 °C ... 50 °C |
| Sehemu ya msalaba ya kondakta inayonyumbulika | 0.2 mm² ... 2.5 mm² |
| Unyevu unaoruhusiwa (uendeshaji) | 10 % ... 95 % (non-condensing) |
| Jumla ya juu ya usambazaji wa volteji | 10 A (50 °C) |
| Kiwango cha juu cha ukadiriaji wa kukatiza (mzigo wa ohmic). | 48 W (24 V DC) |
| Kiwango cha volteji ya kuingiza data kwa kurejelea UN | 0.8 ... 1.2 |
| Halijoto ya kawaida (uhifadhi/usafiri) | -20 °C ... 80 °C |
| Kiwango cha ulinzi (Mahali pa ufungaji) | ≥ IP54 (Installation location) |
Maelezo ya Bidhaa
32-channel output relay module with screw connection and 50-pole redundant system connection, fuse and jumper on each output circuit, for Yokogawa ADV551 and ADV561
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
