UK 10,3-HESI A 1500V

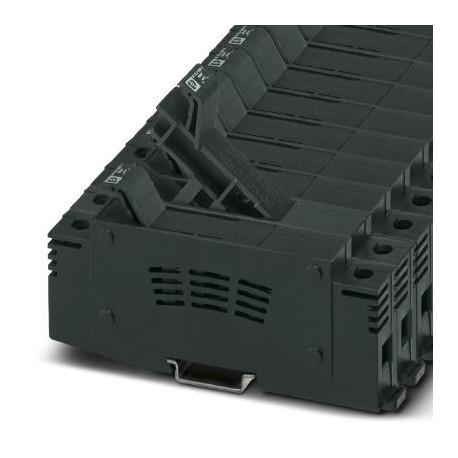

UK 10,3-HESI A 1500V 1069842 PHOENIX CONTACT Fuse modular terminal block, fuse type: Glass / ceramics / ...,..
$0.00USD
4709 kwenye hisa
Vipimo Muhimu
GTIN:4055626747903
Ufunguo wa kuagiza:1069842
(Michoro):
Ukurasa wa katalogi:Page 504 (C-1-2019)
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4055626747903 |
| Ufunguo wa kuagiza | 1069842 |
| (Michoro) | |
| Ukurasa wa katalogi | Page 504 (C-1-2019) |
| Kitengo cha kufungasha | 1 pc |
| Fuse (Drawings) | gG / gPV / 10.3 x 85 |
| Upana (Jumla) | 23 mm |
| Rangi (Michoro) | black |
| Urefu (Jumla) | 130 mm |
| UNSPSC 11 (ETIM) | 39121410 |
| Nchi ya asili | CN (China) |
| ETIM 2.0 (eCl@ss) | EC000897 |
| ETIM 3.0 (eCl@ss) | EC000899 |
| ETIM 4.0 (eCl@ss) | EC000899 |
| ETIM 5.0 (eCl@ss) | EC000899 |
| ETIM 6.0 (eCl@ss) | EC000899 |
| ETIM 7.0 (eCl@ss) | EC000899 |
| UNSPSC 13.2 (ETIM) | 39121410 |
| UNSPSC 18.0 (ETIM) | 39121410 |
| UNSPSC 19.0 (ETIM) | 39121410 |
| UNSPSC 20.0 (ETIM) | 39121410 |
| UNSPSC 21.0 (ETIM) | 39121410 |
| UNSPSC 6.01 (ETIM) | 30211811 |
| UNSPSC 12.01 (ETIM) | 39121410 |
| Nambari ya ushuru maalum | 85354000 |
| Fuse type (Drawings) | Glass / ceramics / ... |
| UNSPSC 7.0901 (ETIM) | 39121410 |
| Kiasi cha chini cha oda | 12 pc |
| Urefu NS 35/15 (Jumla) | 73 mm |
| Uzi wa skrubu (Vipimo) | M5 |
| Urefu NS 35/7,5 (Jumla) | 65.5 mm |
| Open side panel (Drawings) | No |
| Idadi ya viwango (Michoro) | 1 |
| (Viwango na Kanuni) | No hazardous substances above threshold values |
| eCl@ss 4.0 (Uainishaji) | 27141116 |
| eCl@ss 4.1 (Uainishaji) | 27141116 |
| eCl@ss 5.0 (Uainishaji) | 27141116 |
| eCl@ss 5.1 (Uainishaji) | 27141100 |
| eCl@ss 6.0 (Uainishaji) | 27141100 |
| eCl@ss 7.0 (Uainishaji) | 27141116 |
| eCl@ss 8.0 (Uainishaji) | 27141116 |
| eCl@ss 9.0 (Uainishaji) | 27141116 |
| Nominal current IN (Drawings) | 32 A (the current and voltage are determined by the fuse) |
| Nominal voltage UN (Drawings) | 1500 V DC |
| Urefu wa kukatwa (Vipimo) | 14 mm |
| Mbinu ya muunganisho (Vipimo) | Screw connection |
| Kiwango cha uchafuzi (Michoro) | 3 |
| Insulating material (Drawings) | PA |
| Rated surge voltage (Drawings) | 8 kV |
| Maximum load current (Drawings) | 32 A (the current and voltage are determined by the fuse) |
| Kategoria ya volteji kupita kiasi (Michoro) | III |
| Nominal cross section (Drawings) | 25 mm² |
| Idadi ya miunganisho (Michoro) | 2 |
| Kiwango cha juu cha kukaza torque (Vipimo) | 2.5 Nm |
| Insulating material group (Drawings) | I |
| Uzito kwa Kipande (bila kujumuisha upakiaji) | 0.000 g |
| RoHS ya China (Viwango na Kanuni) | Environmentally friendly use period: unlimited = EFUP-e |
| Kipimo cha ndani cha silinda (Vipimo) | A7 |
| Connection in acc. with standard (Drawings) | IEC 60947-1 / -3 |
| Sehemu ya msalaba ya kondakta AWG ya juu zaidi. (Vipimo) | 4 |
| Sehemu ya msalaba ya kondakta AWG ya chini (Vipimo) | 14 |
| Upeo wa juu wa sehemu nzima ya kondakta. (Vipimo) | 25 mm² |
| Sehemu nzima ya kondakta, sehemu ya chini kabisa (Vipimo) | 2.5 mm² |
| Flammability rating according to UL 94 (Drawings) | V0 |
| Sehemu ya juu inayonyumbulika ya kondakta. (Vipimo) | 25 mm² |
| Sehemu ya chini inayonyumbulika ya kondakta (Vipimo) | 2.5 mm² |
| Muunganisho katika akaunti na (data ya muunganisho) | IEC 60269-1 / -2 |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Data ya muunganisho) | V0 |
| Maximum power dissipation for nominal condition (Drawings) | 6 W |
| Viendeshaji 2 vyenye sehemu sawa, kiwango cha juu cha nguvu. (Vipimo) | 10 mm² |
| Viendeshaji 2 vyenye sehemu sawa ya msalaba, kiwango cha chini cha nguvu (Vipimo) | 0.75 mm² |
| Kondakta 2 zenye sehemu sawa, upeo wa juu uliokwama. (Vipimo) | 10 mm² |
| Kondakta 2 zenye sehemu sawa, zenye sehemu ndogo iliyokwama. (Vipimo) | 0.75 mm² |
| Sehemu ya msalaba ya kondakta inaweza kunyumbulika, ikiwa na kipete chenye kifuko cha plastiki cha juu zaidi. (Vipimo) | 16 mm² |
| Sehemu ya msalaba ya kondakta inaweza kunyumbulika, ikiwa na kipete chenye sehemu ya chini ya mkono wa plastiki. (Vipimo) | 2.5 mm² |
| Sehemu ya msalaba ya kondakta inaweza kunyumbulika, ikiwa na kipete kisicho na kifuko cha plastiki cha juu zaidi. (Vipimo) | 16 mm² |
| Sehemu ya msalaba ya kondakta inaweza kunyumbulika, ikiwa na kipete bila mkono wa plastiki. (Vipimo) | 2.5 mm² |
| Viendeshaji 2 vyenye sehemu moja ya msalaba, vimekwama, vivuko bila sleeve ya plastiki, upeo. (Vipimo) | 10 mm² |
| Viendeshaji 2 vyenye sehemu moja ya msalaba, vimekwama, vivuko bila sleeve ya plastiki, kiwango cha chini (Vipimo) | 0.75 mm² |
Maelezo ya Bidhaa
Fuse terminal block, fuse type: Glass/ceramic/..., fuse type: gG / gPV / 10.3 x 85, nominal voltage: 1500 V, nominal current: 32 A, connection type: Screw connection, Sizing cross-section: 16 mm², cro
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
Circuit diagram
