UHLG105ARAC5

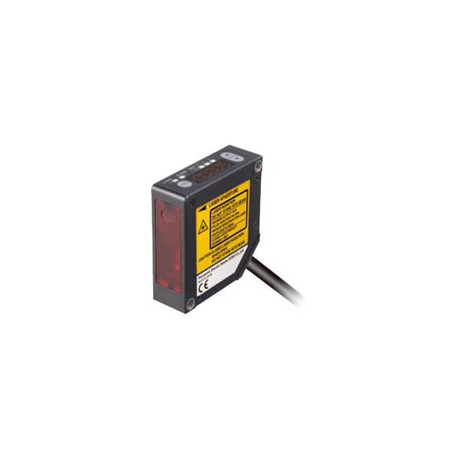

UHLG105ARAC5 HL-G105A-RA-C5 PANASONIC Compact Laser Displacement Sensor, Specular reflection type, 47,3 mm, ..
$0.00USD
4319 kwenye hisa
Vipimo Muhimu
Bidhaa:Compact Laser Displacement Sensor
Aina:Standard type
Kebo:0.1mm210-core cabtyre cable, 5 m16.404 ftlong
Tamko:Where measurement conditions have not been specified precisely, the conditions used were as follows: supply voltage 24 V DC, ambient temperature +20 ℃+68 ℉, sampling rate 500 μs, average number of samples: 1024, measurement center distance, object measured is made of white ceramic (specular reflection type: an aluminum vapor deposition surface reflection mirror) and analog measurement values.
Taarifa za Msambazaji
PANASONIC
Bidhaa: 4316
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Bidhaa | Compact Laser Displacement Sensor |
| Aina | Standard type |
| Kebo | 0.1mm210-core cabtyre cable, 5 m16.404 ftlong |
| Tamko | Where measurement conditions have not been specified precisely, the conditions used were as follows: supply voltage 24 V DC, ambient temperature +20 ℃+68 ℉, sampling rate 500 μs, average number of samples: 1024, measurement center distance, object measured is made of white ceramic (specular reflection type: an aluminum vapor deposition surface reflection mirror) and analog measurement values. |
| Uzito | Net weight: 70 g approx. (not including cable), 320 g approx. (including cable)Gross weight: 380 g approx. |
| Maelezo | Sensor head (Standard type) |
| Nyenzo | Enclosure: PBTFront cover: AcrylicCable: PVC |
| Kifaa cha ziada | Warning label: 1 set |
| Uwiano | ±0.2 % F.S. |
| Azimio | 1.5 μm0.059 mil |
| Ingizo nyingi | Zero set, zero set off, reset, memory switching, teaching, saving, and laser control according to the input time.In case NPN output is selected, Function varies according to the time 0 V is connected NPN.In case PNP output is selected, Function varies according to the time external power + is connected. |
| Nambari ya Sehemu | HL-G105A-RA-C5 |
| Chanzo cha mwanga | Red semiconductor laser, Class 1 (IEC / EN / JIS / GB / KS / FDA (Note：This product complies with the FDA regulations (FDA 21 CFR 1040.10 and 1040.11) in accordance with FDA Laser Notice No. 56, except for complying with IEC 60825-1 Ed. 3.Max. output: 0.39 mW (Peak emission wavelength: 655 nm0.026 mil) |
| Jina la bidhaa | Compact Laser Displacement Sensor HL-G1 |
| Ingizo la muda | NPN output operates when 0V is connected and NPN is set. (It depends on the setting.)PNP output operates when external power + is connected and PNP is set. (It depends on the setting.) |
| Kipenyo cha boriti | 0.1 × 0.1 mm0.004 × 0.004 in(Note) This beam diameter is the size at the measurement center distance. These values were defined by using 1/e2(13.5 %) of the center light intensity. Ifthere is a slight leakage of light outside the normal spot diameter and if the periphery surrounding the sensing point has a higher reflectivity than thesensing point itself, then the results may be affected. |
| Kiwango cha sampuli | 200 μs, 500 μs, 1 ms, 2 ms |
| Nambari ya Bidhaa | HL-G105A-RA-C5 |
| Volti ya usambazaji | 24 V DC ± 10 % including ripple 0.5 V (P-P) |
| Onyesho la kidijitali | Red LED 5 digit display |
| Kiwango cha kupimia | ±5 mm±0.197 in |
| Kiashiria: Kengele | Orange LED lights up when this product cannot measure because of insuffienct or excessive light intensity. |
| Kipengele cha kupokea | CMOS image sensor |
| Urefu wa uendeshaji | 2,000 m6561 ftor less |
| Matumizi ya sasa | 100 mA or less |
| Kiwango cha uchafuzi wa mazingira | 2 |
| Upinzani wa insulation | 20 MOhm , or more, with 250 V DC between all supply teminals connected together and enclosure |
| Utiifu wa kanuni | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations) |
| Matokeo ya analogi: Ya sasa | Output range: 3.2 to 20.8 mA (normal), 21.6 mA (alarm)Load impedance: 300 Ohm or less |
| Pato la analogi: Volti | Output range: 0 to +10.5 V (normal), 11 V (alarm)Output impedance: 100 Ohm |
| Ustahimilivu wa volteji | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Kiashiria: Utoaji wa leza | Green LED (lights up during laser emission) |
| Umbali wa kituo cha kipimo | 47.3 mm1.862 in |
| Sifa za halijoto | ± 0.08 % F.S. / ℃ |
| Kiashiria: Kiwango cha kipimo | Three yellow LED |
| Ingizo la mpangilio wa polari ya kutoa | NPN open collector output operates when 0 V is connected.PNP open collector output operates when 24 V DC is connected. |
| Matokeo (NJE 1, NJE 2, NJE 3) | Judgment output or alarm output (Setting can be selected.)Selectable NPN transistor open-collector or PNP transistor open-collector<In case of using NPN output>-Maximum sink current: 50 mA-Applied voltage: 3 to 24 V DC (between output and 0 V)-Residual voltage: 2 V or less (at 50 mA of sink current)<In case of using PNP output>-Maximum source current: 50 mA-Residual voltage: 2.8 V or less (at 50 mA of source current) |
| Upinzani wa mazingira: Ulinzi | IP67 |
| Upinzani wa mazingira: Unyevu wa mazingira | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Upinzani wa mazingira: Upinzani wa mshtuko | 500 m/s2acceleration (50 G approx.) in X,Y and Z directions three times each |
| Upinzani wa mazingira: Mwangaza wa mazingira | Incandescent light: 3,000 liter x or less at the light-receiving face(Note) The fluctuation by ambient illuminance is ± 0.1 % F.S. or less. |
| Upinzani wa mazingira: Joto la kawaida | -10 to +45 ℃+14 to +113 ℉(No dew condensation allowed), Storage: -20 to +60 ℃-4 to +140 ℉ |
| Upinzani wa mazingira: Upinzani wa mtetemo | 10 to 55 Hz (period: 1 min.) frequency, 1.5 mm0.059 indouble amplitude in X,Y and Z directions for two hours each |
| Towe (NJE 1, NJE 2, NJE 3): Uendeshaji wa towe | Opened when the amount of light is insufficient. |
| Pato (NJE 1, NJE 2, NJE 3): Ulinzi wa saketi fupi | Incorporated (automatic restoration) |
Maelezo ya Bidhaa
CMOS class 2 measuring laser, IP67, Specular Reflection, built-in display and amplifier, 2 s. analog, 3 selectable digital outputs PNP/NPN, standard model, measurement range: 47.3 mm ± 5 mm., resoluti
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
