UHGC1050P

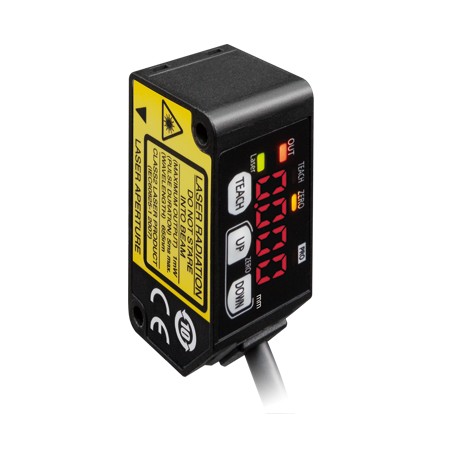

UHGC1050P HG-C1050-P PANASONIC Compact Laser Displacement Sensor, 50mm+-15mm, PNP, 0-5V/4-20mA, cable 2m
$0.00USD
4737 kwenye hisa
Vipimo Muhimu
Bidhaa:CMOS type Micro Laser Distance Sensor
Kebo:5-core composite cable, 2 m6.5617 ftlong
Uzito:Net weight: 35 g approx. (without cable), 85 g approx. (including cable)
Maelezo:Measurement center 50mm 1.969 in type
Taarifa za Msambazaji
PANASONIC
Bidhaa: 4316
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Bidhaa | CMOS type Micro Laser Distance Sensor |
| Kebo | 5-core composite cable, 2 m6.5617 ftlong |
| Uzito | Net weight: 35 g approx. (without cable), 85 g approx. (including cable) |
| Maelezo | Measurement center 50mm 1.969 in type |
| Nyenzo | Enclosure: Aluminum die-castFront cover: Acrylic |
| Uwiano | ±0.1%F.S. |
| Ulinzi | IP67 (IEC) |
| Nambari ya Sehemu | HG-C1050-P |
| Chanzo cha mwanga | Red semiconductor laser Class 2 (IEC / EN/ JIS / GB / KS / FDA) / Class II (FDA)(Note)Max. output: 1mWemission peak wavelength: 655nm 0.026 mil(Note) This product complies with the FDA regulations (FDA 21 CFR 1040.10 and 1040.11) in accordance with FDA Laser Notice No. 56, except for complying with IEC 60825-1 Ed. 3. |
| Jina la bidhaa | CMOS type Micro Laser Distance Sensor HG-C |
| Kipenyo cha boriti | ø70 μm1.1811 milapprox.(Note) This is the size in the measurement center distance. These values were defined by using 1 / e2(13.5% approx.) of the center light intensity. Due to leak light outside the specified area, the reflectance around the detecting point may be higher than at the point and this may affect the measurement value. |
| Kurudia | 30 μm1.181 mil |
| Muda wa majibu | Switchable between 1.5 ms / 5 ms / 10 ms |
| Udhibiti wa matokeo | PNP open-collector transistor- Maximum source current: 50mA- Applied voltage: 30V DC or less (Between control output to +V)- Residual voltage: 1.5V or less (At 50mA source current)- Leakage current: 0.1 mA or less |
| Ingizo la nje | PNP non-contact input- Input conditionsInvalid: 0 to +0.6V DC or OpenValid: +4 to +V DC- Input impedance: 10kΩ approx. |
| Nambari ya Bidhaa | HG-C1050-P |
| Volti ya usambazaji | 12 to 24V DCplus or minus 10% Ripple P-P 10% |
| Upanuzi wa kebo | Extension up to total 10 m393.701 ftis possible with 0.3 mm2, or more, cable. |
| Kiwango cha kupimia | ±15mm0.591 in |
| Unyevu wa mazingira | 35 to 85% RH, Storage: 35 to 85% RH |
| Kiwango cha uchafuzi wa mazingira | 2 |
| Upinzani wa mshtuko | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each |
| Urefu wa uendeshaji | 2,000 m6561.680 ftor less |
| Mwangaza wa mazingira | Incandescent light: 3,000 ℓx or less at the light-receiving face |
| Halijoto ya mazingira | -10 to +45 ℃-14 to 113 ℉(No dew condensation or icing allowed), Storage: -20 to +60 ℃-4 to 140 ℉ |
| Matumizi ya sasa | 40 mA or less (at 24V DC supply voltage)65 mA or less (at 12V DC supply voltage)Note : Specifications have been changed from shipment in August, 2016. For shipment before July 2016 ： 40 mA or less (at 24 V DC supply voltage), 60 mA or less (at 12 V DC supply voltage) |
| Upinzani wa mtetemo | 10 to 55 Hz (period: 1 min.) frequency, 1.5 mm0.059 indouble amplitude in X, Y and Z directions for two hours each |
| Umbali wa kituo cha kipimo | 50mm1.969 in |
| Sifa za halijoto | 0.03% F.S. /℃ |
| Udhibiti wa matokeo: Uendeshaji wa matokeo | Either Light-ON or Dark-ON |
| Matokeo ya analogi: Matokeo ya sasa ya analogi | • Output range: 4 to 20mA (at alarm: 0mA)• Output impedance: 300Ω or lessNote : Analog current output has been added from shipment in August 2016. |
| Pato la analogi: Pato la volteji ya analogi | • Output range: 0 to 5 V (at alarm: +5.2 V)• Output impedance: 100Ω |
| Udhibiti wa matokeo: Ulinzi wa mzunguko mfupi | Incorporated (Auto reset type) |
| Kanuni na vyeti vinavyotumika | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), FDA Regulations, UL/c-UL Certification(Note) : The UL/c-UL certified products have been shipped since April, 2017. |
Maelezo ya Bidhaa
Micro Displacement Laser Sensor, measurement range 50mm. ± 15mm., repeatability 30μm., beam diameter approx. 70μm., PNP digital output, analog output 0-5V / 4-20mA, cable 2m
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
