UFX551L3PC2

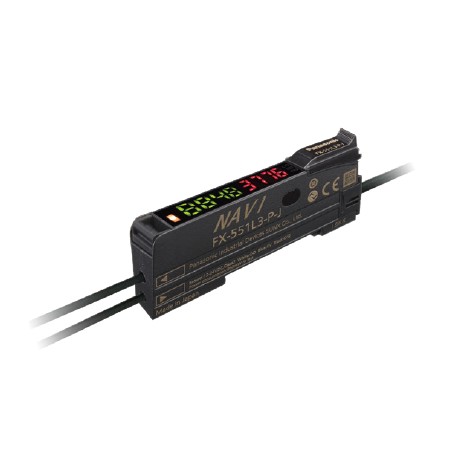

UFX551L3PC2 FX-551L3-P-C2 PANASONIC Fiber amplifier, IO Link, double display, cable type, 2m
$0.00USD
3242 kwenye hisa
Vipimo Muhimu
Bidhaa:Specifications
Kebo:0.2 mm24-core cabtyre cable, 2 m6.562 ftlong
Tamko:Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23℃+73.4℉.
Uzito:Net weight: 55 g approx., Gross weight: 80 g approx.
Taarifa za Msambazaji
PANASONIC
Bidhaa: 4316
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Bidhaa | Specifications |
| Kebo | 0.2 mm24-core cabtyre cable, 2 m6.562 ftlong |
| Tamko | Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23℃+73.4℉. |
| Uzito | Net weight: 55 g approx., Gross weight: 80 g approx. |
| Nyenzo | Enclosure, Case cover: Polycarbonate, Switch: Polyacetal |
| Ulinzi | IP40 (IEC) |
| Nambari ya Sehemu | FX-551L3-P-C2 |
| Jina la bidhaa | Digital Fiber Sensor FX-550L |
| Muda wa majibu | STD: 250 μs or less, LONG: 2 ms or less, U-LG: 4 ms or less, HYPR: 24 ms or less, selectable |
| Nambari ya Bidhaa | FX-551L3-P-C2 |
| Volti ya usambazaji | 12 to 24 V DC+10-15% Ripple P-P 10 % or less |
| Kitendaji cha kipima muda | Incorporated with variable OFF-delay / ON-delay / One-shot, switchable either effective or ineffective |
| Upanuzi wa kebo | Extension up to total 20 m65.617 ftis possible with 0.3 mm2, or more, cable.(Condition of CE compliance: less tan 20 m65.617 ft) (however, supply voltage 12 V DC or more) |
| Upinzani wa mshtuko | 98 m/s2acceleration (10 G approx.) in X, Y and Z directions five times each |
| Matumizi ya nguvu | Normal operation: 960 mW or less (current consumption 40 mA or less at 24 V supply voltage)ECO mode: 720 mW or less (current consumption 30 mA or less at 24 V supply voltage) |
| Halijoto ya mazingira | -10 to +55℃+14 to +131℉(If 4 to 7 units are mounted in cascade: -10 to +50℃+14 to +122℉or if 8 to 16 units are mounted in cascade: -10 to +45℃+14 to +113℉) (No dew condensation or icing allowed), Storage: -20 to +70℃-4 to +158℉ |
| Udhibiti wa matokeo (DO) | PNP open-collector transistor• Maximum source current: 50 mA• Applied voltage: 30 V DC or less (between output and +V)• Residual voltage: 2 V or less (Note) (at maximum source current)(Note:)In case of using the cable (cable length 2 m6.562 ft). |
| Mpangilio wa unyeti | 2-point teaching / Limit teaching / Full-auto teaching / Manual adjustment |
| Upinzani wa mtetemo | 10 to 150 Hz frequency, 0.75 mm0.030 indouble amplitude (10 G max.) in X, Y and Z directions for two hours each |
| Kanuni zinazotumika | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations) |
| Kipengele cha kipima muda: Kipindi cha kipima muda | 0.1 to 999.9 ms approx., in units of 0.1 ms approx. |
| Kipengee kinachotoa moduli (kilichorekebishwa) | Red LED (Peak emission wavelength: 660 nm 0.026 mil) |
| Mpangilio wa unyeti wa mwanga wa matukio | Incorporated, 4 steps |
| Matokeo ya mawasiliano (C/Q): Kiwango cha baudi | COM3 (230.4 kbps)(Note:)When the sensor is used as an ordinary sensor, the communication output (C/Q) provides the same output operation as the control output (DO). |
| Udhibiti wa matokeo (DO): Uendeshaji wa matokeo | Switchable either Light-ON or Dark-ON by L/D mode |
| Kiwango cha kuonyesha mwangaza wa matukio | STD: 0 to 4,000, LONG: 0 to 8,000, U-LG / HYPR: 0 to 9,999 |
| Matokeo ya mawasiliano (C/Q): Data ya mchakato | 4 byte(Note:)When the sensor is used as an ordinary sensor, the communication output (C/Q) provides the same output operation as the control output (DO). |
| Udhibiti wa matokeo (DO): Ulinzi wa mzunguko mfupi | Incorporated |
| Matokeo ya mawasiliano (C/Q): Muda wa chini wa mzunguko | 1.0 ms(Note:)When the sensor is used as an ordinary sensor, the communication output (C/Q) provides the same output operation as the control output (DO). |
| Matokeo ya mawasiliano (C/Q): Mawasiliano ya IO-Link | IO-Link Specification V1.1(Note:)When the sensor is used as an ordinary sensor, the communication output (C/Q) provides the same output operation as the control output (DO). |
| Kazi tofauti za kuzuia kuingiliwa kwa masafa | Incorporated (up to 4 units). Note that the response time varies depending on the setting.F-1: 0.8 ms or less, F-2: 0.9 ms or less, F-3: 1.0 ms or less, F-4: 1.7 ms or less(Note:)This function increases the hysteresis. Check the sensing condition when using the function. |
Maelezo ya Bidhaa
FX-550L Series. Amplifier F. Optical, 1 digital output PNP, dual display, IO Link connection, 2m cable
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
