UFX501

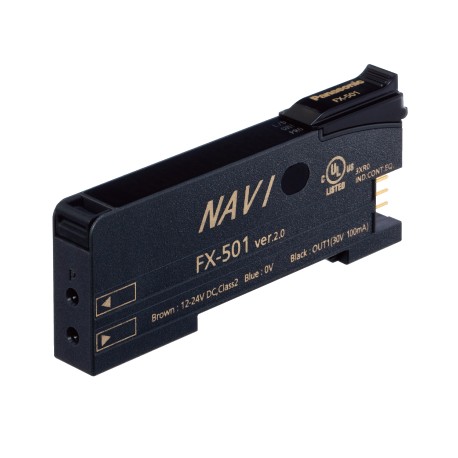

UFX501 FX-501 PANASONIC Fiber amplifier, NPN, 1 digital output, double display, connector type
$0.00USD
4516 kwenye hisa
Vipimo Muhimu
Bidhaa:Digital Fiber Sensor
Kebo:-
Matokeo:NPN open-collector transistor- Maximum sink current: 100 mA (Note 1)- Applied voltage: 30 V DC or less (between output and 0 V)- Residual voltage: 2 V or less (Note 2) (at maximum sink current)(Note 1) 50 mA max. if 5 or more standard types are connected together.(Note 2) 50 mA max. if 5 or more standard types are connected together. (25 mA in case of 2-output type and cable type)
Uzito:Net weight: 15 g approx.Gross weight: 70 g approx.
Taarifa za Msambazaji
PANASONIC
Bidhaa: 4316
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Bidhaa | Digital Fiber Sensor |
| Kebo | - |
| Matokeo | NPN open-collector transistor- Maximum sink current: 100 mA (Note 1)- Applied voltage: 30 V DC or less (between output and 0 V)- Residual voltage: 2 V or less (Note 2) (at maximum sink current)(Note 1) 50 mA max. if 5 or more standard types are connected together.(Note 2) 50 mA max. if 5 or more standard types are connected together. (25 mA in case of 2-output type and cable type) |
| Uzito | Net weight: 15 g approx.Gross weight: 70 g approx. |
| Maelezo | Standard type |
| Nyenzo | Enclosure, Case cover: PolycarbonateSwitch: Polyacetal |
| Kifaa cha ziada | FX-MB1 (Amplifier protection seal): 1 set |
| Ulinzi | IP40 (IEC) |
| Nambari ya Sehemu | FX-501 |
| Jina la bidhaa | Digital Fiber Sensor FX-500 Ver.2 |
| Muda wa majibu | H-SP: 25 micro s or lessFAST: 60 micro s or lessSTD: 250 micro s or lessLONG: 2 ms or lessU-LG: 4 ms or lessHYPR: 24 ms or less, selectable |
| Ingizo la nje | - |
| Nambari ya Bidhaa | FX-501 |
| Volti ya usambazaji | 12 to 24 V DC+10-15 % Ripple P-P 10 % or less |
| Kitendaji cha kipima muda | Incorporated with variable OFF-delay / ON-delay /One-shot / ON-delay - OFF-delay / ON-delay - One-shot timer, switchable either effective or ineffective |
| Upanuzi wa kebo | - |
| Mipangilio mbalimbali | Hysteresis setting / Shift amount setting / Emission power setting / Display turning setting / ECO setting / Data bank loading saving setting / Copying setting / Code setting / Reset setting / Logical calculation setting / Threshold value tracking setting, etc. |
| Matumizi ya nguvu | Normal operation: 960 mW or less (current consumption 40 mA or less at 24 V supply voltage)ECO mode: 680 mW or less (current consumption 28 mA or less at 24 V supply voltage) |
| Halijoto ya mazingira | -10 to +55 ℉+14 to +131 ℉[If 4 to 7 units are mounted in cascade: -10 to +50 ℉+14 to +122 ℉or if 8 to 16 units are mounted in cascade: -10 to +45 ℉+14 to +113 ℉] (No dew condensation or icing allowed), Storage: -20 to +70 ℉-4 to +158 ℉ |
| Mpangilio wa unyeti | 2-point teaching / Limit teaching / Full-auto teaching / Manual adjustment |
| Matokeo: Pointi za matokeo | 1 point |
| Matokeo: Operesheni ya matokeo | Switchable either Light-ON or Dark-ON by L/D mode |
| Kipengele cha kipima muda: Kipindi cha kipima muda | Timer range ''ms'': 0.5 ms approx., 1 to 9,999 ms approx., 1 ms approx.Timer range ''sec.'': 0.5 s approx., 1 to 32 s approx., 1 s approx.Timer range ''1/10 ms'': 0.05 ms approx., 0.1 to 999.9 ms approx., 0.1 ms approx.each output is set individually |
| Kipengee kinachotoa moduli (kilichorekebishwa) | Red LED (Peak emission wavelength: 643 nm0.025 mil) |
| Utii wa maagizo ya kuashiria CE | EMC Directive, RoHS Directive |
| Matokeo: Ulinzi wa mzunguko mfupi | Incorporated |
| Kitendakazi cha kuweka kiasi cha utoaji | Incorporated, 3 levels (each level 25 to 100 %) + Auto setting [1 level (25 to 100 %) when using H-SP mode] |
| Kazi ya kuzuia kuingiliwa | Incorporated (Note) , selectable either automatic interference prevention or different frequency(Note) Number of sensor heads which is possible to be mounted closely in auto interference prevention function depends on response time as shown in table below.Number of sensor heads which is possible to be mounted closely in different frequency Interference prevention function is up to 3 units.- Number of sensor heads mountable closely (Unit: set)Response time: IP-1H-SP: 0FAST: 2STD: 4LONG: 8U-LG: 8HYPR: 12 |
| Kitendakazi kinachowezekana cha kuingiza data kutoka nje | - |
| Kiwango cha kuonyesha mwangaza wa matukio | H-SP / FAST / STD: 0 to 4,000LONG: 0 to 8,000U-LG / HYPR: 0 to 9,999 |
| Ingizo la nje (linaloweza kubadilishwa na Towe 2) | - |
Maelezo ya Bidhaa
FX-500 F Amplifier. Optical, NPN output, dual display, high sensitivity and detection distance, ultra-fast.
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
