UEZ11

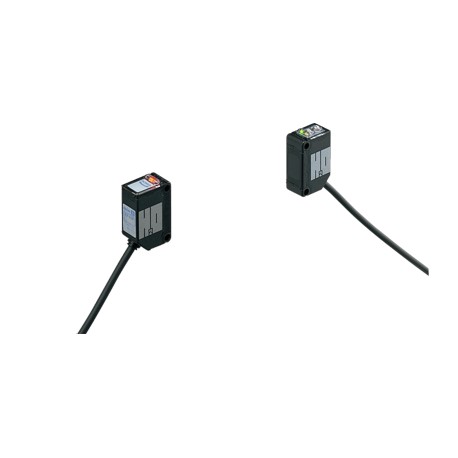

UEZ11 EZ11 EZ-11 PANASONIC Water detection sensor, 5 m, 12-24V DC, NPN, cable
$0.00USD
3769 kwenye hisa
Vipimo Muhimu
Bidhaa:Water Detection Sensor
Matokeo:NPN open-collector transistor・Maximum sink current: 100 mA・Applied voltage: 30 V DC or less (between output and 0 V)・Residual voltage: 1.5 V or less (at 100 mA sink current)0.4 V or less (at 16 mA sink current)
Uzito:Emitter: 45 g approx., Receiver: 50 g approx.
Maelezo:NPN output
Taarifa za Msambazaji
PANASONIC
Bidhaa: 4316
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Bidhaa | Water Detection Sensor |
| Matokeo | NPN open-collector transistor・Maximum sink current: 100 mA・Applied voltage: 30 V DC or less (between output and 0 V)・Residual voltage: 1.5 V or less (at 100 mA sink current)0.4 V or less (at 16 mA sink current) |
| Uzito | Emitter: 45 g approx., Receiver: 50 g approx. |
| Maelezo | NPN output |
| Nyenzo | Polycarbonate |
| Kifaa cha ziada | Adjusting screwdriver: 1 pc. |
| Vipimo | W12 x H31 x D20 mmW0.472 x H1.221 x D0.787 in |
| Ulinzi | IP67 (IEC) |
| Nambari ya Sehemu | EZ-11 |
| Jina la bidhaa | Water Detection Sensor EZ-10 |
| Muda wa majibu | 12 ms or less |
| Masafa ya kuhisi | 5 m16.404 ft(without container or pipe)(Note):The sensing range shortens depending on the thickness, material, color, etc., of the container or pipe. |
| Nambari ya Bidhaa | EZ-11 |
| Kitu cha kuhisi | ø12 mmø0.472 mmor more liquid which contains water, or opaque object(Note):If there are two slit masks on both sides, the size of those slit masks represents the min. sensing object. |
| Volti ya usambazaji | 12 to 24 V DC ± 10 % Ripple P-P 10 % or less |
| Unyevu wa mazingira | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Kipengee kinachotoa | Infrared LED (modulated) |
| Upinzani wa mshtuko | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each |
| Mwangaza wa mazingira | Incandescent light: 3,000 ℓx or less at the light-receiving face |
| Halijoto ya mazingira | 0 to +55 ℃+32 to +131℉(No dew condensation allowed), Storage: -30 to +70 ℃-22 to +158℉ |
| Matumizi ya sasa | Emitter: 25 mA or less, Receiver: 25 mA or less |
| Kirekebishaji cha unyeti | Continuously variable adjuster |
| Upinzani wa mtetemo | 10 to 500 Hz frequency, 3 mm0.118 indouble amplitude (20 G max.) in X, Y and Z directions for two hours each |
| Upinzani wa insulation | 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Matokeo: Operesheni ya matokeo | Switchable either Light-ON or Dark-ON |
| Ustahimilivu wa volteji | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Matokeo: Aina ya matumizi | DC-12 or DC-13 |
| Utii wa maagizo ya kuashiria CE | EMC Directive, RoHS Directive |
| Matokeo: Ulinzi wa mzunguko mfupi | Switchable either Light-ON or Dark-ON |
Maelezo ya Bidhaa
Liquid detection sensor, range 5 m, power 12-24 VDC, NPN output, cable 2m
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
