UEX14BPN

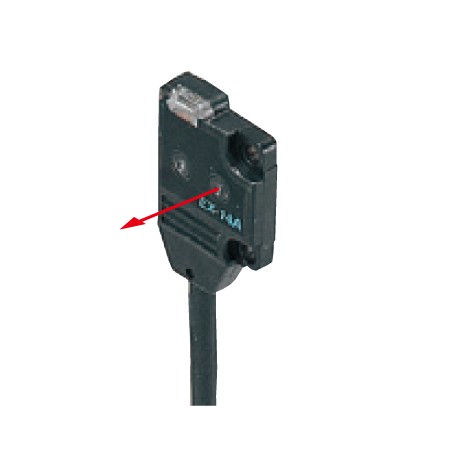

UEX14BPN EX14BPN EX-14B-PN PANASONIC UZB16025, diffus reflective type, 25mm, Dark-ON, PNP, cable 2m
$0.00USD
4538 kwenye hisa
Vipimo Muhimu
Bidhaa:Ultra-slim Photoelectric Sensor
Kebo:0.1 mm23-core (emitter: 2-core) cabtyre cable, 2 m6.562 ftlong
Matokeo:PNP open-collector transistor- Maximum source current: 50 mA- Applied voltage: 30 V DC or less (between output and +V)- Residual voltage: 2 V or less (at 50 mA source current), 1 V or less (at 16 mA source current)
Uzito:Net weight: 20 g approxGross weight: 40 g approx
Taarifa za Msambazaji
PANASONIC
Bidhaa: 4316
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Bidhaa | Ultra-slim Photoelectric Sensor |
| Kebo | 0.1 mm23-core (emitter: 2-core) cabtyre cable, 2 m6.562 ftlong |
| Matokeo | PNP open-collector transistor- Maximum source current: 50 mA- Applied voltage: 30 V DC or less (between output and +V)- Residual voltage: 2 V or less (at 50 mA source current), 1 V or less (at 16 mA source current) |
| Uzito | Net weight: 20 g approxGross weight: 40 g approx |
| Maelezo | Convergent reflective (Diffused beam type) [Front sensing] |
| Nyenzo | Enclosure: Polyethylene terephthalateLens: Polyalylate |
| Kifaa cha ziada | Mounting screws: 1 set |
| Hysteresis | 15 % or less of operation distance(Note) The sensing range and the hysteresis are specified for white non-glossy paper (50 × 50 mm 1.969 × 1.969 in) as the object. |
| Ulinzi | IP67 (IEC) |
| Nambari ya Sehemu | EX-14B-PN |
| Jina la bidhaa | Ultra-slim Photoelectric Sensor EX-10 |
| Muda wa majibu | 0.5 ms or less |
| Masafa ya kuhisi | 2 to 25 mm 0.079 to0.984 in(Conv. point: 10 mm 0.394 in)(Note) The sensing range and the hysteresis are specified for white non-glossy paper (50 × 50 mm 1.969 ×1.969 in) as the object. |
| Nambari ya Bidhaa | EX-14B-PN |
| Volti ya usambazaji | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Upanuzi wa kebo | Extension up to total 50 m164.042 ftis possible with 0.3 mm2, or more, cable. |
| Unyevu wa mazingira | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Kipengee kinachotoa | Red LED (Peak emission wavelength: 680 nm0.027 mil, modulated) |
| Kiwango cha uchafuzi wa mazingira | 3 (Industrial environment) |
| Upinzani wa mshtuko | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each |
| Mwangaza wa mazingira | Incandescent light: 3,000 lx or less at the light-receiving face |
| Halijoto ya mazingira | -25 to +55 ℃ -13 to +131 ℉ (No dew condensation or icing allowed), Storage: -30 to +70 ℃ -22 to +158 ℉ |
| Matumizi ya sasa | 13 mA or less |
| Kitu cha chini cha kuhisi | ø0.1 mmø0.004 incopper wire (Completely beam interrupted object) (Setting distance: 10 mm0.394 in) |
| Kiashiria cha uendeshaji | Orange LED (lights up when the output is ON) |
| Kiashiria cha uthabiti | Green LED (lights up under stable light received condition or stable dark condition) |
| Upinzani wa mtetemo | 10 to 500 Hz frequency, 3 mm0.118 indouble amplitude (20 G max.) in X, Y and Z directions for two hours each |
| Upinzani wa insulation | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Kiashiria cha miale ya tukio | - |
| Ustahimilivu wa volteji | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Matokeo: Aina ya matumizi | DC-12 or DC-13 |
| Utii wa maagizo ya kuashiria CE | EMC Directive, RoHS Directive |
| Matokeo: Ulinzi wa mzunguko mfupi | Incorporated |
| Kurudia (kuelekea mhimili wa kuhisi) | 0.1 mm0.004 inor less |
Maelezo ya Bidhaa
Ultra-miniature photoelectric sensor, diffuse reflection, front detection, range 2 to 25 mm, operation in darkness, PNP, cable 2m, dimensions 13 x 16 x 3.5 mm.
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
