UDPHL154

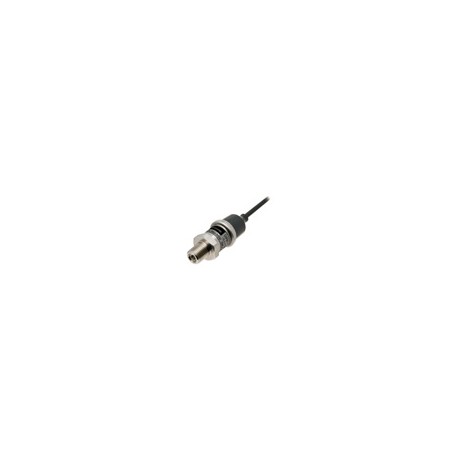

UDPHL154 DPH-L154 PANASONIC Sensor head DPH-L154 for positive pressure, 0 to 50MPa, R1/4 male thread, cable ..
$0.00USD
4853 kwenye hisa
Vipimo Muhimu
Bidhaa:Head-separated Dual display Digital Pressure Sensor [For gas & liquid]
Kebo:0.2 mm23-core heat resistant cabtyre cable 2 m3.562 ftlong
Tamko:Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃+73.4 ℉.The sensor head can be used independently.Oil is used in the factory inspection process for models DPH-L114 and DPH-L154. There may be some residual oil inside the pressure port.
Uzito:Net weight : 100 g approx., Gross weight : 150 g approx.
Taarifa za Msambazaji
PANASONIC
Bidhaa: 4316
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Bidhaa | Head-separated Dual display Digital Pressure Sensor [For gas & liquid] |
| Kebo | 0.2 mm23-core heat resistant cabtyre cable 2 m3.562 ftlong |
| Tamko | Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃+73.4 ℉.The sensor head can be used independently.Oil is used in the factory inspection process for models DPH-L114 and DPH-L154. There may be some residual oil inside the pressure port. |
| Uzito | Net weight : 100 g approx., Gross weight : 150 g approx. |
| Maelezo | Sensor head |
| Nyenzo | Diaphragm : Stainless steel (SUS603), Pressure port : Stainless steel (SUS304), Throttle : Stainless steel (SUSXM7) |
| Ulinzi | IP67 (IEC) |
| Vifaa | Connector (e-CON) : 1 pc. |
| Nambari ya Sehemu | DPH-L154 |
| Jina la bidhaa | Head-separated Dual display Digital Pressure Sensor [For gas & liquid] DPC-L100 / DPH-L100 |
| Lango la shinikizo | R1/4 male thread (throttle embeded) |
| Muda wa majibu | 1 ms or less |
| Nambari ya Bidhaa | DPH-L154 |
| Volti ya usambazaji | 9 to 36 V DC[9 to 32 V DC when using the attached connector (e-CON)] |
| Upanuzi wa kebo | Extension up to total 10 m32.808 ftis possible with 0.2 mm2, or more, cable. |
| Unyevu wa mazingira | 35 to 85 % RH, Storage : 35 to 85 % RH |
| Kioevu kinachotumika | Gases and fluids that do not corrode stainless steel SUS630, SUS304, or SUSXM7 |
| Mbinu ya kutuliza | Capacitor earth (Enclosure-supply terminal) |
| Upinzani wa mshtuko | 1,000 m/s2acceleration in X, Y and Z directions three times each |
| Aina ya shinikizo | Sealed gauge pressure(Note): The sensor's internal mechanism is sealed based on an air pressure of 1,013 hPa. |
| Mbinu ya kuunganisha | Connector |
| Halijoto ya mazingira | -20 to +80 ℃ (Pressure port: -20 to +125 ℃\n-4 to +257 ℉, No dew condensation or icing allowed),\n Storage: -30 to +100 ℃-22 to +212 ℉\n[e-CON connector (accesory):-20 to +75 ℃\n-4 to +167 ℉\n(Storage: -30 to +75 ℃-22 to +167 ℉)] |
| Matumizi ya sasa | 20 mA or less |
| Kiwango cha shinikizo kilichokadiriwa | 0 to +50 MPa |
| Upinzani wa mtetemo | 10 to 2,000 Hz frequency, acceleration 200 m/s2, in X direction for four hours, in Y and Z directions for two hours each(Note): The X, Y, and Z directions are defined as follows : |
| Pato la volteji ya analogi | Output voltage: 1 to 5 V DC (over rated pressure range)\n Accuracy: ±1.0 % F.S. (at 23 ±2 ℃+73.4 ±35 ℉)\n ±2.0 % F.S. (at -20 to 125 ℃-4 to +257 ℉)\n (including linearity, hysteresis and repeatability) |
| Upinzani wa insulation | 100 MΩ, or more, with 50 V DC megger between all supply terminals connected together and enclosure |
| Kanuni zinazotumika | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations) |
| Kiwango cha wastani cha halijoto | -20 to +125 ℃-4 to +257 ℉ |
| Ustahimilivu wa volteji | 150 V AC for one min. between all supply terminals connected together and enclosure |
| Ustahimilivu wa shinikizo | 75 MPa |
Maelezo ya Bidhaa
Sensor head, positive pressure. 0 to 50MPa. R1/4 male pressure port.
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
