UDP125102N

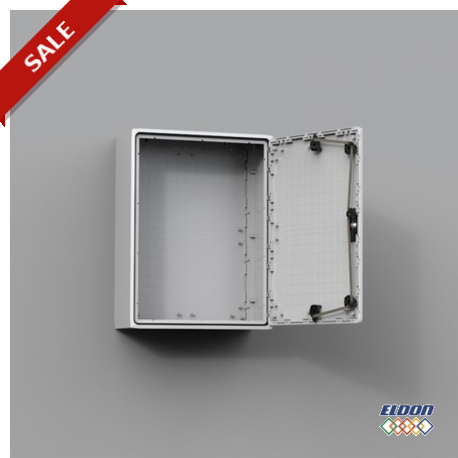

UDP125102N ELDON Wall mounted, 500+750x1000x320
$0.00USD
3453 kwenye hisa
Vipimo Muhimu
Dokezo:Plain double door
Mwili::Modular moulded, with rear fixing. Direct fixing to the wall or by use of wall mounted brackets, to a pole by use of EPF or to the floor by use of the plinth UPP or DIN-base UAF and UMPS. In single plain door enclosures, sealing is ensured by an EPDM gasket glued against the frame.
Kina:320 mm
Mlango::Flush mounted door with or without window and 100º opening. For larger sizes a door support is supplied for easier closing. In double door enclosures, sealing is ensured by an injected one piece polyurethane gasket.
Taarifa za Msambazaji
ELDON
Bidhaa: 4827
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Dokezo | Plain double door |
| Mwili: | Modular moulded, with rear fixing. Direct fixing to the wall or by use of wall mounted brackets, to a pole by use of EPF or to the floor by use of the plinth UPP or DIN-base UAF and UMPS. In single plain door enclosures, sealing is ensured by an EPDM gasket glued against the frame. |
| Kina | 320 mm |
| Mlango: | Flush mounted door with or without window and 100º opening. For larger sizes a door support is supplied for easier closing. In double door enclosures, sealing is ensured by an injected one piece polyurethane gasket. |
| Kufuli: | Premounted handle suitable for all types of half cylinder locks (standard depth of 40 mm). Five locking points (three points in 500 mm width enclosures). |
| Upana | 1000 mm |
| Urefu | 500+750 mm |
| Uzito | 41,00 Kg |
| Maliza: | RAL 7035, precoloured raw material. |
| Uwasilishaji: | Enclosure with door, fixing screws for the mounting plate and wall mounting brackets. (Lock cylinder is not included in the delivery). |
| Nyenzo: | Fibre-glass reinforced polyester. UDPT viewing area: polycarbonate. |
| Idhini: | CE, CSA, GOST and cULus_listed. For further approvals, please contact nVent HOFFMAN`s sales department. |
| Ulinzi: | Complies with IP 65 TYPE 4, 4X, 12, 13 for single door enclosures / IP 54 TYPE 4, 4X, 12, 13 for double door and transparent door enclosures. Impact resistance IK 10 (IK 07 for enclosures with transparent door). |
| Nambari ya milango | 2 |
| Sifa | |
| Sifa: | Self extinguishing and halogen free. Double isolated according to EN61439-1. Rated insulation voltage Ui=1000V. |
| Upinzani wa joto: | -50°C to 70°C in continuous use (peak temperatures up to 150ºC). |
Maelezo ya Bidhaa
More details
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
The polyester range of modular enclosures, conforms to IP 65 for single door and IP 54 for double door enclosures. The modular enclosures are a fibre-glass reinforced polyester design with double insulation offering the users maximum safety. Different modular enclosures can be combined together to achieve larger configurations.
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
