UCS 145-125-F-CCD 7035

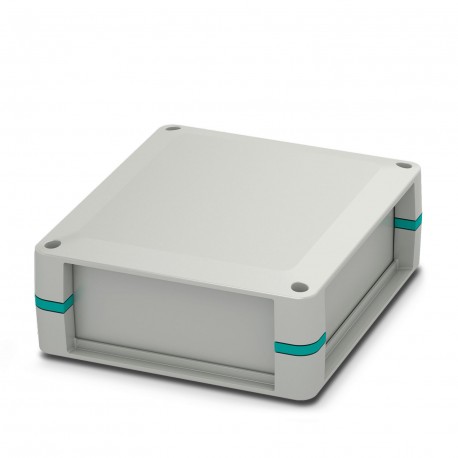

UCS 145-125-F-CCD 7035 2203447 PHOENIX CONTACT Electronic housing
$0.00USD
3648 kwenye hisa
Vipimo Muhimu
:Mounting of PCB on corner feeder: 0.4 - 0.5 Nm / 500 - 1000 rpm
Aina:Flat design (CCD)
Kina:47 mm
Nguvu:20 N
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Mounting of PCB on corner feeder: 0.4 - 0.5 Nm / 500 - 1000 rpm | |
| Aina | Flat design (CCD) |
| Kina | 47 mm |
| Nguvu | 20 N |
| Upana | 145 mm |
| Urefu | 125 mm |
| Matokeo | Test passed |
| Upeo | 0.15 mm (10 Hz ... 58.1 Hz) |
| Masafa | 10 - 150 - 10 Hz |
| Vipimo | IEC 60068-2-6:2007-12 |
| Umbo la mapigo | Half-sine |
| Kasi ya kufagia | 1 octave/min |
| Halijoto | 850 °C |
| Kuongeza kasi | 2g (58.1 Hz ... 150 Hz) |
| Aina ya makazi | Universal housings |
| Aina ya bidhaa | Complete housing |
| Dokezo la mkutano | The housing can be opened a maximum of 10 times. |
| Aina ya kupachika | Screw mounting |
| Unene wa PCB | 0.8 mm ... 3 mm |
| Muda wa jaribio | 1 h |
| Urefu wa kuanguka | 50 cm |
| Mfululizo wa makazi | UCS |
| Familia ya bidhaa | UCS 145-125 |
| Muda wa mshtuko | 11 ms |
| Rangi (Nyumba) | light gray (RAL 7035) |
| Maelekezo ya majaribio | X-, Y- and Z-axis |
| Marekebisho ya makala | 00 |
| Nyenzo za makazi | PC |
| Kipengele cha kupunguza | 1 |
| Muda wa kuambukizwa | 30 s |
| Nafasi ya kupachika | vertical |
| Usambazaji wa nguvu | 11 W |
| Jumla ya uso wa PCB | 12000 mm² |
| Aina ya kifaa cha kupachika PCB | Bolt mounting |
| Aina ya kifungashio | Box packaging |
| Halijoto ya mazingira | 20 °C |
| Mchoro wa vipimo | |
| Nyenzo za kuhami joto | PC |
| Dokezo kwenye vishikilia PCB | This product is prepared for a printed-circuit board. Additional printed-circuit boards can be mounted using adhesive pads (accessories). |
| Dokezo kwenye programu | Attach the adhesive pads: Make sure that the surface of the housing is clean, dry, and free of grease. Temperature range: +18°C ... +30°C / Closing pressure force: 60 N / Closing pressure time: 3 s |
| Rangi (Kiingilio cha kona) | turquoise green (RAL 5018) |
| Idadi ya vishikiliaji vya PCB | 1 |
| Nambari ya IP ya juu zaidi ya kufikia | IP40 |
| Muda wa jaribio kwa kila mhimili | 2.5 h |
| Sifa za uso | untreated |
| Kuimarisha torque/kasi | Screw connection between housing halves: 1.2 - 1.4 Nm / 500 - 1000 rpm |
| CTI kulingana na IEC 60112 | 225 |
| Nafasi za uingizaji hewa zipo | no |
| Halijoto ya kawaida (mkusanyiko) | -5 °C ... 100 °C |
| Idadi ya mishtuko kwa kila mwelekeo | 3 |
| Halijoto ya mazingira (uendeshaji) | -40 °C ... 105 °C (depending on power dissipation) |
| Unyevu wa jamaa (uhifadhi/usafiri) | 80 % |
| Matokeo, kiwango cha ulinzi, msimbo wa IP | IP40 |
| Ukadiriaji wa kuwaka kulingana na UL 94 | V0 |
| Halijoto ya kawaida (uhifadhi/usafiri) | -40 °C ... 55 °C |
Maelezo ya Bidhaa
Complete enclosure for printed circuit boards, fixed in angular inserts, includes housing halves, closed side walls, angular inserts with plate attachment, housing screws and board attachment, light g
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
