UCS 125-87-H-CCD 9005

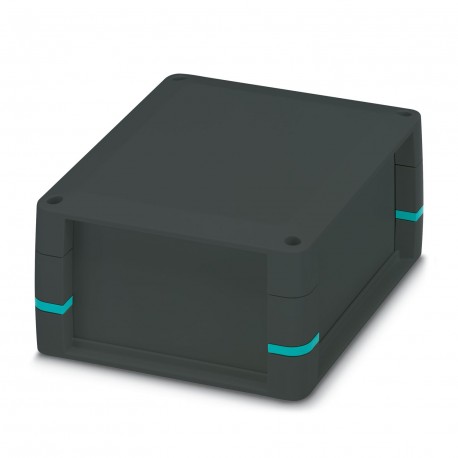

UCS 125-87-H-CCD 9005 2203446 PHOENIX CONTACT Electronic housing
$0.00USD
4591 kwenye hisa
Vipimo Muhimu
:Mounting of PCB on corner feeder: 0.4 - 0.5 Nm / 500 - 1000 rpm
Aina:Tall design (CCD)
Kina:67 mm
Nguvu:20 N
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Mounting of PCB on corner feeder: 0.4 - 0.5 Nm / 500 - 1000 rpm | |
| Aina | Tall design (CCD) |
| Kina | 67 mm |
| Nguvu | 20 N |
| Upana | 125 mm |
| Urefu | 87 mm |
| Matokeo | Test passed |
| Upeo | 0.15 mm (10 Hz ... 58.1 Hz) |
| Masafa | 10 - 150 - 10 Hz |
| Vipimo | IEC 60068-2-6:2007-12 |
| Umbo la mapigo | Half-sine |
| Kasi ya kufagia | 1 octave/min |
| Halijoto | 850 °C |
| Kuongeza kasi | 2g (58.1 Hz ... 150 Hz) |
| Aina ya makazi | Universal housings |
| Aina ya bidhaa | Complete housing |
| Dokezo la mkutano | The housing can be opened a maximum of 10 times. |
| Aina ya kupachika | Screw mounting |
| Unene wa PCB | 0.8 mm ... 3 mm |
| Muda wa jaribio | 1 h |
| Urefu wa kuanguka | 50 cm |
| Mfululizo wa makazi | UCS |
| Familia ya bidhaa | UCS 125-87 |
| Muda wa mshtuko | 11 ms |
| Rangi (Nyumba) | black (RAL 9005) |
| Maelekezo ya majaribio | X-, Y- and Z-axis |
| Marekebisho ya makala | 00 |
| Nyenzo za makazi | PC |
| Kipengele cha kupunguza | 1 |
| Muda wa kuambukizwa | 30 s |
| Nafasi ya kupachika | vertical |
| Usambazaji wa nguvu | 10.7 W |
| Jumla ya uso wa PCB | 6000 mm² |
| Aina ya kifaa cha kupachika PCB | Bolt mounting |
| Aina ya kifungashio | Box packaging |
| Halijoto ya mazingira | 20 °C |
| Mchoro wa vipimo | |
| Nyenzo za kuhami joto | PC |
| Dokezo kwenye vishikilia PCB | This product is prepared for a printed-circuit board. Additional printed-circuit boards can be mounted using adhesive pads (accessories). |
| Dokezo kwenye programu | Attach the adhesive pads: Make sure that the surface of the housing is clean, dry, and free of grease. Temperature range: +18°C ... +30°C / Closing pressure force: 60 N / Closing pressure time: 3 s |
| Rangi (Kiingilio cha kona) | turquoise green (RAL 5018) |
| Idadi ya vishikiliaji vya PCB | 1 |
| Nambari ya IP ya juu zaidi ya kufikia | IP40 |
| Muda wa jaribio kwa kila mhimili | 2.5 h |
| Sifa za uso | untreated |
| Kuimarisha torque/kasi | Screw connection between housing halves: 1.2 - 1.4 Nm / 500 - 1000 rpm |
| CTI kulingana na IEC 60112 | 225 |
| Nafasi za uingizaji hewa zipo | no |
| Halijoto ya kawaida (mkusanyiko) | -5 °C ... 100 °C |
| Idadi ya mishtuko kwa kila mwelekeo | 3 |
| Halijoto ya mazingira (uendeshaji) | -40 °C ... 105 °C (depending on power dissipation) |
| Unyevu wa jamaa (uhifadhi/usafiri) | 80 % |
| Matokeo, kiwango cha ulinzi, msimbo wa IP | IP40 |
| Ukadiriaji wa kuwaka kulingana na UL 94 | V0 |
| Halijoto ya kawaida (uhifadhi/usafiri) | -40 °C ... 55 °C |
Maelezo ya Bidhaa
Complete enclosure for printed circuit boards, fixed in angular inserts, includes housing halves, closed side walls, angular inserts with plate attachment, screws for housing and board fixing, black h
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
