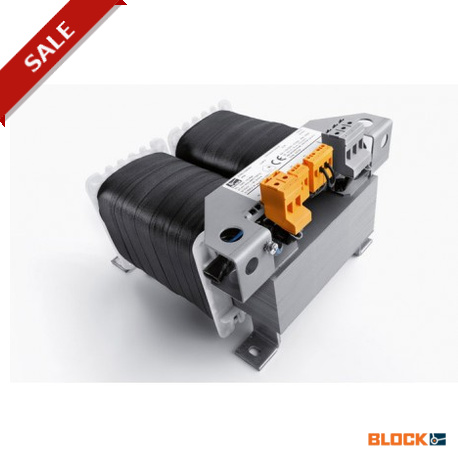

TTML 4000/230

General Data Rated input voltage 230 Vac Rated output voltage 115 and 230 Vac Rated power 3150 ‑ 8000 VA Insulation class B Maximum ambient temperature 40 °C Efficiency up to 97 % Degree of protection IP 00 Advantages Safe galvanic isolation PTC resistor built into every coil to set up an external monitoring unit for protection against overload Very good switch‑on behaviour thanks to reduced starting currents Very high efficiency Very low short circuit voltage Very low idle current Very good corrosion protection and low noise thanks to BLOCKIMPEX vacuum impregnation Contact protected screw connection terminals complying with UVV BGV A3 Low height Standards Isolating transformer for supply of medical roomsto: VDE 0570 Part 2‑15, VDE 0100 Part 710, DIN EN 61558‑2‑15, EN 61558‑2‑15 Isolating transformer for supply of medical rooms of the User group 2.
