TP121STM/100630003 S00069

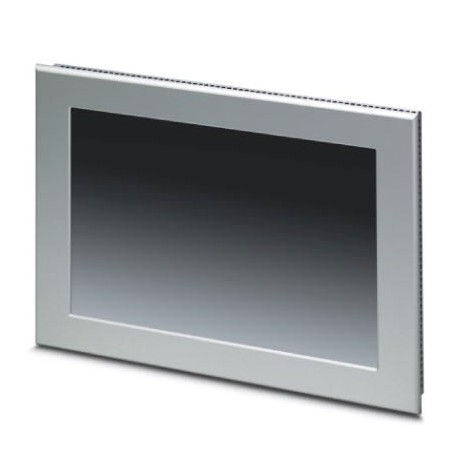

TP121STM/100630003 S00069 2400891 PHOENIX CONTACT Touch panel with 30.7 cm/12.1" TFT-display (analog resisti..
$0.00USD
4308 kwenye hisa
Vipimo Muhimu
GTIN:4055626109886
Ufunguo wa kuagiza:2400891
(Onyesho):1x COM (RS-422/485)
(Jumla):NEMA 4X
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4055626109886 |
| Ufunguo wa kuagiza | 2400891 |
| (Onyesho) | 1x COM (RS-422/485) |
| (Jumla) | NEMA 4X |
| Kitengo cha kufungasha | 1 |
| RAM (Onyesho) | 512 MB LPDDR SDRAM |
| Mshtuko (Jumla) | 15g, according to IEC 60068-2-27 |
| Nafasi (Onyesho) | 1x SD |
| ETIM 4.0 (eCl@ss) | EC001412 |
| ETIM 5.0 (eCl@ss) | EC001412 |
| ETIM 6.0 (eCl@ss) | EC001412 |
| ETIM 7.0 (eCl@ss) | EC001412 |
| Mtandao (Onyesho) | 1 x Ethernet (10/100 Mbps), RJ45 |
| UNSPSC 13.2 (ETIM) | 43211904 |
| Rangi (Vipimo) | 65536 colors |
| Kichakataji (Onyesho) | Arm®Cortex®-A8, 800 MHz |
| Mfumo wa basi (Onyesho) | DualCAN |
| Nambari ya ushuru maalum | 84714100 |
| Onyesho (Vipimo) | 30.7 cm/12.1" TFT |
| Violesura (Onyesho) | 2x USB host 2.0 |
| Mshtuko (Usambazaji wa Kifaa) | 15g, according to IEC 60068-2-27 |
| Hifadhi ya wingi (Onyesho) | NAND-Flash, 256 MB |
| Uzito (Data ya Kompyuta) | 1700 g |
| Mwangaza (Vipimo) | 320 cd/m² typical (adjustable) |
| Programu ya mtumiaji (Onyesho) | Open platform |
| Saa ya wakati halisi (Onyesho) | Yes |
| Mwangaza wa Nyuma (Vipimo) | LED |
| Mfumo wa uendeshaji (Onyesho) | Windows®Embedded Compact 7 |
| (Viwango na Kanuni) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| eCl@ss 5.1 (Uainishaji) | 27330200 |
| eCl@ss 6.0 (Uainishaji) | 27242300 |
| eCl@ss 7.0 (Uainishaji) | 27242302 |
| eCl@ss 8.0 (Uainishaji) | 27242302 |
| eCl@ss 9.0 (Uainishaji) | 27330201 |
| Aina ya kupachika (Data ya kompyuta) | Front installation |
| Teknolojia ya kugusa (Vipimo) | analog resistive (polyester) |
| Kiwango cha ulinzi (Jumla) | IP65 (front), IP20 (back) |
| Sehemu ya juu ya pembe ya kusoma (Vipimo) | 88 ° |
| Ubora wa skrini (Vipimo) | 1280 x 800 Pixel(s) (WXGA) |
| Pembe ya kusoma kushoto (Vipimo) | 88 ° |
| Mtetemo (uendeshaji) (Jumla) | 1g, according to EN 60068-2-6 |
| Nyenzo za makazi (Data ya kompyuta) | Steel sheet, zinc-plated |
| Pembe ya kusoma kulia (Vipimo) | 88 ° |
| Sehemu ya chini ya pembe ya kusoma (Vipimo) | 88 ° |
| Muda wa huduma ya betri (Onyesho) | 5 years (typical) |
| Taa ya nyuma ya onyesho MTBF (Vipimo) | 50000 h |
| Bamba la mbele la nyenzo (Data ya kompyuta) | Aluminum (natural anodized) |
| Mtetemo (uendeshaji) (Usambazaji wa kifaa) | 1g, according to EN 60068-2-6 |
| RoHS ya China (Viwango na Kanuni) | Environmentally Friendly Use Period = 15; |
| Kitengo cha usambazaji wa umeme (Hali ya mazingira) | 24 V DC ±20 % |
| Halijoto ya mazingira (uendeshaji) (Jumla) | 0 °C ... 50 °C |
| Unyevu unaoruhusiwa (uendeshaji) (Jumla) | 20 % ... 85 % |
| Vipimo vya nje: upana, urefu, kina (Kumbuka) | 330 mm x 225 mm x 5 mm (Dimensions of the front plate) |
| Kizuizi cha matumizi (Data Muhimu za Kibiashara) | EMC: class A product, see manufacturer's declaration in the download area |
| Matumizi ya kawaida ya sasa (Hali ya mazingira) | 0.8 A |
| Halijoto ya kawaida (uhifadhi/usafiri) (Jumla) | -25 °C ... 70 °C |
| Vipimo vya usakinishaji: upana, urefu, kina (Kumbuka) | 322 mm x 217 mm x 48 mm (Mounting cutout, depth with bus if bus system present in the device) |
Maelezo ya Bidhaa
Touchpad with 30.7 cm / 12.1"-TFT-display (analog-resistive (polyester)), 1280 x 800 pixel(s) (WXGA), 65536 colors, Arm®Cortex®-A8, 800 MHz, 2x USB Host 2.0, 1x COM (RS-232), 1x COM (RS-422/485), 1x E
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
Touch panel with 30.7 cm/12.1" TFT-display (analog resistive (polyester)), 1280 x 800 Pixel(s) (WXGA), 65536 colors, Arm®Cortex®-A8, 800 MHz, 2x USB host 2.0, 1x COM (RS-232), 1x COM (RS-422/485), 1 x Ethernet (10/100 Mbps), RJ45, Windows®Embedded Compact 7 and user software: Open platform. (bus system: DualCAN)
