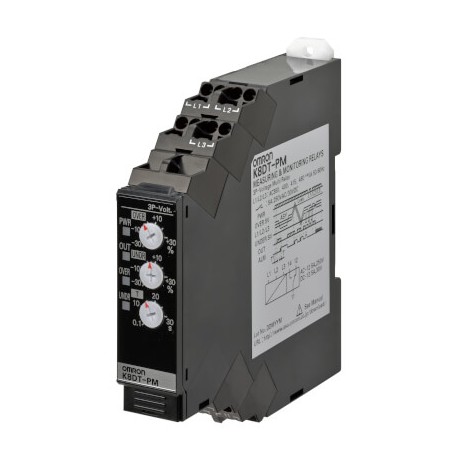

TH2-280X100RD-PM-M12
TH2-280X100RD-PM-M12 AA051352F 679694 OMRON Flat LED Back light (15 mm), active area 280x100 mm, red, 24 VDC..
$5,820.75USD
37 kwenye hisa
Vipimo Muhimu
(Voliti ya awamu tatu na upokezi wa awamu-mfuatano wa awamu-upotevu):Y92A-D1A
EMC (Voliti ya awamu tatu na upokezi wa awamu-mfuatano wa awamu-upotevu):EN 60947-5-1
Kipengee (Voliti ya awamu tatu na upokezi wa awamu ya upotevu wa awamu):K8DT-PM1
Uzito (Voliti ya awamu tatu na upokezi wa awamu ya upotevu wa awamu):Approx. 100 g
Taarifa za Msambazaji
OMRON
Bidhaa: 41472
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| (Voliti ya awamu tatu na upokezi wa awamu-mfuatano wa awamu-upotevu) | Y92A-D1A |
| EMC (Voliti ya awamu tatu na upokezi wa awamu-mfuatano wa awamu-upotevu) | EN 60947-5-1 |
| Kipengee (Voliti ya awamu tatu na upokezi wa awamu ya upotevu wa awamu) | K8DT-PM1 |
| Uzito (Voliti ya awamu tatu na upokezi wa awamu ya upotevu wa awamu) | Approx. 100 g |
| Muonekano (Voliti ya awamu tatu na upokezi wa awamu ya upotevu wa awamu) | Order code |
| Viashiria (Voliti ya awamu tatu na upokezi wa awamu-mfuatano wa awamu-upotevu) | Power (PWR): Green, Output (OUT): Yellow, OVER: Red, UNDR: Red |
| Mzigo wa kuingiza (Voliti ya awamu tatu na upokezi wa awamu-mfuatano wa awamu-upotevu) | 1 A at 250 VAC0.2 A at 48 VDC |
| Upotevu wa awamu (Voliti ya awamu tatu na upotevu wa awamu-mfuatano wa awamu) | 0.1 s max. |
| Fomu ya kutoa (Voliti ya awamu tatu na upokezi wa awamu-mfuatano wa awamu-upotevu) | Relay: SPDT contact outputTransistor: Open collector |
| Weka upya thamani (Voliti ya awamu tatu na upokezi wa awamu ya upotevu wa awamu) | 5% of operating value (fixed) |
| Mzigo wa chini kabisa (Voliti ya awamu tatu na upokezi wa awamu ya upotevu wa awamu) | 5 VDC, 10 mA (reference values) |
| Mbinu ya kuweka upya (Voliti ya awamu tatu na upokezi wa awamu ya upotevu wa awamu) | Automatic reset |
| Nyenzo ya kesi (Voliti ya awamu tatu na upokezi wa awamu-mfuatano wa awamu-upotevu) | PC, UL 94 V-0 |
| Volti iliyokadiriwa (Voliti ya awamu tatu na upokezi wa awamu-mfuatano wa awamu-upotevu) | 24 VDC (maximum voltage: 26.4 VDC) |
| Muda wa uendeshaji (Voliti ya awamu tatu na upokezi wa awamu ya upotevu wa awamu) | ±50 ms (at 25°C and 65% humidity, rated power supply voltage) |
| Mfuatano wa awamu (Voliti ya awamu tatu na upokezi wa awamu ya upotevu wa awamu) | 0.1 s±0.05 s |
| Muda wa matumizi ya umeme (Voliti ya awamu tatu na upokezi wa awamu ya upotevu wa awamu) | 5 A at 250 VAC or 30 VDC: 50,000 operations3 A at 250 VAC or 30 VDC: 100,000 operations |
| Masafa ya kuingiza (Voliti ya awamu tatu na upokezi wa awamu-mfuatano wa awamu-upotevu) | 50/60 Hz |
| Kiwango cha juu cha mkondo (Voliti ya awamu tatu na upokezi wa awamu ya upotevu wa awamu) | 50 mA DC |
| Maisha ya mitambo (Voliti ya awamu tatu na upokezi wa awamu-mfuatano wa awamu-upotevu) | 10 million operations min. |
| Thamani ya uendeshaji (Voliti ya awamu tatu na upokezi wa awamu ya upotevu wa awamu) | Operates at 100% of set value. |
| Usahihi wa kurudia (Voliti ya awamu tatu na upokezi wa awamu ya upotevu wa awamu) | Operating value |
| Viwango vya usalama (Voliti ya awamu tatu na upokezi wa awamu ya upotevu wa awamu) | UL 60947-5-1 (Listing), Korean Radio Waves Act (Act 10564), CCC (GB14048.5), LR (Category ENV1.2) |
| Uwezo wa kupakia kupita kiasi (Voliti ya awamu tatu na upokezi wa awamu ya upotevu wa awamu) | Continuous 528 V |
| Muda wa kufunga wa kuwasha (Voliti ya awamu tatu na upokezi wa awamu ya upotevu wa awamu) | 1 s/5 s (switched by using the DIP switch) |
| Volti ya kuingiza iliyokadiriwa (Voliti ya awamu tatu na upokezi wa awamu-mfuatano wa awamu-upotevu) | Three-phase, three-wire Mode: 200, 220, 230, or 240 VAC |
| Halijoto ya kuhifadhi (Voliti ya awamu tatu na upokezi wa awamu-mfuatano wa awamu-upotevu) | −25 to 65°C (with no condensation or icing) |
| Viwango vinavyotumika (Voliti ya awamu tatu na upokezi wa awamu-mfuatano wa awamu-upotevu) | Conforming standards |
| Kiwango cha ulinzi (Voliti ya awamu tatu na upokezi wa awamu-mfuatano wa awamu-upotevu) | Terminals: IP20 |
| Ukadiriaji wa reli za matokeo (reli ya volteji ya awamu tatu na reli ya upotevu wa awamu-mfuatano wa awamu) | Resistive load |
| Ukubwa katika mm (H × W × D) (Voliti ya awamu tatu na upokezi wa awamu ya upotevu wa awamu) | 90×17.5×90 |
| Ukadiriaji wa matokeo ya transistor (voltage ya awamu tatu na awamu-mfuatano wa awamu-upotevu wa awamu) | Contact form |
| Transista: Mkusanyaji wazi (Kipokezi cha volteji cha awamu tatu na awamu-mfuatano wa awamu-upotevu wa awamu) | K8DT-PM2TN |
| Kiwango cha kuweka muda wa uendeshaji (Voliti ya awamu tatu na upokezi wa awamu ya upotevu wa awamu) | Overvoltage/Undervoltage |
| Halijoto ya uendeshaji iliyoko (Voliti ya awamu tatu na upokezi wa awamu ya upotevu wa awamu) | −20 to 60°C (with no condensation or icing) |
| Kiwango cha mipangilio ya thamani ya uendeshaji (voltage ya awamu tatu na awamu-mfuatano wa awamu-upotevu wa awamu) | Overvoltage−30% to 30% of rated input voltageUndervoltage−30% to 30% of rated input voltageThe rated input voltage can be switched by using the DIP switches. |
| Waya 3 wa awamu 3 200, 220, 230, 240 VAC (Voliti ya awamu tatu na upokezi wa awamu ya upotevu wa awamu) | Relay: SPDT contact output |
| Waya 3 wa awamu 3 380, 400, 415, 480 VAC (Voliti ya awamu tatu na upokezi wa awamu ya upotevu wa awamu) | Relay: SPDT contact output |
Maelezo ya Bidhaa
More details
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
Protect motors and other equipment from unstable voltages in the power supply system. Protect motors and other equipment by detecting overvoltages, undervoltages, phase sequence, and phase loss for three-phase power supplies.
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
