TC ROUTER 3002T-4G

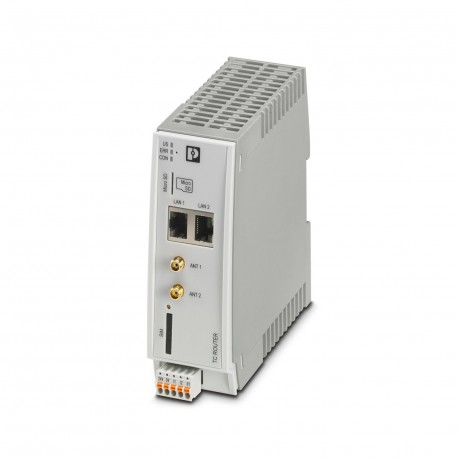

TC ROUTER 3002T-4G 2702528 PHOENIX CONTACT Router
$0.00USD
3744 kwenye hisa
Vipimo Muhimu
:184 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
LTE:CAT4
MTTF:383 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
Kina:127 mm
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| 184 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%) | |
| LTE | CAT4 |
| MTTF | 383 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) |
| Kina | 127 mm |
| Ingizo | ± 2 kV (Test Level 3) |
| Upana | 45 mm |
| Urefu | ≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation) |
| Ishara | Ethernet |
| Antena | 50 Ω impedance SMA antenna socket |
| Volti | 10 V |
| Maoni | Criterion B |
| Dokezo la EMC | EMC: class A product, see manufacturer's declaration in the download area |
| Kiwango cha data | ≤ 150 Mbps (LTE, DL) |
| Aina kuu | Cellular communication |
| Usimamizi | Web-based management, SNMP |
| Seva ya wavuti | yes |
| Maombi | Ethernet |
| Cheti | CE-compliant |
| Kigezo A | Normal operating behavior within the specified limits. |
| Kigezo B | Temporary impairment to operational behavior that is corrected by the device itself. |
| Jina la matokeo | Digital output |
| Aina ya bidhaa | Cellular router |
| Aina ya kupachika | DIN rail mounting |
| Kiolesura cha SIM | 1.8 volt, 3 volt |
| Utambulisho | ISA-S71.04-1985 G3 Harsh Group A |
| Kinga ya kelele | EN 61000-6-2 |
| Usaidizi wa nchi | Europe |
| Ukali wa uwanja | 10 V/m |
| Masafa ya masafa | 2600 MHz (LTE B38) |
| Idadi ya njia | 2 |
| Marekebisho ya makala | 08 |
| Kutokwa hewani | ± 8 kV (Test Level 3) |
| Idadi ya pembejeo | 2 |
| Urefu wa kukatwa | 9.00 mm |
| Mbinu ya muunganisho | Push-in spring connection |
| Utoaji wa mguso | ± 6 kV (Test Level 3) |
| Idadi ya matokeo | 1 |
| Nyenzo (Nyumba) | Plastic |
| Itifaki za usaidizi | ARP, DHCP, PING (ICMP), SNMP V1/V2, SMTP(S), NTP, SSL/TLS, STARTTLS |
| Mchoro wa vipimo | |
| Dokezo kwenye programu | Only for industrial use |
| Itifaki zinaungwa mkono | TCP/IP, UDP/IP, FTP, HTTP(S) |
| Urefu wa maambukizi | 100 m (shielded twisted pair) |
| Kiwango cha ulinzi | IP20 |
| Kutengwa kwa umeme | VCC // LTE // Ethernet // PE |
| Kiwango cha voltage ya usambazaji | 10 V DC ... 30 V DC (Via pluggable Push-in terminal block) |
| Ishara ya kuingiza volteji | 10 V DC ... 30 V DC |
| Ishara ya sasa ya kutoa | ≤ 50 mA (Not short-circuit proof) |
| Maelezo ya kiolesura | GSM / GPRS / EDGE / UMTS / HSPA+ / LTE |
| Viwango/kanuni | EN 61000-4-2 |
| Ishara ya kutoa volteji | 10 V DC ... 30 V DC (depending on the operating voltage) |
| Maelezo ya ingizo | Digital input |
| Matumizi ya juu zaidi ya sasa | 1.7 A |
| Mbinu ya muunganisho wa antena | SMA (female) |
| Kasi ya upitishaji mfululizo | 10/100 Mbps, auto negotiation |
| Rangi (Sehemu ya juu ya nyumba) | light gray (RAL 7035) |
| Ishara ya kubadilisha kiwango cha "1" | 10 V DC ... 30 V DC |
| Matumizi ya kawaida ya sasa | < 200 mA (24 V DC) |
| Utangamano wa sumakuumeme | Conformance with RED Directive 2014/53/EU |
| Halijoto ya mazingira (uendeshaji) | -40 °C ... 70 °C (Maximum transmission power 5 dBm) |
| Unyevu unaoruhusiwa (uendeshaji) | 10 % ... 95 % (non-condensing) |
| Sehemu ya waya/terminal moja, inayonyumbulika | 0.14 mm² ... 1.5 mm² |
| Kondakta/kituo kimoja, kigumu | 0.14 mm² ... 1.5 mm² |
| Halijoto ya kawaida (uhifadhi/usafiri) | -40 °C ... 85 °C |
| Sehemu ya msalaba ya kondakta, inayonyumbulika [AWG] | 26 ... 16 |
| Unyevu unaoruhusiwa (uhifadhi/usafiri) | 10 % ... 95 % (non-condensing) |
| Usambazaji wa nguvu wa kiwango cha juu kwa hali ya kawaida | 4.8 W |
| Uingiliaji kati wa redio unaotolewa katika ac. yenye EN 55011 | Class B, area of application: Industry and residential |
| Volti ya kuingiliwa kwa redio katika acc. na EN 55011 | Class B, area of application: Industry and residential |
| Sehemu ya msalaba ya kondakta, inayonyumbulika, yenye kipete, na kifuniko cha plastiki | 0.25 mm² ... 0.75 mm² |
| Sehemu ya msalaba ya kondakta inayonyumbulika, yenye kipete bila kifuniko cha plastiki | 0.25 mm² ... 1.5 mm² |
Maelezo ya Bidhaa
Industrial 4G LTE Router, Europe Version, Fallback on 3G UMTS/HSPA+ and 2G GPRS/EDGE, 2 Ethernet interfaces, firewall, NAT, IPsec and OpenVPN support, 2 female connectors for SMA-F antennas, SMS and e
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
