TC MGUARD RS4000 4G VPN

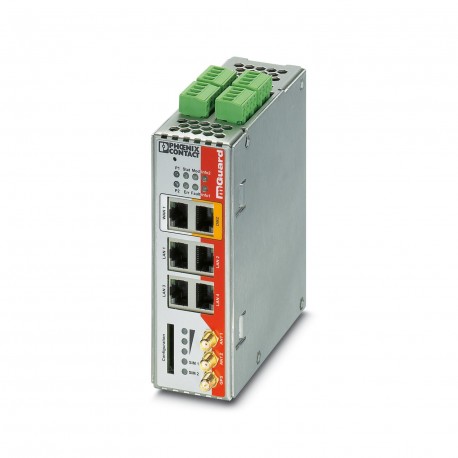

TC MGUARD RS4000 4G VPN 2903586 PHOENIX CONTACT Security Appliance
$0.00USD
4635 kwenye hisa
Vipimo Muhimu
:900 MHz (LTE B8)
LTE:CAT3
MTTF:532 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
Kina:114 mm
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| 900 MHz (LTE B8) | |
| LTE | CAT3 |
| MTTF | 532 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) |
| Kina | 114 mm |
| Ingizo | ± 2.2 kV (Test Level 3) |
| Upana | 45 mm |
| Urefu | ≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation) |
| Ishara | Ethernet |
| Antena | 50 Ω impedance SMA antenna socket |
| Uelekezaji | Standard routing |
| Volti | 10 V |
| Maoni | Criterion B |
| Dokezo la EMC | EMC: class A product, see manufacturer's declaration in the download area |
| Kiwango cha data | ≤ 100 Mbps (LTE, DL) |
| Kuchuja | MAC addresses |
| Aina kuu | Cellular communication |
| Usimamizi | Web-based management, SNMP |
| Seva ya wavuti | yes |
| Maombi | Ethernet |
| Cheti | CE-compliant |
| Kigezo A | Normal operating behavior within the specified limits. |
| Kigezo B | Temporary impairment to operational behavior that is corrected by the device itself. |
| Jina la matokeo | Digital output |
| Aina ya bidhaa | Security router for the DIN rail |
| Aina ya kupachika | DIN rail mounting |
| Ukaguzi wa mtandao | LED bar graph to display receive quality |
| Kiolesura cha SIM | 1.8 volt, 3 volt |
| Uthibitishaji | X.509v3 certificates with RSA or PSK |
| Uadilifu wa data | MD5 |
| Sheria za Firewall | Configurable stateful inspection firewall with full scope of functions |
| Utambulisho | ISA-S71.04-1985 G3 Harsh Group A |
| Kazi za msingi | Router with intelligent firewall and VPN for 10 tunnels (up to 250 supported with optional additional license), CIFS Integrity Monitoring (as an option), metal housing, slot for SD memory card |
| Usaidizi wa nchi | Europe |
| Ukali wa uwanja | 10 V/m |
| Masafa ya masafa | 800 MHz (LTE B20) |
| Idadi ya njia | 6 |
| Marekebisho ya makala | 07 |
| Kutokwa hewani | ± 8 kV (Test Level 3) |
| Idadi ya pembejeo | 3 |
| Urefu wa kukatwa | 7.00 mm |
| Mbinu ya muunganisho | RJ45 |
| Utoaji wa mguso | ± 6 kV (Test Level 3) |
| Idadi ya matokeo | 3 |
| Kukaza torque | 0.56 Nm ... 0.79 Nm |
| Mbinu za usimbaji fiche | DES, 3DES, AES-128, -192, -256 |
| Umbizo/msimbo wa faili | UART/NRZ: 8 Data, 1/2 Stop, None/Even/Odd Parity |
| Nyenzo (Nyumba) | Metal |
| Ulinzi dhidi ya | IP spoofing, DoS and Syn Flood Protection |
| Vivinjari vinavyoungwa mkono | HTTPS support required |
| Kasi ya upitishaji | 10/100 Mbps (auto negotiation) |
| Itifaki za usaidizi | ARP, DHCP, PING (ICMP), SNMP V1, SMTP |
| Kiwango cha uchafuzi wa mazingira | 2 |
| Dokezo kwenye programu | Only for industrial use |
| Itifaki zinaungwa mkono | TCP/IP, UDP/IP, FTP, HTTP |
| Urefu wa maambukizi | 100 m (shielded twisted pair) |
| Ishara ya sasa ya kuingiza data | 5 mA |
| Kiwango cha ulinzi | IP20 |
| Kutengwa kwa umeme | VCC // PE |
| Kiwango cha voltage ya usambazaji | 11 V DC ... 36 V DC (via pluggable COMBICON screw terminal block) |
| Ishara ya kuingiza volteji | 10 V DC ... 30 V DC |
| Ishara ya sasa ya kutoa | ≤ 125 mA (Short-circuit-proof) |
| Maelezo ya kiolesura | GSM / GPRS / EDGE / UMTS / HSPA / LTE (FDD) |
| Idadi ya handaki za VPN | 10 (up to 250 tunnels with additional license as an option) |
| Kurekodi kwa Syslog ya Mbali | on externals server |
| Viwango/kanuni | EN 61000-4-2 |
| Ishara ya kutoa volteji | 10 V DC ... 30 V DC (depending on the operating voltage) |
| Maelezo ya ingizo | Digital input |
| Utoaji wa data ya ngome | max. 124 Mbps (Router mode, default firewall rules, bidirectional throughput) |
| Matumizi ya juu zaidi ya sasa | < 1.8 A (at 11 V DC (incl. 3 x 125 mA for the outputs)) |
| Mbinu ya muunganisho wa antena | SMA (female) |
| Kasi ya upitishaji mfululizo | 9.6; 19.2; 38.4; 57.6; 115.2 kbps |
| Udhibiti/itifaki za mtiririko wa data | Software handshake, Xon/Xoff or hardware handshake RTS/CTS |
| Matumizi ya kawaida ya sasa | < 320 mA (24 V DC) |
| Utangamano wa sumakuumeme | Conformance with EMC Directive 2014/30/EU |
| Halijoto ya mazingira (uendeshaji) | -40 °C ... 60 °C |
| Unyevu unaoruhusiwa (uendeshaji) | 5 % ... 95 % (non-condensing) |
| Mteja wa Itifaki ya Muda wa Mtandao (NTP) | Client |
| Itifaki ya Ugunduzi wa Tabaka la Viungo (LLDP) | As per protocol 802.2 |
| Sehemu ya waya/terminal moja, inayonyumbulika | 0.2 mm² ... 2.5 mm² |
| Kondakta/kituo kimoja, kigumu | 0.2 mm² ... 2.5 mm² |
| Halijoto ya kawaida (uhifadhi/usafiri) | -40 °C ... 70 °C |
| Sehemu ya msalaba ya kondakta, inayonyumbulika [AWG] | 24 ... 14 |
| Hali ya Usalama wa Itifaki ya Intaneti (IPsec) | ESP tunnel / ESP transport |
| Kiolesura cha data ya volteji/usambazaji wa umeme | 1 kV (50 Hz, 1 min.) |
| Usambazaji wa mtandao wa kibinafsi pepe (VPN) | max. 40 Mbps (Router) |
| Kiolesura cha data cha volteji/kiolesura cha data cha jaribio | 1 kV (50 Hz, 1 min.) |
| Usambazaji wa nguvu wa kiwango cha juu kwa hali ya kawaida | 7.68 W |
| Tafsiri ya Anwani ya Mtandao ya 1:1 (NAT) katika VPN | supported |
| Uingiliaji kati wa redio unaotolewa katika ac. yenye EN 55011 | EN 55011 class A industrial area of application |
| Volti ya kuingiliwa kwa redio katika acc. na EN 55011 | EN 55011 class A industrial area of application |
| Usaidizi wa Itifaki ya Usanidi wa Seva ya Nguvu (DHCP) | Server or Relay Agent |
| Haina vitu vinavyoweza kuathiri matumizi ya mipako | VDMA 24364:2018-05 |
| Sehemu ya msalaba ya kondakta, inayonyumbulika, yenye kipete, na kifuniko cha plastiki | 0.25 mm² ... 2.5 mm² |
| Sehemu ya msalaba ya kondakta inayonyumbulika, yenye kipete bila kifuniko cha plastiki | 0.25 mm² ... 2.5 mm² |
Maelezo ya Bidhaa
Security appliance, WAN and 4G mobile phone interface, SD card slot, 10 VPN tunnels, full-function smart firewall, router with NAT/1:1-NAT, optional CIFS integrity monitoring, 4-port managed switch, 2
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
