TC-EC56F-DO16-ESD-A-TRC

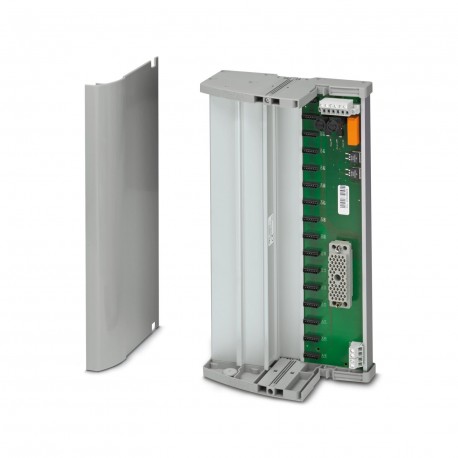

TC-EC56F-DO16-ESD-A-TRC 2904679 PHOENIX CONTACT Module carrier
$0.00USD
3889 kwenye hisa
Vipimo Muhimu
GTIN:4046356872492
Dokezo:Made to Order (non-returnable)
Ufunguo wa kuagiza:2904679
(Jumla):2x green LEDs (PWR1 and PWR2)
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4046356872492 |
| Dokezo | Made to Order (non-returnable) |
| Ufunguo wa kuagiza | 2904679 |
| (Jumla) | 2x green LEDs (PWR1 and PWR2) |
| Kitengo cha kufungasha | 1 pc |
| (Vipimo) | Class I, Zone 2, Group IIC |
| Fuse (Jumla) | 2.5 A on PCB, slow-blow (replaceable) |
| Nchi ya asili | DE (Germany) |
| Mshtuko (Vipimo) | 15g, according to IEC 60068-2-27 |
| Nambari ya ushuru maalum | 85366990 |
| Mshtuko (Muunganisho wa 2) | 15g, according to IEC 60068-2-27 |
| Usimbaji (Muunganisho 1) | 3-3 |
| Uteuzi (Jumla) | Device supply |
| Jina la matokeo (Jumla) | Switching output |
| Aina ya mawasiliano (Jumla) | 1 N/C contact (alarm = open) |
| Insulation (Vipimo) | Basic insulation |
| Jina la muunganisho (Ugavi) | Power supply |
| Uteuzi (Vipimo) | Air clearances and creepage distances |
| Onyesho la hali (Jumla) | 2 x red LED (error) |
| Volti ya kawaida UN (Dokezo) | 24 V DC (21.1 V ... 26.4 V) |
| Urefu wa kukatwa (Ugavi) | 7 mm |
| Mbinu ya muunganisho (Ugavi) | Screw connection |
| Depth (Ambient conditions) | 160 mm |
| Ugavi usiohitajika (Jumla) | yes, decoupled from diodes |
| Upana (Hali ya mazingira) | 304 mm |
| Kiwango cha ulinzi (Dokezo) | IP00 |
| Urefu (Hali ya mazingira) | 170 mm |
| UL, Marekani/Kanada (Vipimo) | UL 61010 Listed |
| (Viwango na Kanuni) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Idadi ya nafasi (Ugavi) | 6 |
| Kiwango cha volteji ya kuingiza (Jumla) | 21.1 V ... 26.4 V |
| Jina la muunganisho (Muunganisho 1) | Controller level |
| Idadi ya miunganisho (Ugavi) | 1 |
| Mkondo wa juu unaoruhusiwa (Dokezo) | 1200 mA |
| Mbinu ya muunganisho (Muunganisho 1) | ELCO connector |
| Kiwango cha uchafuzi (Vipimo) | 2 |
| Volti ya kuongezeka iliyokadiriwa (Vipimo) | 0.5 kV |
| Kategoria ya volteji kupita kiasi (Vipimo) | II |
| Idadi ya nafasi (Muunganisho 1) | 56 |
| Viwango/kanuni (Vipimo) | DIN EN 50178 |
| Mtetemo (uendeshaji) (Vipimo) | 2g, according to IEC 60068-2-6 |
| Sehemu ya msalaba ya kondakta AWG (Ugavi) | 24 ... 12 |
| Idadi ya miunganisho (Muunganisho 1) | 1 |
| Mtetemo (uendeshaji) (Muunganisho wa 2) | 2g, according to IEC 60068-2-6 |
| Uzito kwa Kipande (bila kujumuisha upakiaji) | 1,460.000 g |
| Volti ya insulation iliyokadiriwa (Vipimo) | 50 V |
| RoHS ya China (Viwango na Kanuni) | Environmentally Friendly Use Period = 50 |
| Sehemu ngumu ya kondakta (Ugavi) | 0.14 mm² ... 2.5 mm² |
| REACh SVHC (Viwango na Kanuni) | Lead 7439-92-1 |
| Sehemu ya msalaba ya kondakta inayonyumbulika (Ugavi) | 0.14 mm² ... 2.5 mm² |
| Ubaguzi na ulinzi wa mawimbi (Jumla) | Yes |
| Kizuizi cha matumizi (Data Muhimu za Kibiashara) | EMC: class A product, see manufacturer's declaration in the download area |
| Halijoto ya mazingira (uendeshaji) (Muunganisho 2) | -20 °C ... 60 °C |
| Unyevu unaoruhusiwa (uendeshaji) (Muunganisho wa 2) | 5 % ... 95 % (non-condensing) |
| Halijoto ya kawaida (uhifadhi/usafiri) (Muunganisho 2) | -40 °C ... 80 °C |
Maelezo ya Bidhaa
Termination Carrier for the connection of 16 PSR-FSP modules to digital output cards of the Invensys Triconex control system via the ELCO 8016 plug-in connector, 56 poles. Solution for Emergency Shut
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
