TC-D37SUB-AIO16-EX-PS-UNI

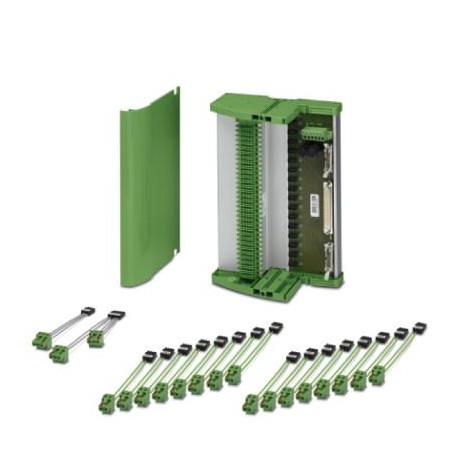

TC-D37SUB-AIO16-EX-PS-UNI 2902932 PHOENIX CONTACT Module carrier
$0.00USD
3525 kwenye hisa
Vipimo Muhimu
GTIN:4046356697989
Dokezo:Made to Order (non-returnable)
Ufunguo wa kuagiza:2902932
(Jumla):2x green LEDs (PWR1 and PWR2)
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4046356697989 |
| Dokezo | Made to Order (non-returnable) |
| Ufunguo wa kuagiza | 2902932 |
| (Jumla) | 2x green LEDs (PWR1 and PWR2) |
| Ukurasa wa katalogi | Page 165 (C-5-2017) |
| Kitengo cha kufungasha | 1 pc |
| (Vipimo) | Class I, Zone 2, Group IIC |
| Fuse (Jumla) | 2x 2.5 A on PCB, slow-blow (replaceable) |
| ATEX (Vipimo) | II 3 G Ex nA IIC T4 Gc X |
| Nchi ya asili | DE (Germany) |
| Mshtuko (Vipimo) | 15g, according to IEC 60068-2-27 |
| Nambari ya ushuru maalum | 85366990 |
| Mshtuko (Muunganisho 4) | 15g, according to IEC 60068-2-27 |
| Uteuzi (Jumla) | Power module |
| Jina la matokeo (Jumla) | Switching output |
| Aina ya mawasiliano (Jumla) | 1 N/C contact (alarm = open) |
| Mkondo wa kuingiza (Jumla) | ≤ 2 A |
| Volti ya kuingiza (Jumla) | 24 V DC |
| Insulation (Vipimo) | Basic insulation |
| Jina la muunganisho (Ugavi) | Power supply |
| Uteuzi (Vipimo) | Air clearances and creepage distances |
| Onyesho la hali (Jumla) | 1 x red LED (error) |
| Volti ya kawaida UN (Dokezo) | < 30 V DC (Per signal/channel) |
| Urefu wa kukatwa (Ugavi) | 7 mm |
| Mbinu ya muunganisho (Ugavi) | Screw connection |
| Depth (Ambient conditions) | 160 mm |
| Ugavi usiohitajika (Jumla) | yes, decoupled from diodes |
| Upana (Hali ya mazingira) | 242 mm |
| Kiwango cha ulinzi (Dokezo) | IP00 |
| Urefu (Hali ya mazingira) | 170 mm |
| UL, Marekani/Kanada (Vipimo) | UL 61010 Listed |
| (Viwango na Kanuni) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Idadi ya nafasi (Ugavi) | 6 |
| Kiwango cha volteji ya kuingiza (Jumla) | 19.2 V DC ... 30 V DC |
| Jina la muunganisho (Muunganisho 1) | Controller level |
| Jina la muunganisho (Muunganisho 2) | X11 |
| Jina la muunganisho (Muunganisho 3) | X12 |
| Idadi ya miunganisho (Ugavi) | 1 |
| Mkondo wa juu unaoruhusiwa (Dokezo) | 23 mA (Signal/channel) |
| Urefu wa juu zaidi (Muunganisho 4) | ≤ 2000 m |
| Mbinu ya muunganisho (Muunganisho 1) | D-SUB pin strip |
| Mbinu ya muunganisho (Muunganisho 2) | IDC/FLK pin strip |
| Mbinu ya muunganisho (Muunganisho 3) | IDC/FLK pin strip |
| Kiwango cha uchafuzi (Vipimo) | 2 |
| Volti ya kuongezeka iliyokadiriwa (Vipimo) | 0.5 kV |
| Kategoria ya volteji kupita kiasi (Vipimo) | II |
| Idadi ya nafasi (Muunganisho 1) | 37 |
| Idadi ya nafasi (Muunganisho 2) | 14 |
| Idadi ya nafasi (Muunganisho 3) | 14 |
| Viwango/kanuni (Vipimo) | DIN EN 50178 |
| Mtetemo (uendeshaji) (Vipimo) | 2g, according to IEC 60068-2-6 |
| Volti ya juu zaidi ya kubadili (Jumla) | 50 V DC (0.3 A) |
| Sehemu ya msalaba ya kondakta AWG (Ugavi) | 24 ... 12 |
| Idadi ya miunganisho (Muunganisho 1) | 1 |
| Idadi ya miunganisho (Muunganisho 2) | 1 |
| Idadi ya miunganisho (Muunganisho 3) | 1 |
| Mtetemo (uendeshaji) (Muunganisho wa 4) | 2g, according to IEC 60068-2-6 |
| Uzito kwa Kipande (bila kujumuisha upakiaji) | 444.440 g |
| Volti ya insulation iliyokadiriwa (Vipimo) | 50 V |
| RoHS ya China (Viwango na Kanuni) | Environmentally Friendly Use Period = 50 |
| Sehemu ngumu ya kondakta (Ugavi) | 0.14 mm² ... 2.5 mm² |
| Sehemu ya msalaba ya kondakta inayonyumbulika (Ugavi) | 0.14 mm² ... 2.5 mm² |
| Ubaguzi na ulinzi wa mawimbi (Jumla) | Yes |
| Kizuizi cha matumizi (Data Muhimu za Kibiashara) | EMC: class A product, see manufacturer's declaration in the download area |
| Halijoto ya mazingira (uendeshaji) (Muunganisho 4) | -20 °C ... 60 °C (Please observe module specifications) |
| Unyevu unaoruhusiwa (uendeshaji) (Muunganisho 4) | 5 % ... 95 % (non-condensing) |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Vipimo) | V0 |
| Halijoto ya kawaida (uhifadhi/usafiri) (Muunganisho 4) | -40 °C ... 80 °C |
Maelezo ya Bidhaa
Universal termination carrier for connecting 16 MACX Analog Ex i separation amplifiers to digital or analog input/output cards, via D-SUB plug-in connectors, 37 poles (1:1 connection), with HART-Multi
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
Cable set for signal transmission on the Termination Carrier for modules from the MACX Analog Ex series. Connection of terminal points 3.1 and 3.2 (signal transmission) to the signal PCB.
