ST-REL2-KG 24/1AU

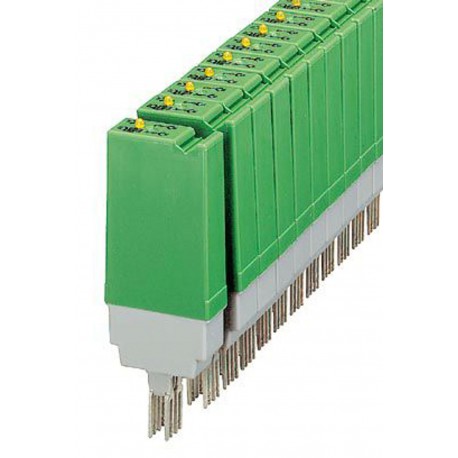

ST-REL2-KG 24/1AU 2823722 PHOENIX CONTACT Relay connectors
$0.00USD
3239 kwenye hisa
Vipimo Muhimu
:36 V DC
Dokezo:the following values are applicable if a gold layer is destroyed
Rangi:green (RAL 6021)
Kina:66.5 mm
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| 36 V DC | |
| Dokezo | the following values are applicable if a gold layer is destroyed |
| Rangi | green (RAL 6021) |
| Kina | 66.5 mm |
| Upana | 14.6 mm |
| Urefu | 33 mm |
| Aina ya bidhaa | Relay Module |
| Aina ya kupachika | Plug-in mounting |
| Hali ya uendeshaji | 100% operating factor |
| Marekebisho ya makala | 07 |
| Nyenzo ya mawasiliano | AgPd60, hard gold-plated |
| Hifadhi (polari) | polarized |
| Hifadhi na kazi | monostable |
| Mzunguko wa kinga | Bridge rectifier, varistor |
| Kiwango cha volteji ya kuingiza | 19.2 V AC/DC ... 26.4 V AC/DC (20 °C) |
| Muda wa kawaida wa kutolewa | 11 ms (with DC) |
| Viwango/kanuni | DIN VDE 0110b, Gr. C for 250 V DC |
| Muda wa kawaida wa majibu | 7 ms (with DC) |
| Aina ya ubadilishaji wa mguso | 1 N/O contact |
| Kiwango cha juu cha mkondo wa kukimbilia | 0.2 A |
| Aina ya mguso wa swichi | Double contact |
| Maisha ya huduma ya mitambo | approx. 2x 107cycles |
| Volti ya pembejeo ya kawaida ya UN | 24 V AC/DC |
| Volti ya juu zaidi ya kubadili | 30 V AC |
| Onyesho la volteji ya uendeshaji | yes |
| Kupunguza mkondo unaoendelea | 0.5 A |
| Mkondo wa kawaida wa pembejeo katika Umoja wa Mataifa | 21 mA |
| Tarehe ya mwisho ya usimamizi wa data | 02.05.2024 |
| Volti ya majaribio (Kuzungusha/kugusa) | 2.5 kV AC (50 Hz, 1 min., winding/contact) |
| Halijoto ya mazingira (uendeshaji) | -20 °C ... 50 °C |
| Kiwango cha juu cha ukadiriaji wa kukatiza (mzigo wa ohmic). | 5 W (at 24 V DC) |
| Halijoto ya kawaida (uhifadhi/usafiri) | -20 °C ... 70 °C |
| Usambazaji wa nguvu wa kiwango cha juu kwa hali ya kawaida | 0.5 W |
Maelezo ya Bidhaa
Plug-in relay support, equipped with mini-switching relay, contacts (AgPd60): Small powers, 1 open contact, input voltage 24 V AC/DC, with light indication, pluggable into base terminal blocks
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
