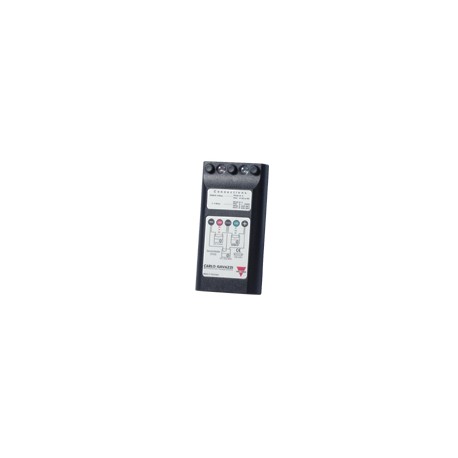

ST-03
ST-03 CARLO GAVAZZI Selected parameters SYSTEM Accessories HOUSING Rectangular CONNECTION Terminals FUNCTION..
$0.00USD
3290 kwenye hisa
Taarifa za Msambazaji
CARLO GAVAZZI
Bidhaa: 10094
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Maelezo ya Bidhaa
Namur Sensor Tester (EN 50 227) CC 2-wire, 3-wire and 4-wire
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
Accessories Sensor Tester Type ST-03• NAMUR (EN 50 227)• 2-wire DC• 3-wire DC• 4-wire DCProduct DescriptionOrdering KeyST-03The fastest way to verify the main functionon your sen- sor. The tester can be used for: Namur (EN 50 227), 2- wire DC, 3-wireDC and 4- wire DC. Connect your sen- sor tothe terminals on the sensortester. The sensor- type (NPN or PNP) and out- put status NO (normally open) and (normally closed) is shown on the correspon- dentLED. Red LED for NPN and green for PNP. A buzzer will tell you if the outputis active.Fault functionon the tester can be: Wrong sensor (e.g. AC sensors), defectsensor. The wireisnotconnected correct. The fuse in the test- er is burned. The batteriis flat.For connection se the wiring diagram on the sensor test- er. To replace thebatteries (2x9V, e.g. PP3) or fuse (100mA f) remove the screw on the backside of the sen- sor tester.TypeType SelectionOrdering numberST-03Wiring DiagramLEDLEDTerminalsGNDredNPNSGNgreen V+ PNPSensortype GNDSGNV+NAMUR- BU(2) BN(1) DC 2-wire NOBU(4)BN(1) - DC 2-wire NCBU(2)BN(1) -DC 2-wireNAMURDC 3-wire NOBU(3)BK(4) BN(1) DC 3-wire NCBU(3)BK(2) BN(1) DC 4-wire NOBU(3)BK(4) BN(1) DC 4-wire NCBU(3)WH(2) BN(1)(.) refers to the pin numbers.Specifications are subject to change without notice (25.06.99)1
