SPTA-THR 1,5/ 6-3,81BDWH:-5R44

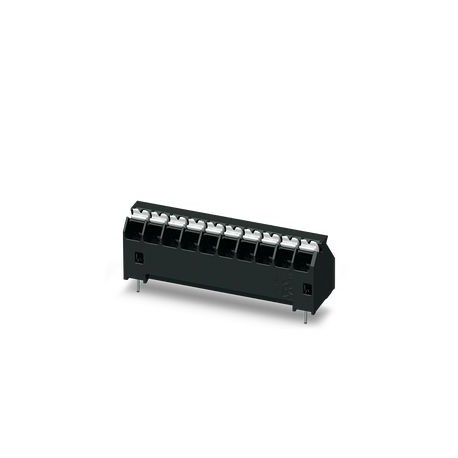

SPTA-THR 1,5/ 6-3,81BDWH:-5R44 1531582 PHOENIX CONTACT PCB terminal, nominal current: 13.5 A, nominal voltag..
$2.75USD
3669 kwenye hisa
Vipimo Muhimu
:0.34 mm² ... 1.5 mm² (Push-in connection)
Dokezo:WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Lami:3.81 mm
Matokeo:Test passed
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| 0.34 mm² ... 1.5 mm² (Push-in connection) | |
| Dokezo | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Lami | 3.81 mm |
| Matokeo | Test passed |
| Upeo | 0.35 mm (10 Hz ... 60.1 Hz) |
| Kiwango cha ESD | (D) electrostatically conductive |
| Masafa | 10 - 150 - 10 Hz |
| Upana [w] | 23.65 mm |
| Urefu [h] | 15.07 mm |
| Urefu [l] | 11.6 mm |
| Mpangilio wa pini | Linear pinning |
| Kasi ya kufagia | 1 octave/min |
| Halijoto | 850 °C |
| Mstari wa bidhaa | COMBICON Terminals S |
| Aina ya bidhaa | Printed circuit board terminal |
| Kipenyo cha shimo | 1.1 mm |
| Aina ya kupachika | THR soldering |
| Vipimo | IEC 60999-1:1999-11 |
| Idadi ya safu mlalo | 1 |
| Familia ya bidhaa | SPTA 1,5/..-THR |
| Upana wa tepi [W] | 44 mm |
| Rangi (Nyumba) | black (9005) |
| Nyenzo ya mawasiliano | Cu alloy |
| Urefu uliowekwa | 12.47 mm |
| Urefu wa kukatwa | 10 mm |
| Muda wa kuambukizwa | 5 s |
| Mbinu ya muunganisho | Push-in spring connection |
| Aina ya kifungashio | 44 mm wide tape |
| [A] kipenyo cha koili | 330 mm |
| Mkondo wa nominella IN | 17.5 A |
| Volti ya kawaida ya Umoja wa Mataifa | 160 V |
| Kiwango cha uchafuzi wa mazingira | 3 |
| Mchoro wa vipimo | |
| Nyenzo za kuhami joto | LCP |
| Idadi ya nafasi | 6 |
| Aina ya kifungashio cha nje | Transparent-Bag |
| Volti iliyokadiriwa (II/2) | 250 V |
| Maagizo ya mkutano: | This item is not suitable for PCB cleaning with liquids. |
| Sehemu ya msalaba ya nominella | 1.5 mm² |
| Volti iliyokadiriwa (III/2) | 160 V |
| Volti iliyokadiriwa (III/3) | 160 V |
| Urefu wa pini ya solder [P] | 2.6 mm |
| Muda wa jaribio kwa kila mhimili | 2.5 h |
| Sifa za uso | hot-dip tin-plated |
| Rangi (Kipengele kinachoamilisha) | signal white (9003) |
| Kikundi cha nyenzo za kuhami joto | IIIa |
| Pini za solder kwa kila uwezo | 1 |
| CTI kulingana na IEC 60112 | 175 |
| Volti ya kuongezeka iliyokadiriwa (II/2) | 2.5 kV |
| Volti ya kuongezeka iliyokadiriwa (III/2) | 2.5 kV |
| Volti ya kuongezeka iliyokadiriwa (III/3) | 2.5 kV |
| Kipimo cha jumla cha koili ya [W2] | 50.4 mm |
| Sehemu ngumu ya kondakta | 0.2 mm² ... 1.5 mm² (Conductor connection with open terminal point) |
| Halijoto ya kawaida (mkusanyiko) | -5 °C ... 100 °C |
| Halijoto ya mazingira (uendeshaji) | -40 °C ... 105 °C (Depending on the current carrying capacity/derating curve) |
| Volti ya insulation iliyokadiriwa (II/2) | 250 V |
| Sehemu ya msalaba ya kondakta inayonyumbulika | 0.5 mm² ... 1.5 mm² |
| Volti ya insulation iliyokadiriwa (III/2) | 160 V |
| Volti ya insulation iliyokadiriwa (III/3) | 160 V |
| umbali wa chini kabisa wa kuteleza (II/2) | 2.5 mm |
| Jaribio la kupanda kwa joto linalohitajika | The sum of ambient temperature and temperature rise of the PCB terminal block shall not exceed the upper limiting temperature. |
| umbali wa chini kabisa (III/2) | 1.6 mm |
| umbali wa chini kabisa (III/3) | 2.5 mm |
| Unyevu wa jamaa (uhifadhi/usafiri) | 30 % ... 70 % |
| Ukadiriaji wa kuwaka kulingana na UL 94 | V0 |
| Halijoto ya kawaida (uhifadhi/usafiri) | -40 °C ... 70 °C |
| Faharasa ya ufuatiliaji linganishi (IEC 60112) | CTI 175 |
| Eneo la kusugulia uso wa chuma (safu ya juu) | Tin (2 - 4 µm Sn) |
| Sehemu ya mwisho ya uso wa chuma (safu ya juu) | Tin (2 - 4 µm Sn) |
| Upinzani wa insulation, nafasi za jirani | > 5 MΩ |
| thamani ya chini kabisa ya kibali - uwanja usio na usawa (II/2) | 1.5 mm |
| thamani ya chini kabisa ya kibali - uwanja usio na usawa (III/2) | 1.5 mm |
| thamani ya chini kabisa ya kibali - uwanja usio na usawa (III/3) | 1.5 mm |
| Kielelezo cha kuwaka kwa waya wa mwanga GWFI kulingana na EN 60695-2-12 | 850 |
| Joto la kuwasha la waya yenye mwanga GWIT kulingana na EN 60695-2-13 | 775 |
| Halijoto kwa ajili ya jaribio la shinikizo la mpira kulingana na EN 60695-10-2 | 125 °C |
| Sehemu ya msalaba ya kondakta, inayonyumbulika, yenye kipete, na kifuniko cha plastiki | 0.25 mm² ... 1.5 mm² |
| Sehemu ya msalaba ya kondakta inayonyumbulika, yenye kipete bila kifuniko cha plastiki | 0.25 mm² ... 1.5 mm² |
| Sehemu mtambuka ya kondakta/aina ya kondakta/sehemu ya nguvu ya mvuto/thamani halisi | 0.2 mm² / solid / > 10 N |
| Viendeshaji 2 vyenye sehemu sawa, vinavyonyumbulika, vyenye kipete TWIN chenye kifuniko cha plastiki | 0.5 mm² ... 0.75 mm² |
Maelezo ya Bidhaa
PCB terminal block, nominal current: 17.5 A, rated voltage (III/2): 160 V, nominal cross section: 1.5 mm2, number of rows: 1, number of positions per row: 6, product range: SPTA 1,5/..-THR, pitch: 3.8
