SMKDS 1/ 2-3,81 BD:+-

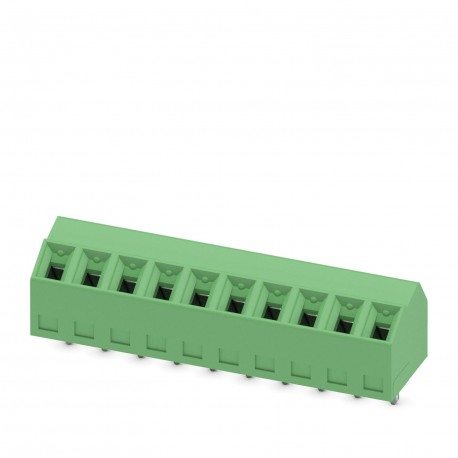

SMKDS 1/ 2-3,81 BD:+- 1012763 PHOENIX CONTACT Terminal for printed circuit board, pitch: 3,81 mm, number of ..
$0.00USD
4168 kwenye hisa
Vipimo Muhimu
Kiungo:Screw connection with cage
Hatua:3.81 mm
noti:Complies with WEEE/RoHS, no thread-like materials according to IEC 60068-2-82/JEDEC JESD 201
aina:Block of terminal blocks for printed circuit boards
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Kiungo | Screw connection with cage |
| Hatua | 3.81 mm |
| noti | Complies with WEEE/RoHS, no thread-like materials according to IEC 60068-2-82/JEDEC JESD 201 |
| aina | Block of terminal blocks for printed circuit boards |
| Ufungashaji | Packed in carton |
| Upana [w] | 7.61 mm |
| Urefu [h] | 13 mm |
| Urefu [l] | 10 mm |
| Mpangilio wa Pin | Linear Pinning |
| Ukubwa wa shank | 0.5 x 0.9 mm |
| Rangi (Kisanduku) | Green (6021) |
| Dokezo la matumizi | A predefined tightening torque must always be observed for secure connection. Especially in the case of two- and three-pole PCB terminals, the single contact soldering tip may not block them. For this reason, the terminals must be reinforced when connecting (fixed by hand, reinforcement on the housing). |
| Mstari wa Bidhaa | COMBICON Terminals S |
| Aina ya Bidhaa | PCB terminal block |
| Kipenyo cha shimo | 1.1 mm |
| Aina ya kupachika | Wave Soldering |
| Article review | 03 |
| Idadi ya safu mlalo | 1 |
| Familia ya Bidhaa | SMKDS 1 |
| Kumaliza Uso | Galvanic tin plating |
| Idadi ya nguzo | 2 |
| Nyenzo ya Mawasiliano | Cu Alloy |
| Imekadiriwa Sasa IN | 10 A |
| Volti iliyokadiriwa UN | 200 V |
| Kukaza torque | 0.22 Nm ... 0.25 Nm |
| Vipimo vya Mtihani | DIN EN 60947-1 (VDE 0660-100):2015-09 |
| Mchoro wa Vipimo | |
| Urefu wa Ufungaji | 9.5 mm |
| Nyenzo ya insulation | PA |
| Sehemu mtambuka ya nominella | 1 mm² |
| Volti ya ukubwa (II/2) | 400 V |
| Urefu wa Shina la Kulehemu [P] | 3.5 mm |
| Volti ya ukubwa (III/2) | 200 V |
| Volti ya ukubwa (III/3) | 160 V |
| Kichwa cha skrubu cha aina ya kifaa | Longitudinal slit (L) |
| Kikundi cha Nyenzo za Insulation | The |
| CTI kulingana na IEC 60112 | 600 |
| AWG ya sehemu mtambuka ya kondakta | 26 ... 16 |
| Volti ya Msukumo Iliyokadiriwa (II/2) | 2.5 kV |
| Thamani ya chini kabisa ya kuteleza (II/2) | 2 mm |
| Volti ya msukumo iliyokadiriwa (III/2) | 2.5 kV |
| Volti ya msukumo iliyokadiriwa (III/3) | 2.5 kV |
| Sehemu ngumu ya kondakta | 0.14 mm² ... 1.5 mm² |
| Ukubwa wa Voltage ya Msukumo (II/2) | 2.5 kV |
| Halijoto ya kawaida (kuweka) | -5 °C ... 100 °C |
| Thamani ya chini kabisa (III/2) | 1.5 mm |
| Thamani ya chini kabisa (III/3) | 2 mm |
| Volti ya Kutenga Iliyokadiriwa (II/2) | 400 V |
| Ukubwa wa Voltage ya Msukumo (III/2) | 2.5 kV |
| Ukubwa wa voltage ya msukumo (III/3) | 2.5 kV |
| Halijoto ya mazingira (inayofanya kazi) | -40 °C ... 100 °C (Depending on current flow curve/derating curve) |
| Volti ya Kutenga Iliyokadiriwa (III/2) | 200 V |
| Sehemu ya msalaba ya kondakta inayobadilika | 0.14 mm² ... 1 mm² |
| Volti ya insulation iliyokadiriwa (III/3) | 160 V |
| Urefu wa sehemu itakayovuliwa | 5 mm |
| Idadi ya Pini za Kulehemu kwa Kila Uwezo | 1 |
| Eneo la Kuunganisha Uso wa Chuma (Safu ya Kati) | Nickel (2 - 3 μm Ni) |
| Halijoto ya kawaida (uhifadhi/usafiri) | -40 °C ... 70 °C |
| Darasa la mwako kulingana na UL 94 | V0 |
| Unyevu wa jamaa (usafiri na uhifadhi) | 30 % ... 70 % |
| Eneo la Kuchomea Chuma Uso (Safu ya Uso) | Tin (5 - 7 μm Sn) |
| Sehemu ya kuunganisha uso wa chuma (safu ya kati) | Nickel (2 - 3 μm Ni) |
| Viendeshaji 2 vya sehemu msalaba sawa, ngumu | 0.14 mm² ... 0.5 mm² |
| Uso wa Chuma, Sehemu ya Kuunganisha (Safu ya Uso) | Tin (5 - 7 μm Sn) |
| Viendeshaji 2 vya sehemu inayoweza kunyumbulika inayofanana | 0.14 mm² ... 0.2 mm² |
| Thamani ya chini kabisa ya utambaaji - safu isiyo sawa (II/2) | 1.5 mm |
| Thamani ya chini kabisa ya kutambaa - safu isiyo sawa (III/2) | 1.5 mm |
| Thamani ya chini kabisa ya kibali - masafa yasiyo sawa (III/3) | 1.5 mm |
| Upinzani dhidi ya mikondo ya uso (DIN EN 60112 (VDE 0303-11)) | CTI 600 |
| Joto la mtihani wa ugumu wa Brinell kulingana na EN 60695-10-2 | 125 °C |
| Joto la kuwasha la filamenti ya GWIT kulingana na EN 60695-2-13 | 775 |
| Kielezo cha kuwaka kwa filamenti ya GWFI kulingana na EN 60695-2-12 | 850 |
| Sehemu ya msalaba ya kondakta inayonyumbulika yenye lug iliyowekwa na kola ya plastiki | 0.25 mm² ... 0.5 mm² |
| Sehemu ya msalaba ya kondakta inayonyumbulika yenye kebo bila kola ya plastiki | 0.25 mm² ... 0.5 mm² |
Maelezo ya Bidhaa
Terminal block for printed circuit board, nominal current: 10 A, nominal voltage (III/2): 200 V, nominal cross-section: 1 mm², number of rows: 1, number of poles per row: 2, article family: SMKDS 1, p
