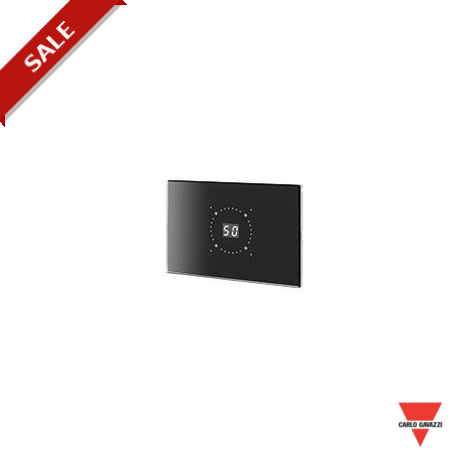

SHG503BSLD

SHmGxxaxxrStLDDupline®Glass switch for dimming lightTypes SHG503xSLD, SHG060xSLD• Programmable glass touch switch• The push buttons can be programmed to control up to4 dimmable outputs or on/off functions• The dimming level is changed by moving the finger over the slider.• Black or white glass• Backlight ON when the hand nears the glass• Programmable buzzer when a key is pressedProduct Description Ordering KeySH G 503 W SL DCapacitive glass switch with displayandslidertocon- trol up to 4 dimming groups and/or on/off functions.The LEDs indicate which group is controlled by the sliderandthedisplay. As soon as the slider is touched, the light level is changed.When a hand nears the glass, the back light isswitched on.The glass switchis partof the smart-house concept for building automation applica- tions and can be used to controllights,rollerblinds and all other functions sup- ported by the Sx2WEB24.It is fully programmablevia the SH tool.Smart house Glass Dimensions ColorSliderDimmerType SelectionDescriptionModule itemWhite glass switch for 503 boxSHG503WSLD Black glass switch for 503 boxSHG503BSLD White glass switch for Ø60 box SHG060WSLD Black glass switch for Ø60 boxSHG060BSLDOutput SpecificationsTouch glass4 LEDsDisplay (showing the dimming percentage)Supply SpecificationsPower supply Overvoltage cat. II(IEC 60664-1, par. 4.3.3.2)15 to 24 VDC ± 20%Consumption 42 mA, 1 WInputSpecificationsTouch glass 4 touch buttons1 sliderDupline® Output SpecificationsVoltage8.2 V Maximum Dupline® voltage10 V Minimum Dupline® voltage 5.5 V Maximum Dupline® current2 mASpecifications are subject to change without notice (29.08.2014)1
