SG-E1-12

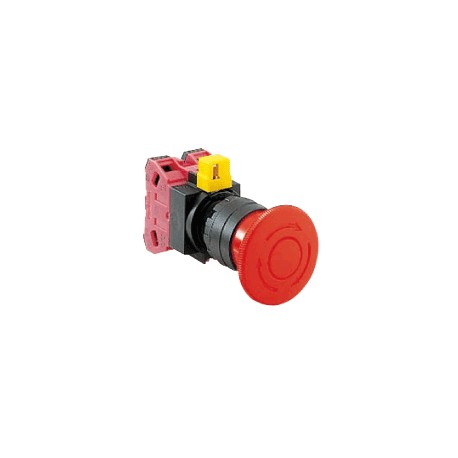

SG-E1-12 PANASONIC Emergency stop switch Pushlock, Turn reset, 1NO / 2 NC
$0.00USD
3708 kwenye hisa
Vipimo Muhimu
:Ue
DC:Resistive load (DC-12)
Yaani:AC
24V:48V
Taarifa za Msambazaji
PANASONIC
Bidhaa: 4316
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Ue | |
| DC | Resistive load (DC-12) |
| Yaani | AC |
| 24V | 48V |
| B10D | 100,000(ISO 13849-1 Annex C Table C.1) |
| Bidhaa | Emergency stop switch |
| Uzito | Approx. 75 g |
| Maelezo | Emergency stop switch |
| Nyenzo | Actuator : PA6, Contact block : PA66 |
| Ulinzi | Front of the panel : IP65 (IEC 60529) |
| Vifaa | Lever lock : 1 pc |
| Nambari ya Sehemu | SG-E1-12 |
| Rangi ya kitufe | Red |
| Jina la bidhaa | Emergency stop switch [Pushbutton type] SG-E1 |
| Weka upya kitendo | Turn reset |
| Nambari ya Bidhaa | SG-E1-12 |
| Upinzani wa mshtuko | Malfunction : 100m/s2, Destruction : 1,000m/s2 |
| Mbinu ya kuunganisha | Terminal screw (M3.5 philips & flathead ) |
| Upinzani wa mguso | 50m Ω max. (initial value) |
| Mpangilio wa mawasiliano | 1NO/2NC |
| Viwango vinavyotumika | JIS C 8201-5-1, IEC 60947-5-1, EN 60947-5-1,UL 508 (UL listed Certification), CSA 22.2No.14 (c-UL listed Certification) |
| Ukubwa wa waya unaotumika | Max. 2 mm2(Single core ø1.6ø0.063max.)2 wires max. |
| Upinzani wa mtetemo | Malfunction : 5 to 55 Hz、half amplitude 0.5mm0.020 inDestruction : 30 Hz, half amplitude 1.5mm0.059 in |
| Uimara wa umeme | 500,000 operations min. (900 operations/hour) |
| Upinzani wa insulation | 100 MΩ min. (500 V DC megger) |
| Uimara wa mitambo | 500,000 operations min. |
| Mkondo wa joto (Ith) | 10A |
| Kategoria ya volteji ya ziada | II (IEC 60664-1) |
| Mzigo wa kuingiza (AC-15)(A600) | 10A |
| Mzigo wa kuingiza (DC-13)(P600) | 4A |
| Volti ya insulation iliyokadiriwa (Ui) | 600V |
| Hali ya uendeshaji: Urefu | 2,000 m6,561.68 ftmax. |
| Darasa la ulinzi wa mshtuko wa umeme | Class II (IEC 61140) |
| Volti inayostahimili msukumo (Uimp) | 4kV |
| Kuimarisha torque ya pete ya kufunga | 2.0 N・m |
| Hali ya uendeshaji: Unyevu wa mazingira | 45 to 85 % RH |
| Hali ya uendeshaji: Kiwango cha uchafuzi | 3 |
| Kuimarisha torque ya skrubu za mwisho | 1.0 to 1.3 N・m |
| Hali ya uendeshaji: Halijoto ya kawaida | -25 to +60 ℃-13 to +140 ℉(No dew condensation or icing allowed)Storage : -40 to +80 ℃-40 to +176 ℉ |
| Volti ya uendeshaji iliyokadiriwa (Ue) / Mkondo wa uendeshaji uliokadiriwa (Yaani) | Ue24V48V50V110V220V440VIeACResistive load (AC-12)10A-10A10A6A2AInductive load (AC-15)(A600)10A-7A5A3A1ADCResistive load (DC-12)8A4A-2.2A1.1A-Inductive load (DC-13)(P600)4A2A-1.1A0.6A- |
Maelezo ya Bidhaa
More details
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
