SF4C-H16

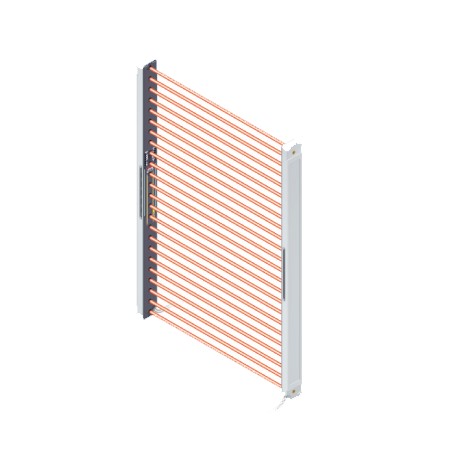

SF4C-H16 PANASONIC Ultra-slim Safety Light Curtain Typ4 (PLe SIL3), Hand Protection, protective height 320mm..
$0.00USD
3126 kwenye hisa
Vipimo Muhimu
Bidhaa:Ultra-slim Safety Light Curtain [Type 4 PLe SIL3]
PFHD:2.10 × 10-9
Kebo:0.15 mm212-core heat-resistant PVC cable, 5 m16.404 ftlong
MTTFD:100 years or more
Taarifa za Msambazaji
PANASONIC
Bidhaa: 4316
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Bidhaa | Ultra-slim Safety Light Curtain [Type 4 PLe SIL3] |
| PFHD | 2.10 × 10-9 |
| Kebo | 0.15 mm212-core heat-resistant PVC cable, 5 m16.404 ftlong |
| MTTFD | 100 years or more |
| Maelezo | Min. sensing object ø25 mmø0.984 intype (20 mm0.787 inbeam pitch) [Cable type] |
| Nyenzo | Enclosure: Polycarbonate alloySensing surface: Polycarbonate alloy |
| Lami ya boriti | 20 mm0.787 in |
| Vifaa | MS-SFC-1 (Standard mounting bracket): 1 setSF4C-TR25 (Test rod): 1 No. |
| Nambari ya Sehemu | SF4C-H16 |
| Jina la bidhaa | Ultra-slim Safety Light Curtain Type 4 PLe SIL3 SF4C |
| Kipengele cha ELCA | Incorporated (reducing mutual interference automatically) |
| Volti ya nguvu | 24 V DC +10-15 % Ripple P-P 10 % or less |
| Muda wa majibu | OFF response: 7 ms or lessON response: 90 ms or less |
| Nambari ya Bidhaa | SF4C-H16 |
| Upanuzi wa kebo | Extension up to 40.5 m132.874 ftis possible for both emitter and receiver, with 0.2 mm2or more cable.(Note) When the muting lamp is used, the cable can be extended within 30.5 m100.066 ft(for emitter / receiver). |
| Kitendakazi cha kuzima sauti | Incorporated |
| Aina ya uendeshaji | 0.1 to 3 m0.328 to 9.843 ft(Note) The operating range is the possible setting distance between the emitter and the receiver. |
| Unyevu wa mazingira | 30 to 85 % RH, Storage: 30 to 85 % RH |
| Kipengee kinachotoa | Infrared LED (Peak emission wavelength: 855 nm0.034 mil) |
| Kiwango cha uchafuzi wa mazingira | 3 |
| Upinzani wa mshtuko | 300 m/s2acceleration (30 G approx.) in X, Y and Z directions three times each |
| Batilisha chaguo la kazi | Incorporated |
| Urefu wa kinga | 320 mm12.598 in |
| Kipengele cha kuingiliana | Incorporated [Manual reset / Automatic reset (Note)](Note) The manual reset and automatic reset are possible to be switched depending on the wiring status. |
| Urefu wa uendeshaji | 2,000 m6,561 68 ftor less (Note：Do not use or store in an environment pressurized to atmospheric pressure or higher at an altitude of 0 m.) |
| Vitendaji vya hiari | Fixed blanking, floating blanking, auxiliary output change, safety input (safety sensor), large multi-purpose indicator setting change, interlock setting change, external relay monitoring setting change, muting setting change, override setting change, protecting(Note) In case of using optional function, the handy-controller SFC-HC is required. |
| Mwangaza wa mazingira | Incandescent light: 5,000 lx or less at the light-receiving face |
| Halijoto ya mazingira | -10 to +55 ℃+14 to +131 ℉(No dew condensation or icing allowed), Storage: -25 to +60 ℃-13 to +140 ℉ |
| Kitu cha chini cha kuhisi | ø25 mmø0.984 inopaque object(Note) When the floating blanking function is used, the size of the min. sensing object is changed. |
| Idadi ya njia za boriti | 16 |
| Upinzani wa mtetemo | 10 to 55 Hz frequency, 0.75 mm0.030 indouble amplitude in X, Y and Z directions for two hours each |
| Upinzani wa insulation | 20 MΩ , or more, with 500 V DC megger between all supply terminals connected together and enclosure |
| Kipengele cha kuingiza data cha usalama | Incorporated (safety contact) |
| Pembe ya uwazi yenye ufanisi | plus or minus 2.5℃ or less [for an operating range exceeding 3 m9.843 ft(conforming to IEC 61496-2 / ANSI/UL 61496-2)] |
| Viwango vinavyotumika: Japani | JIS B 9704-1/2 (Type 4), JIS B 9705-1 (Category 4), JIS C 0508-1 to 7 (SIL 3) |
| Jaribu / weka upya kitendakazi cha kuingiza data | Incorporated |
| Viwango vinavyotumika: Ulaya (EU) | EN 61496-1 (Type 4), EN ISO 13849-1 (Category 4, PLe), EN 61508-1 to 7 (SIL 3), EN 55011, EN 50178, EN 61000-6-2(Note) Regarding EU Machinery Directive, a Notified Body, TÜV SÜD, has certified with the type examination certificate. |
| Matokeo ya udhibiti (OSSD 1, OSSD 2) | PNP open-collector transistor / NPN open-collector transistor (switching method)[When selecting PNP output]- Max. source current: 200 mA- Applied voltage: same as supply voltage (between the control output and +V)- Residual voltage: 2.5 V or less (source current 200 mA, when using 10 m32.808 ftlength cable)- Leakage current: 200 micro A or less (including power supply OFF condition)- Max. load capacity: 1 micro F (No load to Max. output current)- Load wiring resistance: 3 Ω or less[When selecting NPN output]- Max. sink current: 200 mA- Applied voltage: same as supply voltage (between the control output and 0 V)- Residual voltage: 2.5 V or less (sink current 200 mA, when using 10 m32.808 ftlength cable)- Leakage current: 200 micro A or less (including power supply OFF condition)- Max. load capacity: 1 micro F (No load to Max. output current)- Load wiring resistance: 3 Ω or less |
| Viwango vinavyotumika: Amerika Kaskazini | ANSI/UL 61496-1/2 (Type 4), ANSI/UL 508, UL 1998 (Class 2), CAN/CSA 61496-1/2 (Type 4), CAN/CSA C22.2 No.14,OSHA 1910.212, OSHA 1910.217(C), ANSI B11.1 to B11.19, ANSI/RIA 15.06(Note) With regards to the standards in the US, under the US regulation 29 CFR 1910.7, TÜV SÜD, a Nationally Recognized Testing Laboratory (NRTL) certified by OSHA, has certified with the safety certificate based on UL/ANSI standards. With regards to the standards in Canada, under the safety regulations based on CEC (Canadian Electric Code), TÜV SÜD America, a Certification Body accredited by SCC, has certified with the safety certificate based on CSA standards. |
| Kipengele cha ufuatiliaji wa kifaa cha nje | Incorporated |
| Pato la msaidizi (Pato lisilo la usalama) | PNP open-collector transistor / NPN open-collector transistor (switching method)[When selecting PNP output]- Max. source current: 100 mA- Applied voltage: same as supply voltage (between the auxiliary output and +V)- Residual voltage: 2.5 V or less (source current 100 mA, when using 10 m32.808 ftlength cable)[When selecting NPN output]- Max. sink current: 100 mA- Applied voltage: same as supply voltage (between the auxiliary output and 0 V)- Residual voltage: 2.5 V or less (sink current 100 mA, when using 10 m32.808 ftlength cable) |
| Uzito halisi (Jumla ya mtoaji na mpokeaji) | 760 g approx. |
| Viwango vinavyotumika: Kiwango cha kimataifa | IEC 61496-1/2 (Type 4), ISO 13849-1 (Category 4, PLe), IEC 61508-1 to 7 (SIL 3) |
| Upinzani wa mazingira: Kiwango cha ulinzi | IP67 / IP65 (IEC) |
| Matokeo ya udhibiti (OSSD 1, OSSD 2): Hali ya uendeshaji | ON when all beam channels are received, OFF when one or more beam channels are interrupted (OFF also in case of any malfunction in the Safety Light Curtain or the synchronization signal)(Note) The outputs are not ''OFF'' when muting function is active even if the beam channel is interruped.(Note) In case the blanking function is valid, the operation mode is changed. |
| Matokeo ya udhibiti (OSSD1, OSSD2): Mzunguko wa ulinzi | Incorporated |
| Pato la msaidizi (Pato lisilo la usalama): Hali ya uendeshaji | OFF when control outputs are ON, ON when control outputs are OFF (Factory setting, operating mode can be changed using the SFC-HC handy-controller). |
| Upinzani wa mazingira: Volti ya nguvu ya dielectric | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Pato la msaidizi (Pato lisilo la usalama): Mzunguko wa ulinzi | Incorporated |
| Matumizi ya sasa: Kiashiria kikubwa cha matumizi mengi huwaka | Emitter: 120 mA or lessReceiver: 140 mA or less |
| Matumizi ya sasa: Kiashiria kikubwa cha matumizi mengi huzimwa | Emitter: 70 mA or lessReceiver: 90 mA or less |
