Kipatikana Bidhaa Maarufu
SDR-75-24

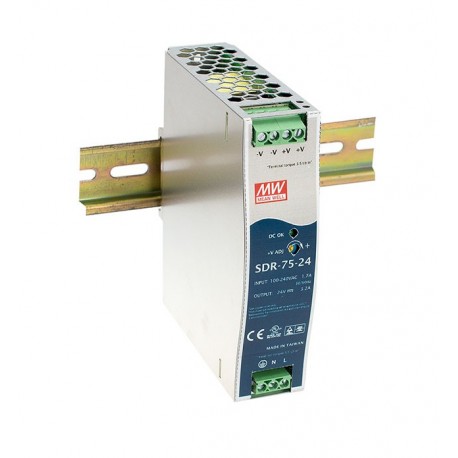

SDR-75-24 MEANWELL AC-DC Industrial DIN rail power supply, Output 24VDC / 3.2A, Metal casing, Ultra slim wid..
$30.15USD
373 kwenye hisa
Vipimo Muhimu
Jina:SDR-75-24
Jimbo:Recommended Model
Muundo:Din Rail
Mfululizo:SDR-75
Taarifa za Msambazaji
MEANWELL
Bidhaa: 6448
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Jina | SDR-75-24 |
| Jimbo | Recommended Model |
| Muundo | Din Rail |
| Mfululizo | SDR-75 |
| Idhini | CE, UL |
| Nguvu (W) | 76,80 |
| Fomu ndogo | Narrow |
| Upana (mm) | 32.00 |
| Urefu (mm) | 125.20 |
| Kiwango cha juu cha kuingiza AC | 264,00 |
| Kiwango cha chini cha kuingiza AC | 88,00 |
| Maombi | Industrial, Telecommunications |
| Mtengenezaji | MEAN WELL |
| Aina ya bidhaa | Power supply AC/DC |
| Kutengwa (V) | 3.000,00 |
| Volti ya kutoa | 24,00 |
| Nguvu ya Kilele (W) | 112.5 |
| Kiunganishi cha kuingiza data | Screw-Type |
| Masafa ya kuingiza | 50 Hz, 60 Hz |
| Muda Mrefu/Usuli | 102.00 |
| Maelezo Marefu | Switching Power supply for Din Rail.Format to install on a Din Rail.Range of universal Input88-264vac47-63Hz.Output voltage24vdc.(Adjustable with potentiometer 24-28Vcc).Output intensity:3.2 A.Range of output current 0-3,2 according To the demand load.Peak intensity: 4,69 A. a Maximum of 3 seconds. See the technical sheet for the repeat cycles.Power:76,8 W.Peak Power:112,5 W. Maximum3 seconds. See the technical sheet for the repeat cycles.Efficiency:89%.Working temperature: from-30up+70ºCof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Width x Height x depth):32 x 125,2 x 102mm.3 years of warranty.Manufacturer: MEANWELL.The series SDR are power sources, DIN rail, metal, single phase.With wide input range have a compact size, high efficiency up to 94%, and PFC function is active.Can be installed on DIN rail TS-35 / 7,5 or 15.Among its features we have a peak load of between 130-150%, signal using relay DC OK or function of load distribution in the models of 480/960W. |
| Kiunganishi cha kutoa | Screw-Type |
| Aina ya Kiingilio CA | Single-phase |
| Dhamana (Miaka) | 3,00 |
| Nchi ya Asili | China |
Maelezo ya Bidhaa
More details
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
Switching Power supply for Din Rail.
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
