SDR-480P-24

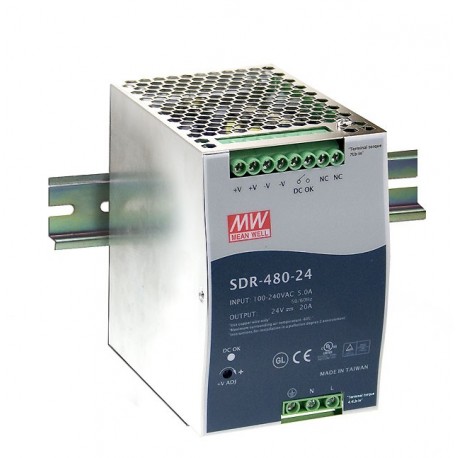

SDR-480P-24 MEANWELL AC-DC Industrial DIN rail power supply, Output 24VDC / 20A, Metal casing, Ultra slim wi..
$131.01USD
112 kwenye hisa
Vipimo Muhimu
Jina:SDR-480P-24
Jimbo:Recommended Model
Kengele:Output OK
Muundo:Din Rail
Taarifa za Msambazaji
MEANWELL
Bidhaa: 6448
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Jina | SDR-480P-24 |
| Jimbo | Recommended Model |
| Kengele | Output OK |
| Muundo | Din Rail |
| Mfululizo | SDR-480P |
| Idhini | EC, GL - Germanischer Lloyd, UL |
| Nguvu (W) | 480,00 |
| Fomu ndogo | Narrow |
| Upana (mm) | 85.50 |
| Urefu (mm) | 125.20 |
| Kiwango cha juu cha kuingiza AC | 264,00 |
| Kiwango cha chini cha kuingiza AC | 90,00 |
| Maombi | Industrial, Naval, Telecom |
| Mtengenezaji | MEAN WELL |
| Aina ya bidhaa | Power supply AC/DC |
| Kutengwa (V) | 3.000,00 |
| Volti ya kutoa | 24,00 |
| Nguvu ya Kilele (W) | Seven hundred twenty |
| Kiunganishi cha kuingiza data | Screw-Type |
| Masafa ya kuingiza | 50 Hz, 60 Hz |
| Muda Mrefu/Usuli | 128.50 |
| Maelezo Marefu | Switching Power supply for Din Rail.Format to install on a Din Rail.Range of universal Input90-264vac47-63Hz.Output voltage24vdc.(Adjustable with potentiometer 24-28Vcc).Output intensity:20A.Range of output current 0-20A according to demand load.Peak intensity: 30A. A maximum of 3 seconds. See the technical sheet for the repeat cycles.Power:480W.Peak Power:720W. Maximum3 seconds. See the technical sheet for the repeat cycles.Factor Corrector, Power>0,94.Alarm output voltage to the correct DC-Ok. Paralelizable up to 8 units.Efficiency:94%.Working temperature: from-25up+70ºCof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Width x Height x depth):85,5 x 125,2 x 128,5 mm3 years of warranty.Manufacturer: MEANWELL.The series SDR are power sources, DIN rail, metal, single phase.With wide input range have a compact size, high efficiency up to 94%, and PFC function is active.Can be installed on DIN rail TS-35 / 7,5 or 15.Among its features we have a peak load of between 130-150%, signal using relay DC OK or function of load distribution in the models of 480/960W. |
| Kiunganishi cha kutoa | Screw-Type |
| Aina ya Kiingilio CA | Single-phase |
| Dhamana (Miaka) | 3,00 |
| Nchi ya Asili | China |
Maelezo ya Bidhaa
More details
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
Switching Power supply for Din Rail.
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
