SCK-M-U-1500V

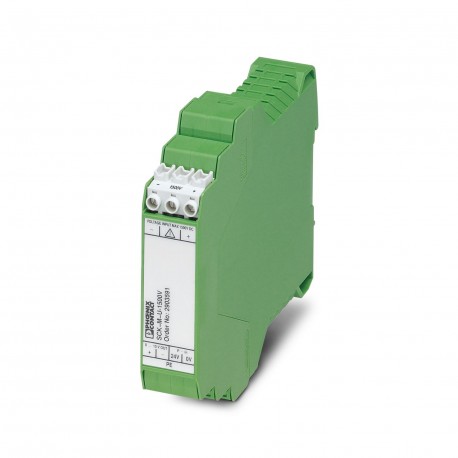

SCK-M-U-1500V 2903591 PHOENIX CONTACT PV string monitoring module
$0.00USD
4292 kwenye hisa
Vipimo Muhimu
:65 mA (maximum)
Mzigo:10 kΩ
Dokezo:When being exposed to interference, there may be minimal deviations.
Kina:128.5 mm
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| 65 mA (maximum) | |
| Mzigo | 10 kΩ |
| Dokezo | When being exposed to interference, there may be minimal deviations. |
| Kina | 128.5 mm |
| Upana | 22.5 mm |
| Urefu | ≤ 2000 m |
| Aina ya kebo | Twisted, shielded |
| Cheti | CE-compliant |
| Fomu ya msukumo | DC voltage |
| Aina ya bidhaa | Voltage transducer |
| Aina ya kupachika | DIN rail: 35 mm |
| Utambulisho | 508 Listed |
| Utoaji wa kelele | EN 61000-6-4 |
| Kinga ya kelele | EN 61000-6-2 |
| Familia ya bidhaa | SOLARCHECK |
| Marekebisho ya makala | 07 |
| Idadi ya pembejeo | 1 |
| Kiwango cha uchafuzi wa mazingira | 2 |
| Urefu wa kukatwa | 8 mm |
| Mbinu ya muunganisho | Screw connection |
| Kukaza torque | 0.5 Nm ... 0.6 Nm |
| Mzunguko wa kinga | Surge protection; 33 V suppressor diode |
| Kiwango cha volteji ya kuingiza | 0 V DC ... 1500 V DC (CAT III) |
| Kiwango cha ulinzi | IP20 |
| Kiwango cha voltage ya usambazaji | 21.6 V DC ... 30 V DC |
| Maelekezo ya Volti ya Chini | Conformance with Low Voltage Directive |
| Viwango/kanuni | EN 61010-1 |
| Ishara ya kutoa volteji | 2 V DC ... 10 V DC |
| Volti ya usambazaji wa kawaida | 24 V DC -10 % ... +25 % (or via SSCK-M-I-8S-20A) |
| Matumizi ya sasa mwenyewe | 8 mA (typical) |
| Hitilafu ya juu zaidi ya uwasilishaji | ± 1 % (after additional tuning (valid for 100 - 1,500 V DC)) |
| Sehemu ya msalaba ya kondakta AWG | 24 ... 12 |
| Sehemu ngumu ya kondakta | 0.2 mm² ... 2.5 mm² |
| Utangamano wa sumakuumeme | Conformance with EMC directive |
| Halijoto ya mazingira (uendeshaji) | -20 °C ... 70 °C |
| Sehemu ya msalaba ya kondakta inayonyumbulika | 0.2 mm² ... 2.5 mm² |
| Unyevu unaoruhusiwa (uendeshaji) | ≤ 95 % (non-condensing) |
| Mgawo wa halijoto, wa kawaida | < 0.01 %/K |
| Upinzani wa pembejeo ya voltage | 2x 20 MΩ |
| Halijoto ya kawaida (uhifadhi/usafiri) | -40 °C ... 85 °C |
Maelezo ya Bidhaa
SCK measurement module for monitoring photovoltaic systems, 1 voltage measurement up to 1500 V DC, 1 analog output (2 ... 10 V)
