SACCEC-M12MSB-5CON-M16/5,0-900

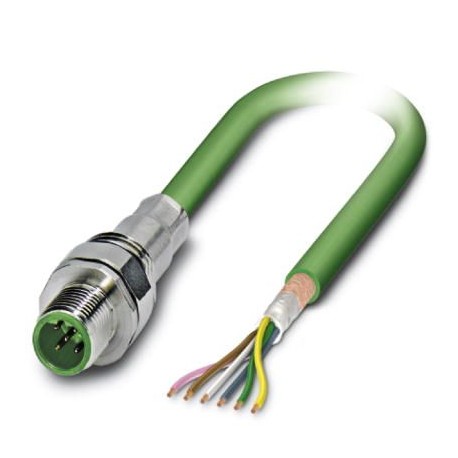

SACCEC-M12MSB-5CON-M16/5,0-900 1529739 PHOENIX CONTACT Bus system flat-type plug
$70.64USD
186 kwenye hisa
Vipimo Muhimu
GTIN:4017918982645
Dokezo:Made to Order (non-returnable)
(Kebo):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Ufunguo wa kuagiza:1529739
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4017918982645 |
| Dokezo | Made to Order (non-returnable) |
| (Kebo) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Ufunguo wa kuagiza | 1529739 |
| Ukurasa wa katalogi | Page 425 (C-2-2017) |
| Kitengo cha kufungasha | 1 pc |
| Nchi ya asili | DE (Germany) |
| RoHS ya China (Kebo) | Environmentally Friendly Use Period = 50 |
| REAch SVHC (Kebo) | Lead 7439-92-1 |
| Nambari ya ushuru maalum | 85444290 |
| Nyenzo za mawasiliano (Jumla) | CuZn |
| Nyenzo, knurls (Jumla) | Nickel-plated brass |
| Nyenzo ya kuziba (Jumla) | NBR |
| Usimbaji (Hali za mazingira) | B - inverse |
| Torque (Hali ya mazingira) | 3 Nm ... 4 Nm (Installation-side) |
| (Viwango na Kanuni) | -30 °C ... 70 °C (cable, flexible installation) |
| Uteuzi wa kawaida (Nyenzo) | M12 connector |
| Viwango/kanuni (Nyenzo) | IEC 61076-2-101 |
| Kiwango cha ulinzi (Vipimo) | IP67 |
| Volti ya majaribio (Hali za mazingira) | 2500 V |
| Nyenzo za mtoa huduma za mawasiliano (Jumla) | PA 6.6 |
| Nyenzo ya uso wa mguso (Jumla) | Ni/Au |
| Volti iliyokadiriwa (Hali ya mazingira) | 60 V |
| Onyesho la hali (Hali ya mazingira) | No |
| Uzito kwa Kipande (bila kujumuisha upakiaji) | 391.700 g |
| Urefu wa kebo (Data Muhimu ya Biashara) | 5 m |
| Kulinda (Viwango na Kanuni) | Braided copper wires |
| Aina ya kebo (Viwango na Kanuni) | INTERBUS |
| Upunguzaji (Viwango na Kanuni) | ≤ 15 dB/km (at 256 kHz) |
| Rangi za waya (Viwango na Kanuni) | Green-yellow, white-brown, gray-pink |
| Kuongeza Kasi (Viwango na Kanuni) | 3.2 m/s² |
| Uzito wa kebo (Viwango na Kanuni) | 70 kg/km |
| Kiwango cha uchafuzi wa mazingira (Hali ya mazingira) | 3 |
| Idadi ya nafasi (Hali ya mazingira) | 5 |
| Volti ya kuongezeka iliyokadiriwa (Hali za mazingira) | 1.5 kV |
| Kasi ya mawimbi (Viwango na Kanuni) | 0.66 c |
| Mzunguko wa jumla (Viwango na Kanuni) | 3 pairs to the core |
| Kategoria ya volteji kupita kiasi (Hali za mazingira) | II |
| Jozi zilizosokotwa (Viwango na Kanuni) | 2 cores to the pair |
| Radi ya kupinda (Viwango na Kanuni) | 120 mm |
| Uwezo wa kebo (Viwango na Kanuni) | ≤ 60 nF/km (At 800 Hz) |
| Upinzani wa insulation (Hali ya mazingira) | ≥ 100 MΩ |
| Viwango/kanuni (Mazingira ya Mazingira) | M12 connector IEC 61076-2-101 |
| Kizuizi cha wimbi (Viwango na Kanuni) | 120 Ω ±20 % (at 64 kHz) |
| Mstari wa ishara wa AWG (Viwango na Kanuni) | 24 |
| Muundo wa kebo (Viwango na Kanuni) | 3 x 2 x 0.22 mm² |
| Upinzani wa kitanzi (Viwango na Kanuni) | ≤ 159.80 Ω/km |
| Mkondo uliokadiriwa kwa 40°C (Hali ya mazingira) | 4 A |
| Njia ya kupita (Viwango na Kanuni) | 10 m |
| Kiwango cha kupita (Viwango na Kanuni) | 1.6 m/s |
| Halijoto ya mazingira (uendeshaji) (Vipimo) | -25 °C ... 85 °C (Plug / socket) |
| Upinzani wa moto (Viwango na Kanuni) | according to VDE 0472, Part 4, test type B |
| Nyenzo ya kondakta (Viwango na Kanuni) | Bare Cu litz wires |
| Upinzani wa kuunganisha (Viwango na Kanuni) | < 250.00 mΩ/m (at 30 MHz) |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Jumla) | V0 |
| Mizunguko ya kuingiza/kutoa (Hali za mazingira) | > 100 |
| Aina/kategoria ya ishara (Viwango na Kanuni) | INTERBUS |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Nyenzo) | V0 |
| Upinzani wa insulation (Viwango na Kanuni) | ≥ 5 GΩ*km |
| Ala ya nje, rangi (Viwango na Kanuni) | may green RAL 6017 |
| Volti ya kawaida, kebo (Viwango na Kanuni) | 250 V (Peak value, not for high-power applications) |
| Ala ya nje, nyenzo (Viwango na Kanuni) | PUR |
| Kiini/Kiini cha volteji cha majaribio (Viwango na Kanuni) | 1500 Vrms |
| Sehemu ya msalaba ya kondakta (Viwango na Kanuni) | 3x 2x 0.22 mm² |
| Idadi ya mizunguko ya kupinda (Viwango na Kanuni) | 5000000 |
| Kiini/Ngao ya Volti ya Jaribio (Viwango na Kanuni) | 1000 Vrms |
| Aina ya kebo (kifupisho) (Viwango na Kanuni) | 900 |
| Kipenyo cha kebo ya nje D (Viwango na Kanuni) | 8 mm |
| Insulation ya kondakta wa nyenzo (Viwango na Kanuni) | PE |
| Halijoto ya mazingira (uendeshaji) (Viwango na Kanuni) | -40 °C ... 80 °C (cable, fixed installation) |
| Mstari wa ishara ya muundo wa kondakta (Viwango na Kanuni) | 32x 0.10 mm |
| Upunguzaji wa mazungumzo ya karibu (INAYOFUATA) (Viwango na Kanuni) | ≥ 61 dB (at 772 kHz) |
| Kiwango cha chini cha kuinama, usakinishaji usiobadilika (Viwango na Kanuni) | 7.5 x D |
| Kiwango cha chini cha kuinama, usakinishaji unaonyumbulika (Viwango na Kanuni) | 15 x D |
Maelezo ya Bidhaa
Conect. plug. to be apar. front wall, INTERBUS (16 MBit/s), 5-pole, halogen-free PUR, Green RAL 6017, shielded, Male connector, straight, M12, coding: B, a free cable end, Front mounting, M16 x 1.5, C
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
