SACCBP-MSD-4CON-PG9/2,0-931SCO

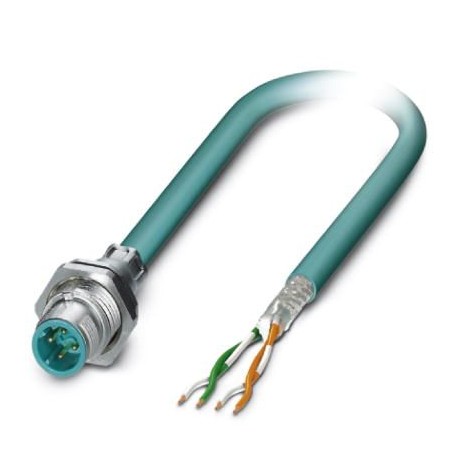

SACCBP-MSD-4CON-PG9/2,0-931SCO 1437740 PHOENIX CONTACT Bus system flush-type plug
$0.00USD
4215 kwenye hisa
Vipimo Muhimu
GTIN:4046356458481
Dokezo:Made to Order (non-returnable)
(Kebo):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Ufunguo wa kuagiza:1437740
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4046356458481 |
| Dokezo | Made to Order (non-returnable) |
| (Kebo) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Ufunguo wa kuagiza | 1437740 |
| Kitengo cha kufungasha | 1 pc |
| Nchi ya asili | DE (Germany) |
| RoHS ya China (Kebo) | Environmentally Friendly Use Period = 50 |
| Nambari ya ushuru maalum | 85444290 |
| Nyenzo za mawasiliano (Jumla) | CuZn |
| Nyenzo, knurls (Jumla) | Nickel-plated brass |
| Nyenzo ya kuziba (Jumla) | NBR |
| Usimbaji (Hali za mazingira) | D - data |
| (Viwango na Kanuni) | -20 °C ... 80 °C (cable, flexible installation) |
| Kiwango cha ulinzi (Vipimo) | IP67 |
| Nyenzo za mtoa huduma za mawasiliano (Jumla) | PA 6.6 |
| Nyenzo ya uso wa mguso (Jumla) | Ni/Au |
| Volti iliyokadiriwa (Hali ya mazingira) | 250 V |
| Uzito kwa Kipande (bila kujumuisha upakiaji) | 116.000 g |
| Urefu wa kebo (Data Muhimu ya Biashara) | 2 m |
| Kulinda (Viwango na Kanuni) | Aluminum-coated foil, tinned copper braided shield |
| Aina ya kebo (Viwango na Kanuni) | PUR ETHERNET 2x2 FLEX |
| Upunguzaji (Viwango na Kanuni) | 3.2 dB (with 1 MHz) |
| Rangi za waya (Viwango na Kanuni) | white/orange-orange, white/green-green |
| Uzito wa kebo (Viwango na Kanuni) | 42 kg/km |
| Kiwango cha uchafuzi wa mazingira (Hali ya mazingira) | 3 |
| Haina Halojeni (Viwango na Kanuni) | according to IEC 60754-1 |
| Idadi ya nafasi (Hali ya mazingira) | 4 |
| Mtindo wa UL AWM (Viwango na Kanuni) | 20963 (80°C/30 V) |
| Mzunguko wa jumla (Viwango na Kanuni) | Two pairs with two fillers to the core |
| Kategoria ya volteji kupita kiasi (Hali za mazingira) | II |
| Aina/kategoria ya ishara (Hali za mazingira) | Ethernet |
| Jozi zilizosokotwa (Viwango na Kanuni) | 2 cores to the pair |
| Uwezo wa kebo (Viwango na Kanuni) | approx. 45 nF/km (at 1 kHz) |
| Muda wa utekelezaji wa ishara (Viwango na Kanuni) | 5.3 ns/m |
| Kizuizi cha wimbi (Viwango na Kanuni) | 100 Ω ±5 Ω (at 100 MHz) |
| Mstari wa ishara wa AWG (Viwango na Kanuni) | 26 |
| Muundo wa kebo (Viwango na Kanuni) | 2x2xAWG26/7; SF/UTP |
| Upinzani wa kitanzi (Viwango na Kanuni) | ≤ 290.00 Ω/km |
| Mkondo uliokadiriwa kwa 40°C (Hali ya mazingira) | 4 A (Plug/socket in accordance with IEC 61076-2-101, cable technical data is to be observed) |
| Halijoto ya mazingira (uendeshaji) (Vipimo) | -25 °C ... 90 °C (Plug / socket) |
| Upinzani wa moto (Viwango na Kanuni) | according to IEC 60332-1-2 |
| Hasara ya marejesho (RL) (Viwango na Kanuni) | 23 dB (at 4 МHz) |
| Upinzani dhidi ya mafuta (Viwango na Kanuni) | according to EN 60811-2-1 |
| Nyenzo ya kondakta (Viwango na Kanuni) | Bare Cu litz wires |
| Upinzani wa kuunganisha (Viwango na Kanuni) | ≤ 100.00 mΩ/m (at 10 MHz) |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Jumla) | V0 |
| Aina/kategoria ya ishara (Viwango na Kanuni) | Ethernet CAT5 (IEC 11801), 100 Mbps |
| Nguvu ya mvutano GRP (Viwango na Kanuni) | ≤ 80 N |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Nyenzo) | V0 |
| Upinzani wa insulation (Viwango na Kanuni) | ≥ 500 MΩ*km |
| Ala ya nje, rangi (Viwango na Kanuni) | water blue RAL 5021 |
| Volti ya kawaida, kebo (Viwango na Kanuni) | ≤ 100 V (Peak value, not for high-power applications) |
| Unene wa ala ya nje (Viwango na Kanuni) | 1.2 mm |
| Ala ya nje, nyenzo (Viwango na Kanuni) | PUR |
| Kiini/Kiini cha volteji cha majaribio (Viwango na Kanuni) | 700 V (50 Hz, 1 min.) |
| Sehemu ya msalaba ya kondakta (Viwango na Kanuni) | 2x 2x 0.14 mm² |
| Kifuniko cha ngao ya macho (Viwango na Kanuni) | 70 % |
| Viwango/vipimo (Viwango na Kanuni) | Electrical requirements EN 50288-2-2 |
| Kiini/Ngao ya Volti ya Jaribio (Viwango na Kanuni) | 700 V (50 Hz, 1 min.) |
| Aina ya kebo (kifupisho) (Viwango na Kanuni) | 93E |
| Kipenyo cha kebo ya nje D (Viwango na Kanuni) | 6.4 mm ±0.2 mm |
| Insulation ya kondakta wa nyenzo (Viwango na Kanuni) | Foamed PE |
| Halijoto ya mazingira (uendeshaji) (Viwango na Kanuni) | -40 °C ... 80 °C (cable, fixed installation) |
| Mstari wa ishara ya muundo wa kondakta (Viwango na Kanuni) | 7x 0.16 mm |
| Halijoto ya kawaida (usakinishaji) (Viwango na Kanuni) | -20 °C ... 80 °C |
| Kipenyo cha msingi ikijumuisha insulation (Viwango na Kanuni) | 0.98 mm |
| Uwezo wa sasa wa kubeba kebo (Viwango na Kanuni) | 2 A (according to DIN VDE 0891-1) |
| Upunguzaji wa mazungumzo ya karibu (INAYOFUATA) (Viwango na Kanuni) | 65.3 dB (with 1 MHz) |
| Halijoto ya kawaida (uhifadhi/usafiri) (Viwango na Kanuni) | -20 °C ... 80 °C |
| Kiwango cha chini cha kuinama, usakinishaji usiobadilika (Viwango na Kanuni) | 4 x D |
| Kiwango cha chini cha kuinama, usakinishaji unaonyumbulika (Viwango na Kanuni) | 8 x D |
| Upunguzaji wa mazungumzo ya karibu na mwisho (PSNEXT) unaofupishwa kwa nguvu (Viwango na Kanuni) | 62.3 dB (with 1 MHz) |
Maelezo ya Bidhaa
Built-in mounting plug for bus system, Ethernet, 4-pole, SPEEDCON M12, shielded, D-coded, backwall mount/screw mount with Pg9 thread, with 2.0 m bus cable, 2 x 2 x 0.2 mm²
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
