SACCBP-MSB-5CON-PG9/5,0-900SCO

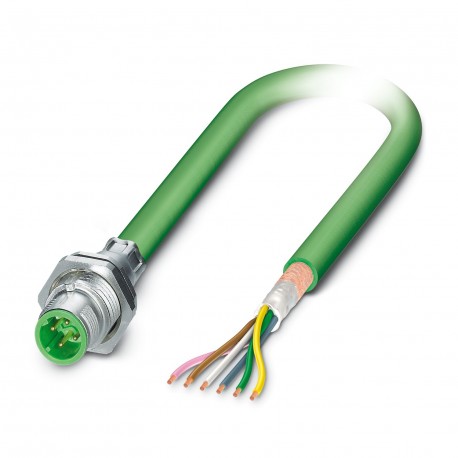

SACCBP-MSB-5CON-PG9/5,0-900SCO 1437672 PHOENIX CONTACT Bus system flush-type plug
$0.00USD
4112 kwenye hisa
Vipimo Muhimu
:• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
Usimbaji:B
Imehifadhiwa:yes
Kulinda:Braided copper wires
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. | |
| Usimbaji | B |
| Imehifadhiwa | yes |
| Kulinda | Braided copper wires |
| Aina ya kebo | INTERBUS |
| Ubunifu wa kichwa | Plug |
| Dokezo la usalama | WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. |
| Aina ya vitambuzi | INTERBUS |
| Kuongeza kasi | 3.2 m/s² |
| Urefu wa kebo | 5 m |
| Uzito wa kebo | 70 kg/km |
| Aina ya bidhaa | Circular connectors (device side) |
| Kasi ya mawimbi | 0.66 c |
| Aina ya kupachika | Rear mounting |
| Mzunguko wa jumla | 3 pairs to the core |
| Nyenzo ya kuziba | FKM |
| Jozi zilizopinda | 2 cores to the pair |
| Radi ya kupinda | 120 mm |
| Uwezo wa kebo | ≤ 60 nF/km (At 800 Hz) |
| Kizuizi cha wimbi | 120 Ω ±20 % (at 64 kHz) |
| Mstari wa ishara wa AWG | 24 |
| Muundo wa kebo | 3 x 2 x 0.22 mm² |
| Upinzani wa kitanzi | ≤ 159.80 Ω/km |
| Njia ya kupita | 10 m |
| Kiwango cha upitaji | 1.6 m/s |
| Upinzani wa moto | according to VDE 0472, Part 4, test type B |
| Aina ya uzi wa kichwa | M12 |
| Soketi ya kebo ya kichwa | straight |
| Aina ya kufunga kichwa | SPEEDCON |
| Nyenzo ya kondakta | Bare Cu litz wires |
| Mkondo wa nominella IN | 4 A |
| Volti ya kawaida ya Umoja wa Mataifa | 48 V AC |
| Maelezo kuhusu uendeshaji | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
| Waya moja, rangi | green-yellow, white-brown, gray-pink |
| Upinzani wa kuunganisha | < 250.00 mΩ/m (at 30 MHz) |
| Kiwango cha uchafuzi wa mazingira | 3 |
| Mchoro wa vipimo | |
| Idadi ya nafasi | 5 |
| Volti ya kuongezeka iliyokadiriwa | 1.5 kV |
| Njia ya maambukizi | Copper |
| Kiwango cha ulinzi | IP67 (When plugged in) |
| Idadi ya soketi za kebo | 1 |
| Kategoria ya volteji nyingi | II |
| Aina/kategoria ya ishara | INTERBUS |
| Uteuzi wa kawaida | M12 connector |
| Upinzani wa insulation | 100 MΩ |
| Ala ya nje, rangi | may green RAL 6017 |
| Volti ya kawaida, kebo | 250 V (Peak value, not for high-power applications) |
| Ala ya nje, nyenzo | PUR |
| Kiini/Kiini cha volteji cha jaribio | 1500 Vrms |
| Sehemu ya msalaba ya kondakta | 3x 2x 0.22 mm² |
| Kipenyo cha kebo ya nje | 8.00 mm |
| Uzuiaji wa waya wa nyenzo | PE |
| Idadi ya mizunguko ya kupinda | 5000000 |
| Viwango/vipimo | IEC 61076-2-101 |
| Kiini/Ngao ya Volti ya Jaribio | 1000.00 Vrms |
| Aina ya kebo (kifupisho) | 900 |
| Upinzani wa insulation ya kebo | ≥ 5 GΩ*km |
| Mizunguko ya kuingiza/kutoa | > 100 |
| Halijoto ya mazingira (uendeshaji) | -30 °C ... 70 °C (Cable, flexible installation) |
| Mstari wa ishara ya muundo wa kondakta | 32x 0.10 mm |
| Upunguzaji wa mazungumzo ya karibu (INAYOFUATA) | ≥ 61 dB (at 772 kHz) |
| Ukadiriaji wa kuwaka kulingana na UL 94 | V0 |
| Kiwango cha chini cha kuinama, usakinishaji usiobadilika | 7.5 x D |
| Kiwango cha chini cha kuinama, usakinishaji rahisi | 15 x D |
Maelezo ya Bidhaa
Bus system flush-type male connector, INTERBUS, 5-pos., M12, shielded, B-coded, SPEEDCON, rear/screw mounting with Pg9 thread, with 5.0 m bus line
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
