SACCBP-FS-12CON-M16/2,0-PVCSCO

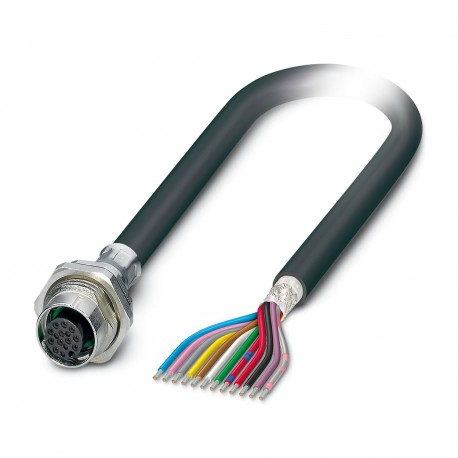

SACCBP-FS-12CON-M16/2,0-PVCSCO 1442191 PHOENIX CONTACT Flush-type connector
$68.76USD
176 kwenye hisa
Vipimo Muhimu
:-25 °C ... 85 °C (Cable, flexible installation)
Usimbaji:A
Imehifadhiwa:yes
Kulinda:Tinned copper braided shield
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| -25 °C ... 85 °C (Cable, flexible installation) | |
| Usimbaji | A |
| Imehifadhiwa | yes |
| Kulinda | Tinned copper braided shield |
| Aina ya kebo | PVC black |
| Ubunifu wa kichwa | Socket |
| Aina ya vitambuzi | Universal |
| Aina ya uzi | M12 |
| Urefu wa kebo | 2 m |
| Aina ya bidhaa | Circular connectors (device side) |
| Alama fupi | PVC |
| Dokezo la mkutano | Thread with flat nut |
| Aina ya kupachika | Rear mounting M16 x 1.5 Thread with flat nut |
| Mzunguko wa jumla | Six pairs around the filler to the core |
| Nyenzo ya kuziba | FKM |
| Marekebisho ya makala | 09 |
| Upinzani wa kebo | 142 Ω/km (at 20 °C) |
| Nyenzo ya mawasiliano | CuZn |
| Upinzani wa moto | IEC 60332-1-2, IEC 60332-1, FT1, VW-1 |
| Aina ya uzi wa kichwa | M12 |
| Upinzani mwingine | Hydrolysis and microbe resistant as per VDE 0282 section 10 |
| Mbinu ya muunganisho | Cable connection |
| Soketi ya kebo ya kichwa | straight |
| Aina ya kufunga kichwa | SPEEDCON |
| Upinzani dhidi ya mafuta | in accordance with DIN EN 60811-404 |
| Kukaza torque | 3 Nm ... 4 Nm (Installation-side) |
| Nyenzo ya kondakta | Tin-plated Cu litz wires |
| Upinzani wa mguso | ≤ 3 mΩ |
| Mkondo wa nominella IN | 1.5 A |
| Volti ya kawaida ya Umoja wa Mataifa | 30 V |
| Maelezo kuhusu uendeshaji | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
| Taarifa ya agizo: | Lock nut is included in the scope of delivery |
| Waya moja, rangi | white-brown, green-yellow, gray-pink, blue-red, black-violet, gray/pink-red/blue |
| Sehemu ya msalaba wa kebo | 6x 2x 0.14 mm² |
| Kiwango cha uchafuzi wa mazingira | 3 |
| Idadi ya nafasi | 12 |
| Volti ya kuongezeka iliyokadiriwa | 0.8 kV |
| Jaribio la voltage, kebo | 1500 V AC |
| Kiwango cha ulinzi | IP67 (When plugged in) |
| Idadi ya soketi za kebo | 1 |
| Kategoria ya volteji nyingi | II |
| Aina/kategoria ya ishara | Universal |
| Uteuzi wa kawaida | M12 connector |
| Upinzani wa insulation | ≥ 100 MΩ |
| Unene, insulation | 0.21 mm |
| Ala ya nje, rangi | black RAL 9005 |
| Nyenzo, ala ya ndani | PVC |
| Volti ya kawaida, kebo | 300 V |
| Ala ya nje, nyenzo | PVC |
| Sehemu ya msalaba ya kondakta | 6x 2x 0.14 mm² |
| Aina ya muunganisho wa mawasiliano | Socket |
| Kipenyo cha kebo ya nje | 7.00 mm ±0.03 mm |
| Kifuniko cha ngao ya macho | 85 % |
| Nyenzo za mawasiliano | PA 6.6 |
| Nyenzo ya uso wa mguso | Au |
| Uzuiaji wa waya wa nyenzo | PVC |
| Viwango/vipimo | IEC 61076-2-101 |
| Upinzani wa juu zaidi wa kondakta | 142 Ω/km |
| Mizunguko ya kuingiza/kutoa | > 100 |
| Nyenzo ya kuunganisha skrubu | Zinc die-cast, nickel-plated |
| Kipenyo cha waya ikijumuisha insulation | 1 mm ±0.05 mm |
| Halijoto ya mazingira (uendeshaji) | -40 °C ... 85 °C (cable, fixed installation) |
| Mstari wa ishara ya muundo wa kondakta | 18x 0.10 mm |
| Ukadiriaji wa kuwaka kulingana na UL 94 | V0 |
| Radi ndogo zaidi ya kupinda, usakinishaji usiobadilika | 42 mm |
| Radi ndogo zaidi ya kupinda, usakinishaji unaoweza kusongeshwa | 105 mm |
Maelezo ya Bidhaa
Conect. plug. to be apar. wall poster., Universal, 12-pole, PVC/PVC, black RAL 9005, shielded, Built-in mounting female, straight, M12-SPEEDCON, coding: A , free cable end, Rear mounting, M16 x 1.5, C
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
