SACC-SQ-M12MS-4CON-25F/0,5

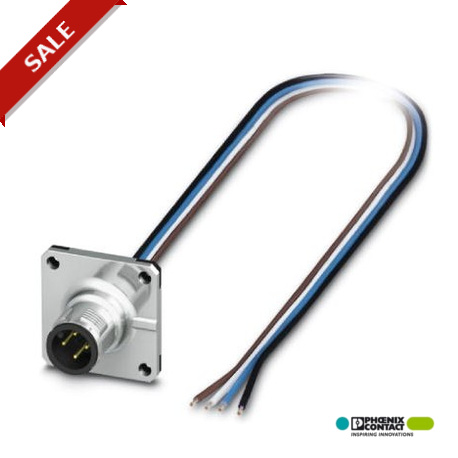

SACC-SQ-M12MS-4CON-25F/0,5 1419991 PHOENIX CONTACT Sensor/Actuator flush-type plug, 4-pos., M12, A-coded, fr..
$0.00USD
4890 kwenye hisa
Vipimo Muhimu
:-40 °C ... 85 °C (without mechanical actuation)
Dokezo:The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Usimbaji:A - standard
Toki:3 Nm ... 4 Nm (Installation-side)
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| -40 °C ... 85 °C (without mechanical actuation) | |
| Dokezo | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
| Usimbaji | A - standard |
| Toki | 3 Nm ... 4 Nm (Installation-side) |
| Aina ya kebo | TPE litz wire |
| Rangi za waya | brown, white, blue, black |
| Aina ya kupachika | Front mounting Square flange |
| Volti iliyokadiriwa | 250 V |
| Onyesho la hali | No |
| Mstari wa ishara wa AWG | 22 |
| Urefu wa kebo | 0.5 m |
| Nyenzo ya mawasiliano | CuZn |
| Nyenzo, knurls | Zinc die-cast, nickel-plated |
| Kiwango cha uchafuzi wa mazingira | 3 |
| Nyenzo ya kuziba | FKM |
| Mbinu ya muunganisho | Individual wires |
| Nyenzo ya kondakta | Tin-plated Cu litz wires |
| Idadi ya nafasi | 4 |
| Volti ya kuongezeka iliyokadiriwa | 2.5 kV |
| Jaribio la voltage, kebo | 2000 V AC |
| Upinzani wa kondakta | ≤ 57.6 mΩ/m |
| Kiwango cha ulinzi | IP67 |
| Kategoria ya volteji nyingi | II |
| Upinzani wa insulation | ≥ 100 MΩ |
| Nyenzo ya mwili wa mshiko | Zinc die-cast, nickel-plated |
| Viwango/kanuni | M12 connector IEC 61076-2-101 |
| Unene, insulation | 0.21 mm (Core insulation) |
| Volti ya kawaida, kebo | 300 V |
| Imekadiriwa mkondo wa joto kwa 40°C | 4 A |
| Sehemu ya msalaba ya kondakta | 0.34 mm² |
| Nyenzo za mawasiliano | PA 66 |
| Nyenzo ya uso wa mguso | Ni/Au |
| Mizunguko ya kuingiza/kutoa | > 100 |
| Insulation ya kondakta wa nyenzo | TPE |
| Halijoto ya mazingira (uendeshaji) | -25 °C ... 85 °C (Plug / socket) |
| Mstari wa ishara ya muundo wa kondakta | 7x 0.25 mm |
| Kipenyo cha msingi ikijumuisha insulation | 1.2 mm ±0.07 mm |
| Ukadiriaji wa kuwaka kulingana na UL 94 | V0 |
Maelezo ya Bidhaa
Conect. plug. to be apar. front wall, 4-pole, Male connector, straight, M12, coding: A, free cable end, Front mounting, Square flange, Individual braided wires, cable length: 0.5 m, 0.34 mm², TPE brai
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
