SACC-M12MS-4CON-PG 9-M PWR

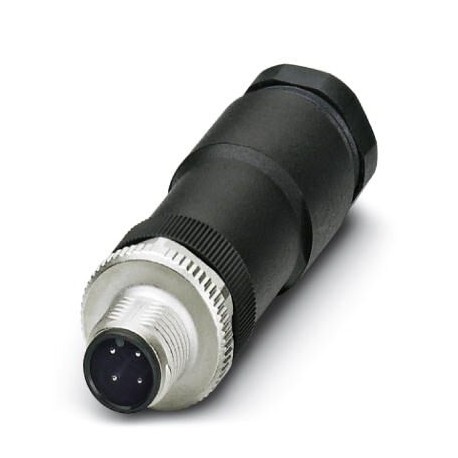

SACC-M12MS-4CON-PG 9-M PWR 1106747 PHOENIX CONTACT Power connectors, 4-position, Plug straight M12, A-coded,..
$0.00USD
3341 kwenye hisa
Vipimo Muhimu
GTIN:4063151000127
Ufunguo wa kuagiza:1106747
(Michoro):
Kitengo cha kufungasha:1
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4063151000127 |
| Ufunguo wa kuagiza | 1106747 |
| (Michoro) | |
| Kitengo cha kufungasha | 1 |
| Urefu (Michoro) | 65.5 mm |
| Nambari ya ushuru maalum | 85366990 |
| (Hali ya mazingira) | 0.2 Nm (Screw terminal blocks) |
| Kumbuka (Hali ya mazingira) | Strip 22 mm off the cable sheath, strip 7 mm off the conductor insulation, crimp the ferrule, then shorten this to 5 mm. Length of conductor with shortened ferrule: 20 mm. Connect conductors and tighten the mounting screws with 0.2 Nm. |
| Nyenzo za mawasiliano (Jumla) | CuZn |
| Nyenzo, knurls (Jumla) | Zinc die-cast, nickel-plated |
| Nyenzo ya kuziba (Jumla) | NBR (Cable clamping) |
| Usimbaji (Hali za mazingira) | A - standard |
| Diameter housing (Drawings) | 20 mm |
| Torque (Hali ya mazingira) | 0.4 Nm (M12 knurl) |
| eCl@ss 9.0 (Uainishaji) | 27440102 |
| Nyenzo ya mwili wa mshiko (Jumla) | PA |
| eCl@ss 10.0.1 (Uainishaji) | 27440102 |
| Viwango/vipimo (Kebo) | M12 connector IEC 61076-2-101 |
| Kiwango cha ulinzi (Vipimo) | IP67 |
| Nyenzo za mtoa huduma za mawasiliano (Jumla) | PA |
| Nyenzo ya uso wa mguso (Jumla) | Ni/Au |
| External cable diameter (Drawings) | 6 mm ... 8 mm |
| Volti iliyokadiriwa (Hali ya mazingira) | 250 V DC |
| Viwango/vipimo (Nyenzo) | M12 connector IEC 61076-2-101 |
| Onyesho la hali (Hali ya mazingira) | No |
| Eneo la mpini wa rangi (Hali ya mazingira) | black |
| Mbinu ya muunganisho (Hali za mazingira) | Screw connection |
| Kiwango cha uchafuzi wa mazingira (Hali ya mazingira) | 3 |
| Idadi ya nafasi (Hali ya mazingira) | 4 |
| Kategoria ya volteji kupita kiasi (Hali za mazingira) | II |
| Stripping length of the sheath (Drawings) | 20 mm |
| Maagizo ya uunganishaji (Hali ya mazingira) | The wires can be connected both with ferrules and without ferrules |
| Upinzani wa insulation (Hali ya mazingira) | > 10 GΩ |
| Viwango/kanuni (Mazingira ya Mazingira) | M12 connector IEC 61076-2-101 |
| Mkondo uliokadiriwa kwa 40°C (Hali ya mazingira) | 8 A |
| Halijoto ya mazingira (uendeshaji) (Vipimo) | -40 °C ... 85 °C (Plug / socket) |
| Sehemu ya msalaba ya kondakta (Hali ya mazingira) | 0.75 mm² ... 1.5 mm² (without ferrule) |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Kebo) | V0 |
| Sehemu ya msalaba ya kondakta AWG (Hali za mazingira) | 18 ... 16 (without ferrule) |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Jumla) | V0 |
| Mizunguko ya kuingiza/kutoa (Hali za mazingira) | ≥ 100 |
| Stripping length of the individual wire (Drawings) | 5 mm |
| Dimensional drawingPlug, M12 x 1, straight (Drawings) |
Maelezo ya Bidhaa
Power connector, 4-pole, M12 straight male connector, A-coded, Screw connection, knurling material: Zinc die-casting, nickel-plated, Pg9 cable gland, cable diameter 6 mm ... 8 mm
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
Dimensional drawingPlug, M12 x 1, straight
