SACC-M12MRS-3PECON-PG 9-M

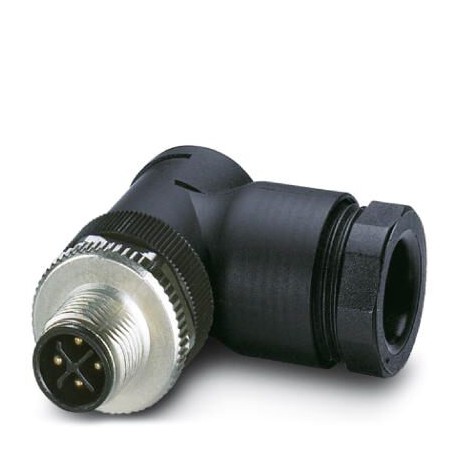

SACC-M12MRS-3PECON-PG 9-M 1107271 PHOENIX CONTACT Power connectors, 4-position, Plug angled M12, S-coded, Sc..
$0.00USD
4975 kwenye hisa
Vipimo Muhimu
GTIN:4063151008499
Ufunguo wa kuagiza:1107271
(Michoro):
Kitengo cha kufungasha:1 pc
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4063151008499 |
| Ufunguo wa kuagiza | 1107271 |
| (Michoro) | |
| Kitengo cha kufungasha | 1 pc |
| Nchi ya asili | DE (Germany) |
| Urefu (Michoro) | 41 mm |
| Nambari ya ushuru maalum | 85366990 |
| (Hali ya mazingira) | The connector pin assignment can be rotated 90° to the cable outlet |
| Kumbuka (Hali ya mazingira) | Strip 21 mm off the cable sheath, strip 6 mm off the conductor insulation, crimp the ferrule, then shorten this to 5 mm. Conductor length with shortened ferrule: 20 mm. Connect conductors and tighten the mounting screws with 0.2 Nm. |
| Nyenzo za mawasiliano (Jumla) | CuZn |
| Nyenzo, knurls (Jumla) | Zinc die-cast, nickel-plated |
| Nyenzo ya kuziba (Jumla) | NBR (Cable clamping) |
| Usimbaji (Hali za mazingira) | S power |
| Diameter housing (Drawings) | 20 mm |
| Torque (Hali ya mazingira) | 0.4 Nm (M12 knurl) |
| eCl@ss 9.0 (Uainishaji) | 27440102 |
| Nyenzo ya mwili wa mshiko (Jumla) | PA |
| eCl@ss 10.0.1 (Uainishaji) | 27440102 |
| Viwango/vipimo (Kebo) | M12 connector IEC 61076-2-111 |
| Kiwango cha ulinzi (Vipimo) | IP67 |
| Wrench size, union nut (Drawings) | 16 mm |
| Nyenzo za mtoa huduma za mawasiliano (Jumla) | PA |
| Nyenzo ya uso wa mguso (Jumla) | Au |
| External cable diameter (Drawings) | 6 mm ... 8 mm |
| Volti iliyokadiriwa (Hali ya mazingira) | 630 V AC |
| Viwango/vipimo (Nyenzo) | M12 connector IEC 61076-2-111 |
| Onyesho la hali (Hali ya mazingira) | No |
| Uzito kwa Kipande (bila kujumuisha upakiaji) | 0.000 g |
| Eneo la mpini wa rangi (Hali ya mazingira) | black |
| Mbinu ya muunganisho (Hali za mazingira) | Screw connection |
| Kiwango cha uchafuzi wa mazingira (Hali ya mazingira) | 3 |
| Idadi ya nafasi (Hali ya mazingira) | 4 |
| Kategoria ya volteji kupita kiasi (Hali za mazingira) | III |
| Stripping length of the sheath (Drawings) | 20 mm |
| Maagizo ya uunganishaji (Hali ya mazingira) | The wires can be connected both with ferrules and without ferrules |
| Upinzani wa insulation (Hali ya mazingira) | > 10 GΩ |
| Viwango/kanuni (Mazingira ya Mazingira) | M12 connector IEC 61076-2-111 |
| Mkondo uliokadiriwa kwa 40°C (Hali ya mazingira) | 12 A (when using 1.5 mm² conductors) |
| Halijoto ya mazingira (uendeshaji) (Vipimo) | -40 °C ... 85 °C (Plug / socket) |
| Sehemu ya msalaba ya kondakta (Hali ya mazingira) | 0.75 mm² ... 1.5 mm² (without ferrule) |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Kebo) | V0 |
| Sehemu ya msalaba ya kondakta AWG (Hali za mazingira) | 18 ... 16 (without ferrule) |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Jumla) | V0 |
| Mizunguko ya kuingiza/kutoa (Hali za mazingira) | > 100 |
| Stripping length of the individual wire (Drawings) | 5 mm |
| Dimensional drawingM12 x 1 male plug, angled (Drawings) |
Maelezo ya Bidhaa
Power connector, 4-pole, Angled male connector M12, S, Screw connection, knurling material: Zinc die-casting, nickel-plated, Pg9 cable gland, cable diameter 6 mm ... 8 mm, for alternating current up t
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
Dimensional drawingM12 x 1 male plug, angled
