SACC-EC-M12FS-4CON-PG 9/0,5 VA

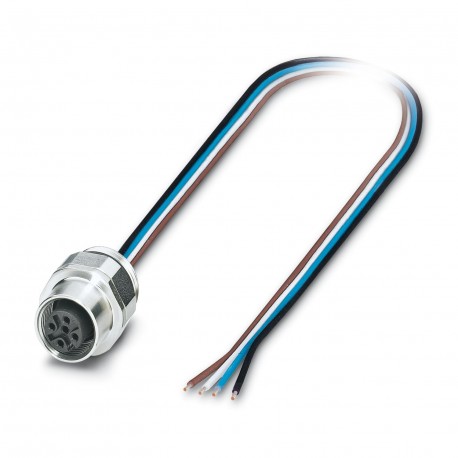

SACC-EC-M12FS-4CON-PG 9/0,5 VA 1554649 PHOENIX CONTACT Panel feed-through
$43.10USD
276 kwenye hisa
Vipimo Muhimu
:• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
Usimbaji:A
Jumla:Contact connection method: Crimp connection
Imehifadhiwa:no
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. | |
| Usimbaji | A |
| Jumla | Contact connection method: Crimp connection |
| Imehifadhiwa | no |
| Aina ya kebo | TPE litz wire |
| Maombi | Signal |
| Ubunifu wa kichwa | Socket |
| Dokezo la usalama | WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. |
| Aina ya vitambuzi | Universal |
| Aina ya uzi | M12 |
| Urefu wa kebo | 0.5 m |
| Aina ya bidhaa | Circular connectors (device side) |
| Dokezo la mkutano | With locking nut |
| Aina ya kupachika | Front mounting Pg9 With locking nut |
| Nyenzo ya kuziba | NBR |
| Mstari wa ishara wa AWG | 22 |
| Marekebisho ya makala | 09 |
| Upinzani wa kebo | ≤ 57.6 Ω/km |
| Nyenzo ya mawasiliano | CuZn |
| Aina ya uzi wa kichwa | M12 |
| Mbinu ya muunganisho | Individual wires |
| Soketi ya kebo ya kichwa | straight |
| Aina ya kufunga kichwa | Standard |
| Kukaza torque | 2 Nm ... 3 Nm (Installation-side) |
| Nyenzo ya kondakta | Tin-plated Cu litz wires |
| Upinzani wa mguso | ≤ 3 mΩ |
| Mkondo wa nominella IN | 4 A |
| Volti ya kawaida ya Umoja wa Mataifa | 250 V (AC) |
| Maelezo kuhusu uendeshaji | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
| Taarifa ya agizo: | Lock nut is included in the scope of delivery |
| Waya moja, rangi | brown, white, blue, black |
| Sehemu ya msalaba wa kebo | 0.34 mm² |
| Kiwango cha uchafuzi wa mazingira | 3 |
| Idadi ya nafasi | 4 |
| Volti ya kuongezeka iliyokadiriwa | 2.5 kV |
| Jaribio la voltage, kebo | 2000 V AC |
| Kiwango cha ulinzi | IP65/IP67/IP69/IP69K |
| Idadi ya soketi za kebo | 1 |
| Kategoria ya volteji nyingi | II |
| Aina/kategoria ya ishara | Universal |
| Uteuzi wa kawaida | M12 connector |
| Upinzani wa insulation | > 100 MΩ |
| Unene, insulation | 0.21 mm (Core insulation) |
| Volti ya kawaida, kebo | 300 V |
| Sehemu ya msalaba ya kondakta | 0.34 mm² |
| Aina ya muunganisho wa mawasiliano | Socket |
| Nyenzo za mawasiliano | PA 66 GF |
| Nyenzo ya uso wa mguso | Au |
| Uzuiaji wa waya wa nyenzo | TPE |
| Viwango/vipimo | IEC 61076-2-101 |
| Upinzani wa juu zaidi wa kondakta | 57.6 Ω/km |
| Upinzani wa insulation ya kebo | ≥ 20 MΩ*km |
| Mizunguko ya kuingiza/kutoa | > 100 |
| Nyenzo ya kuunganisha skrubu | Stainless steel |
| Kipenyo cha waya ikijumuisha insulation | 1.2 mm ±0.07 mm |
| Halijoto ya mazingira (uendeshaji) | -40 °C ... 85 °C (cable, fixed installation) |
| Mstari wa ishara ya muundo wa kondakta | 7x 0.25 mm |
| Ukadiriaji wa kuwaka kulingana na UL 94 | V0 |
Maelezo ya Bidhaa
Conect. plug. to be apar. front wall, Universal, 4-pole, Built-in mounting female, straight, M12-Standard, coding: A, free cable end, Front wall mounting, Pg9, Single stranded wires, cable length: 0.5
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
