SACC-DSI-M12FS-5CON-M16/1,0

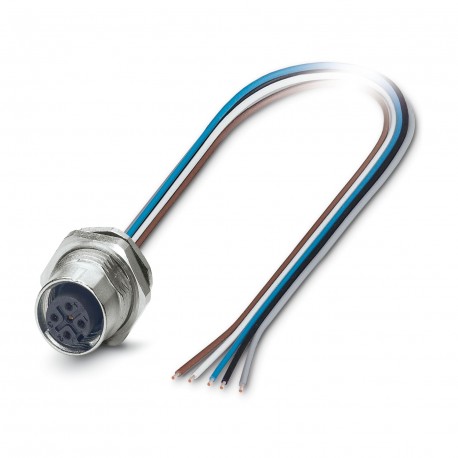

SACC-DSI-M12FS-5CON-M16/1,0 1419530 PHOENIX CONTACT Sensor/actuator flush-type socket, 5-pos., M12 SPEEDCON,..
$0.00USD
3193 kwenye hisa
Vipimo Muhimu
:• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
Usimbaji:A
Jumla:Contact connection method: Crimp connection
Imehifadhiwa:no
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. | |
| Usimbaji | A |
| Jumla | Contact connection method: Crimp connection |
| Imehifadhiwa | no |
| Aina ya kebo | TPE litz wire |
| Ubunifu wa kichwa | Socket |
| Dokezo la usalama | WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. |
| Aina ya vitambuzi | Universal |
| Aina ya uzi | M12 |
| Urefu wa kebo | 1 m |
| Aina ya bidhaa | Circular connectors (device side) |
| Dokezo la mkutano | With flat nut |
| Aina ya kupachika | Rear mounting M16 x 1.5 With flat nut |
| Nyenzo ya kuziba | FKM |
| Mstari wa ishara wa AWG | 22 |
| Marekebisho ya makala | 11 |
| Upinzani wa kebo | ≤ 57.6 mΩ/m |
| Nyenzo ya mawasiliano | CuZn |
| Aina ya uzi wa kichwa | M12 |
| Mbinu ya muunganisho | Individual wires |
| Soketi ya kebo ya kichwa | straight |
| Kukaza torque | 3 Nm ... 4 Nm (Installation-side) |
| Nyenzo ya kondakta | Tin-plated Cu litz wires |
| Upinzani wa mguso | ≤ 3 mΩ |
| Mkondo wa nominella IN | 4 A |
| Volti ya kawaida ya Umoja wa Mataifa | 60 V |
| Maelezo kuhusu uendeshaji | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
| Taarifa ya agizo: | Lock nut is included in the scope of delivery |
| Waya moja, rangi | black, brown,blue, white, gray |
| Sehemu ya msalaba wa kebo | 0.34 mm² |
| Kiwango cha uchafuzi wa mazingira | 3 |
| Idadi ya nafasi | 5 |
| Volti ya kuongezeka iliyokadiriwa | 1.5 kV AC |
| Jaribio la voltage, kebo | 2000 V AC |
| Kiwango cha ulinzi | IP67 (When plugged in) |
| Idadi ya soketi za kebo | 1 |
| Kategoria ya volteji nyingi | II |
| Aina/kategoria ya ishara | Universal |
| Uteuzi wa kawaida | M12 connector |
| Upinzani wa insulation | ≥ 100 MΩ |
| Unene, insulation | 0.21 mm |
| Volti ya kawaida, kebo | 300 V |
| Sehemu ya msalaba ya kondakta | 0.34 mm² |
| Aina ya muunganisho wa mawasiliano | Socket |
| Nyenzo za mawasiliano | PA 6.6 |
| Nyenzo ya uso wa mguso | Au |
| Uzuiaji wa waya wa nyenzo | TPE |
| Viwango/vipimo | according to IEC 61076-2-101 |
| Upinzani wa juu zaidi wa kondakta | 57.6 mΩ/m |
| Upinzani wa insulation ya kebo | ≥ 20 MΩ*km |
| Mizunguko ya kuingiza/kutoa | > 100 |
| Nyenzo ya kuunganisha skrubu | Zinc die-cast, nickel-plated |
| Kipenyo cha waya ikijumuisha insulation | 1.2 mm ±0.07 mm |
| Halijoto ya mazingira (uendeshaji) | -40 °C ... 85 °C (cable, fixed installation) |
| Mstari wa ishara ya muundo wa kondakta | 7x 0.25 mm |
| Ukadiriaji wa kuwaka kulingana na UL 94 | V0 |
Maelezo ya Bidhaa
Built-in sensor/actuator mounting female, 5-pole, SPEEDCON M12, A-coding, rear wall mount/bolt mount, with M16 thread, with 1 m TPE twisted wire, 5 x 0.34 mm²
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
