SACB-C-H180-8/ 8-20,0PUR SCO P

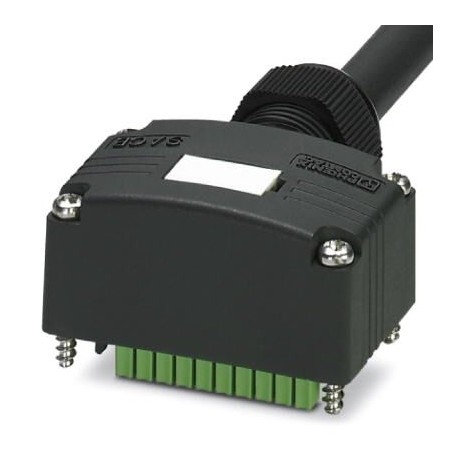

SACB-C-H180-8/ 8-20,0PUR SCO P 1143054 PHOENIX CONTACT Connector hood, application: Sensor/actuator box, num..
$0.00USD
4079 kwenye hisa
Vipimo Muhimu
GTIN:4063151102197
Ufunguo wa kuagiza:1143054
(Jumla):
(Michoro):120 V DC
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4063151102197 |
| Ufunguo wa kuagiza | 1143054 |
| (Jumla) | |
| (Michoro) | 120 V DC |
| Kitengo cha kufungasha | 1 |
| Dokezo (Michoro) | NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g. by using cable ties. |
| REAch SVHC (Kebo) | Lead 7439-92-1 |
| Nambari ya ushuru maalum | 85444290 |
| (Nyenzo za insulation) | -5 °C ... 80 °C (cable, flexible installation) |
| Volti iliyokadiriwa (Michoro) | 120 V AC |
| Number of slots (Drawings) | 4 |
| Kiwango cha ulinzi (Jumla) | IP65 |
| Mchoro wa vipimo (Michoro) | |
| Total rated current (Drawings) | 10 A |
| Cable type (Insulation material) | PUR/PVC black |
| Wire colors (Insulation material) | brown, blue, green/yellow, white, green, yellow, gray, gray/pink, red/blue, white/green, brown/green |
| Cable weight (Insulation material) | 122 kg/km |
| UL AWM style (Insulation material) | 20549 |
| Overall twist (Insulation material) | Wires twisted in layers |
| Bending radius (Insulation material) | 87 mm |
| Urefu wa kebo (Hali ya mazingira) | 20 m |
| AWG signal line (Insulation material) | 20 |
| Traversing path (Insulation material) | 2 m |
| Traversing rate (Insulation material) | 2 m/s |
| AWG power supply (Insulation material) | 17 |
| Mbinu ya muunganisho (Hali za mazingira) | Pluggable screw connection |
| Flame resistance (Insulation material) | DIN EN 50265 |
| Other resistance (Insulation material) | Highly resistant to acids, alkaline solutions and solvents |
| Resistance to oil (Insulation material) | according to VDE 0472 Part 803 |
| Cable abbreviation (Insulation material) | LiYY11Y-HF |
| Conductor material (Insulation material) | Bare Cu litz wires |
| Special properties (Insulation material) | Silicone-free |
| Halijoto ya mazingira (uendeshaji) (Jumla) | -25 °C ... 80 °C |
| Test voltage, cable (Insulation material) | 2000 V |
| External sheath, color (Insulation material) | black RAL 9005 |
| Inner sheath thickness (Insulation material) | ≥ 0.15 mm |
| Material, inner sheath (Insulation material) | PVC |
| Nominal voltage, cable (Insulation material) | 300 V |
| Outer sheath thickness (Insulation material) | ≥ 0.38 mm |
| Outer sheath, material (Insulation material) | PUR |
| Conductor cross section (Insulation material) | 8x 0.5 mm² (Signal line) |
| Current carrying capacity per slot (Drawings) | 4 A |
| Number of bending cycles (Insulation material) | 1500000 |
| Cable type (abbreviation) (Insulation material) | PUR |
| External cable diameter D (Insulation material) | 8.7 mm ±0.2 mm |
| Nyenzo ya makazi (Data kuu ya muunganisho wa kebo) | PBT |
| Nyenzo ya kuziba (Data kuu ya muunganisho wa kebo) | NBR |
| Current carrying capacity per I/O signal (Drawings) | 2 A |
| Material conductor insulation (Insulation material) | PVC |
| Ambient temperature (operation) (Insulation material) | -40 °C ... 90 °C (cable, fixed installation) |
| Conductor structure signal line (Insulation material) | 28x 0.15 mm |
| Core diameter including insulation (Insulation material) | 1.5 mm ±0.1 mm (Signal line) |
| Conductor structure, voltage supply (Insulation material) | 56x 0.15 mm |
| Minimum bending radius, fixed installation (Insulation material) | 7.5 x D |
| Minimum bending radius, flexible installation (Insulation material) | 10 x D |
| Nyenzo ya mguso, upande mkuu wa kebo (data ya muunganisho wa kebo kuu) | CU alloy |
| Nyenzo ya uso wa mguso, upande mkuu wa kebo (data ya muunganisho wa kebo kuu) | Sn |
| Nyenzo ya kibebaji cha mguso upande wa kebo kuu (data ya muunganisho wa kebo kuu) | PA |
Maelezo ya Bidhaa
Connection cover, application: sensor/actuator box, number of plug-in stations: 4, occupancy of plug-in stations: Double, status indication: No; Main cable connection: 180° plug-in screw connection, P
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
Dimensional drawing
