SACB-8/16-L-3,0PUR SCO P

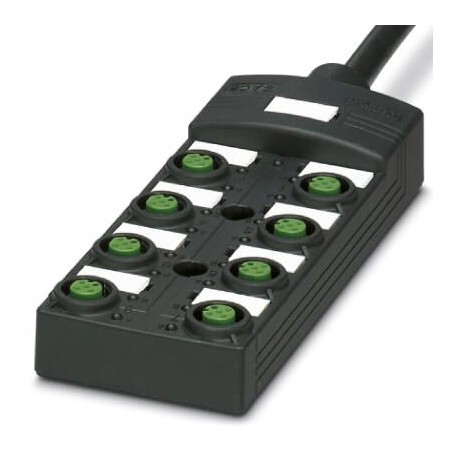

SACB-8/16-L- 3,0PUR SCO P 1097629 PHOENIX CONTACT Sensor/actuator box, application: Standard, connection met..
$0.00USD
3053 kwenye hisa
Vipimo Muhimu
GTIN:4055626939575
(Kebo):No hazardous substances above threshold values
Ufunguo wa kuagiza:1097629
(Jumla):-5 °C ... 80 °C (for flexible installation)
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4055626939575 |
| (Kebo) | No hazardous substances above threshold values |
| Ufunguo wa kuagiza | 1097629 |
| (Jumla) | -5 °C ... 80 °C (for flexible installation) |
| (Michoro) | Unused slots are to be sealed off prior to commissioning. Suitable sealing elements are to be found under "Accessories". |
| Kitengo cha kufungasha | 1 pc |
| Dokezo (Michoro) | NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g. by using cable ties. |
| Nchi ya asili | DE (Germany) |
| ETIM 6.0 (eCl@ss) | EC002585 |
| ETIM 7.0 (eCl@ss) | EC002585 |
| RoHS ya China (Kebo) | Environmentally friendly use period: unlimited = EFUP-e |
| Nambari ya ushuru maalum | 85444290 |
| (Hali ya mazingira) | Status display I/O Yellow LED |
| (Nyenzo za insulation) | 1-8 / 5 (PE) = GN/YE |
| Kiasi cha chini cha oda | 25 pc |
| Volti iliyokadiriwa (Michoro) | 24 V DC |
| Number of slots (Drawings) | 8 |
| (Viwango na Kanuni) | -5 °C ... 80 °C (cable, flexible installation) |
| eCl@ss 9.0 (Uainishaji) | 27440108 |
| Kiwango cha ulinzi (Jumla) | IP65 |
| Mchoro wa vipimo (Michoro) | |
| Idadi ya nafasi (Michoro) | 5 |
| Total rated current (Drawings) | 12 A |
| Uzito kwa Kipande (bila kujumuisha upakiaji) | 0.000 g |
| Aina ya kebo (Viwango na Kanuni) | PUR/PVC black |
| Uchunguzi wa eneo (Hali za mazingira) | Supply voltage Green LED |
| Max. operating voltage Umax (Drawings) | 30 V DC |
| Rangi za waya (Viwango na Kanuni) | brown, blue, green/yellow, white, green, yellow, gray, pink, red, black, violet, gray/pink, red/blue, white/green, brown/green, white/yellow, yellow/brown, white/gray, gray/brown |
| Uzito wa kebo (Viwango na Kanuni) | 183.7 kg/km |
| Mtindo wa UL AWM (Viwango na Kanuni) | 20549 (80°C/300 V) |
| Halijoto ya mazingira (uendeshaji) (Jumla) | -25 °C ... 80 °C |
| Mzunguko wa jumla (Viwango na Kanuni) | Wires twisted in layers |
| Standards/specifications (Pin assignment) | M12 connector IEC 61076-2-101 |
| Mstari wa ishara wa AWG (Viwango na Kanuni) | 20 |
| Njia ya kupita (Viwango na Kanuni) | 2 m |
| Kiwango cha kupita (Viwango na Kanuni) | 2 m/s |
| Ugavi wa umeme wa AWG (Viwango na Kanuni) | 17 |
| Upinzani wa moto (Viwango na Kanuni) | according to DIN EN 50265 |
| Urefu wa kebo (Kipengele cha uchunguzi wa ndani) | 3 m |
| Upinzani mwingine (Viwango na Kanuni) | Highly resistant to acids, alkaline solutions and solvents |
| Sensor/actuator connection system (Drawings) | M12-SPEEDCON-socket |
| Current carrying capacity per slot (Drawings) | 4 A |
| Upinzani dhidi ya mafuta (Viwango na Kanuni) | according to VDE 0472 Part 803 |
| Kifupisho cha kebo (Viwango na Kanuni) | LiYY11Y-HF |
| Nyenzo ya kondakta (Viwango na Kanuni) | Bare Cu litz wires |
| Mbinu ya muunganisho (Kipengele cha utambuzi wa ndani) | Fixed connection |
| Nyenzo ya pete ya O (data ya muunganisho wa kebo kuu) | NBR |
| Mali maalum (Viwango na Kanuni) | Silicone-free |
| Nyenzo ya mguso (Data kuu ya muunganisho wa kebo) | Cu alloy |
| Nyenzo ya makazi (Data kuu ya muunganisho wa kebo) | PBT |
| Volti ya majaribio, kebo (Viwango na Kanuni) | 2000 V |
| Flammability rating according to UL 94 (Drawings) | V0 |
| Ala ya nje, rangi (Viwango na Kanuni) | black RAL 9005 |
| Unene wa ala ya ndani (Viwango na Kanuni) | ≥ 0.15 mm |
| Nyenzo, ala ya ndani (Viwango na Kanuni) | PVC |
| Volti ya kawaida, kebo (Viwango na Kanuni) | 300 V |
| Unene wa ala ya nje (Viwango na Kanuni) | ≥ 0.76 mm |
| Ala ya nje, nyenzo (Viwango na Kanuni) | PUR |
| Sehemu ya msalaba ya kondakta (Viwango na Kanuni) | 16x 0.5 mm² (Signal line) |
| Current carrying capacity per I/O signal (Drawings) | 2 A |
| Idadi ya mizunguko ya kupinda (Viwango na Kanuni) | 1500000 |
| Schematic diagramM12 slot, socket, 5-pos. (Drawings) | |
| Aina ya kebo (kifupisho) (Viwango na Kanuni) | PUR |
| Kipenyo cha kebo ya nje D (Viwango na Kanuni) | 10.5 mm ±0.2 mm |
| Nyenzo ya mtoa huduma wa mawasiliano (Data kuu ya muunganisho wa kebo) | PA |
| Nyenzo ya uso wa mguso (Data kuu ya muunganisho wa kebo) | gold-plated |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Mgawo wa PIN) | V0 |
| Insulation ya kondakta wa nyenzo (Viwango na Kanuni) | PVC |
| Nyenzo ya sleeve yenye nyuzi (Data kuu ya muunganisho wa kebo) | PBT |
| Halijoto ya mazingira (uendeshaji) (Viwango na Kanuni) | -40 °C ... 90 °C (cable, fixed installation) |
| Mstari wa ishara ya muundo wa kondakta (Viwango na Kanuni) | 28x 0.15 mm |
| Nyenzo ya uzani wa ukingo (Data kuu ya muunganisho wa kebo) | PUR |
| Kipenyo cha msingi ikijumuisha insulation (Viwango na Kanuni) | 1.5 mm ±0.1 mm (Signal line) |
| Nafasi/nafasi = Rangi ya waya au muunganisho (Nyenzo ya insulation) | 1 / 4 (A) = WH |
| Muundo wa kondakta, usambazaji wa volteji (Viwango na Kanuni) | 56x 0.15 mm |
| Kiwango cha chini cha kuinama, usakinishaji usiobadilika (Viwango na Kanuni) | 7.5 x D |
| Kiwango cha chini cha kuinama, usakinishaji unaonyumbulika (Viwango na Kanuni) | 10 x D |
| Kebo ya kukaza kipima nafasi ya torque/kiendeshaji (Kipengele cha uchunguzi wa ndani) | 0.4 Nm |
| Kiwango cha chini cha radius ya kupinda, matumizi ya mnyororo wa kuburuta (Viwango na Kanuni) | 10 x D |
| Kukaza torque ya skrubu ya kupachika kwa ajili ya kurekebisha sehemu ya ndani (Kipengele cha uchunguzi wa ndani) | 0.5 Nm |
Maelezo ya Bidhaa
Sensor/actuator box, application: Standard, connection type: SPEEDCON M12 female connector Plastic, number of plug-in stations: 8, number of poles: 5, coding: A - standard, occupancy of plug-in statio
