SAC-8P-25,0-285/FS SH SCO

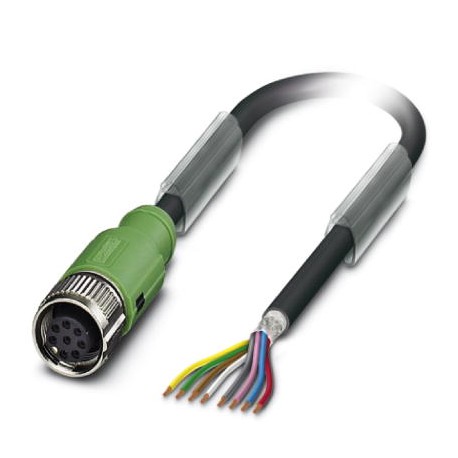

SAC-8P-25,0-285/FS SH SCO 1413494 PHOENIX CONTACT Sensor/actuator cable, 8-pos., PUR, halogen-free, RAL 7001..
$0.00USD
4225 kwenye hisa
Vipimo Muhimu
GTIN:4055626000831
(Kebo):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Ufunguo wa kuagiza:1413494
(Michoro):
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4055626000831 |
| (Kebo) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Ufunguo wa kuagiza | 1413494 |
| (Michoro) | |
| Kitengo cha kufungasha | 1 |
| ETIM 4.0 (eCl@ss) | EC001855 |
| ETIM 5.0 (eCl@ss) | EC001855 |
| ETIM 6.0 (eCl@ss) | EC001855 |
| ETIM 7.0 (eCl@ss) | EC001855 |
| RoHS ya China (Kebo) | Environmentally Friendly Use Period = 50 |
| REAch SVHC (Kebo) | |
| UNSPSC 13.2 (ETIM) | 31251501 |
| UNSPSC 19.0 (ETIM) | 31251501 |
| UNSPSC 20.0 (ETIM) | 31251501 |
| UNSPSC 21.0 (ETIM) | 31251501 |
| Nambari ya ushuru maalum | 85444290 |
| (Hali ya mazingira) | 30 V DC |
| Nyenzo za mawasiliano (Jumla) | CuZn |
| Length of cable (Drawings) | 25 m |
| Nyenzo, knurls (Jumla) | Zinc die-cast, nickel-plated |
| Nyenzo ya kuziba (Jumla) | NBR |
| Usimbaji (Hali za mazingira) | A - standard |
| (Viwango na Kanuni) | -40 °C ... 80 °C (cable, flexible installation) |
| eCl@ss 4.0 (Uainishaji) | 27060300 |
| eCl@ss 4.1 (Uainishaji) | 27060300 |
| eCl@ss 5.0 (Uainishaji) | 27061800 |
| eCl@ss 5.1 (Uainishaji) | 27061800 |
| eCl@ss 6.0 (Uainishaji) | 27279200 |
| eCl@ss 7.0 (Uainishaji) | 27279218 |
| eCl@ss 8.0 (Uainishaji) | 27279218 |
| eCl@ss 9.0 (Uainishaji) | 27060311 |
| Nyenzo ya mwili wa mshiko (Jumla) | TPU, hardly inflammable, self-extinguishing |
| Nyenzo za mtoa huduma za mawasiliano (Jumla) | TPU GF |
| Nyenzo ya uso wa mguso (Jumla) | Ni/Au |
| Volti iliyokadiriwa (Hali ya mazingira) | 30 V AC |
| Onyesho la hali (Hali ya mazingira) | No |
| Kulinda (Viwango na Kanuni) | Tinned copper braided shield |
| Aina ya kebo (Viwango na Kanuni) | PUR, gray, shielded |
| Rangi za waya (Viwango na Kanuni) | white-brown, green-yellow, gray-pink, blue-red |
| Kuongeza Kasi (Viwango na Kanuni) | 2 m/s² |
| Kiwango cha uchafuzi wa mazingira (Hali ya mazingira) | 3 |
| Idadi ya nafasi (Hali ya mazingira) | 8 |
| Mzunguko wa jumla (Viwango na Kanuni) | 4 pairs for core |
| Kategoria ya volteji kupita kiasi (Hali za mazingira) | II |
| Jozi zilizosokotwa (Viwango na Kanuni) | 2 cores to the pair |
| Radi ya kupinda (Viwango na Kanuni) | 100 mm |
| Upinzani wa insulation (Hali ya mazingira) | ≥ 100 MΩ |
| Mstari wa ishara wa AWG (Viwango na Kanuni) | 24 |
| Mkondo uliokadiriwa kwa 40°C (Hali ya mazingira) | 2 A |
| Njia ya kupita (Viwango na Kanuni) | 1.2 m |
| Kiwango cha kupita (Viwango na Kanuni) | 1.4 m/s |
| Halijoto ya mazingira (uendeshaji) (Vipimo) | -25 °C ... 90 °C (Plug / socket) |
| Upinzani mwingine (Viwango na Kanuni) | ozone and UV resistant |
| Upinzani dhidi ya mafuta (Viwango na Kanuni) | very good oil and chemical resistance |
| Kifupisho cha kebo (Viwango na Kanuni) | Li12YC11Y-HF |
| Nyenzo ya kondakta (Viwango na Kanuni) | Bare Cu litz wires |
| Volti ya majaribio, kebo (Viwango na Kanuni) | 1200 V |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Jumla) | HB |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Nyenzo) | HB |
| Upinzani wa insulation (Viwango na Kanuni) | ≥ 100 MΩ*km |
| Ala ya nje, rangi (Viwango na Kanuni) | gray RAL 7001 |
| Volti ya kawaida, kebo (Viwango na Kanuni) | 350 V |
| Ala ya nje, nyenzo (Viwango na Kanuni) | PUR |
| Sehemu ya msalaba ya kondakta (Viwango na Kanuni) | 4x 2x 0.25 mm² (Signal line) |
| Kifuniko cha ngao ya macho (Viwango na Kanuni) | 85 % |
| Idadi ya mizunguko ya kupinda (Viwango na Kanuni) | 3000000 |
| Aina ya kebo (kifupisho) (Viwango na Kanuni) | 285 |
| Kipenyo cha kebo ya nje D (Viwango na Kanuni) | 7.6 mm ±0.2 mm |
| Stripping length of the free conductor end (Drawings) | 50 mm |
| Insulation ya kondakta wa nyenzo (Viwango na Kanuni) | PES |
| Halijoto ya mazingira (uendeshaji) (Viwango na Kanuni) | -50 °C ... 80 °C (cable, fixed installation) |
| Mstari wa ishara ya muundo wa kondakta (Viwango na Kanuni) | 32x 0.10 mm |
| Circuit diagramContact assignment of the M12 socket (Drawings) | |
| Dimensional drawingM12 x 1 socket, straight, shielded (Drawings) | |
| Kiwango cha chini cha kuinama, usakinishaji unaonyumbulika (Viwango na Kanuni) | 7.5 x D |
Maelezo ya Bidhaa
Sensor/actuator cable, 8 poles, PUR, halogen-free, grey RAL 7001, shielded, free cable end, in straight M12 SPEEDCON female connector, A-coated, cable length: 25 m
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
Dimensional drawingM12 x 1 socket, straight, shielded
